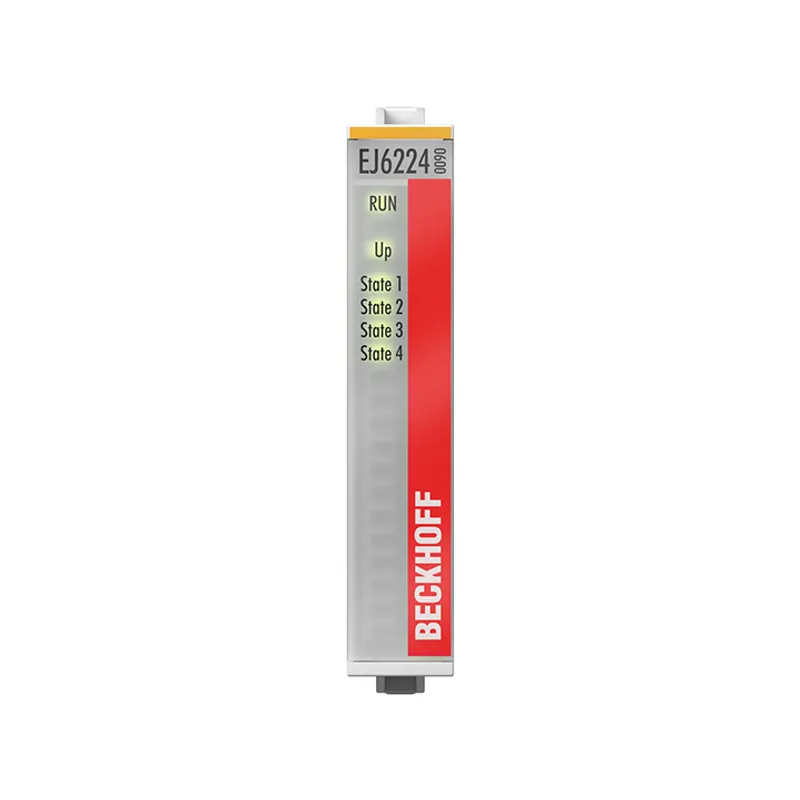

Beckhoff EJ6224-0090
EtherCAT plug-in module, 4-channel communication interface, IO-Link, master, TwinSAFE SC
- MPN
- EJ6224-0090
- Category
- EJ6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ6224-0090?
The EJ6224-0090 EtherCAT plug-in module is an IO-Link master and enables connection of up to four IO-Link devices. IO-Link devices are actuators, sensors or a combination of both. The connection between the module and the device is a point-to-point
Specifications
Specifications
| Technology | IO-Link |
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Specification version | IO-Link V1.1 |
| IO-Link interfaces | 4 |
| Supply voltage electronics | 24 V DC (via E-bus and signal distribution board) |
| Cable length | max. 20 m |
| Data transfer rates | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| Supply current for devices | 500 mA per device |
| Current consumption E-bus | typ. 110 mA |
| Special features | TwinSAFE SC, IO-Link configuration tool integrated in TwinCAT: IO-Link sensor scan, comfortable sensor parameter handling, sensor description file finder |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Weight | approx. 30 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Approvals/markings | CE |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 2, 5 |
| Locking | latching lug in circuit board cut-out |
| Dimensions (W x H x D) | 12 mm x 66 mm x 55 mm |
