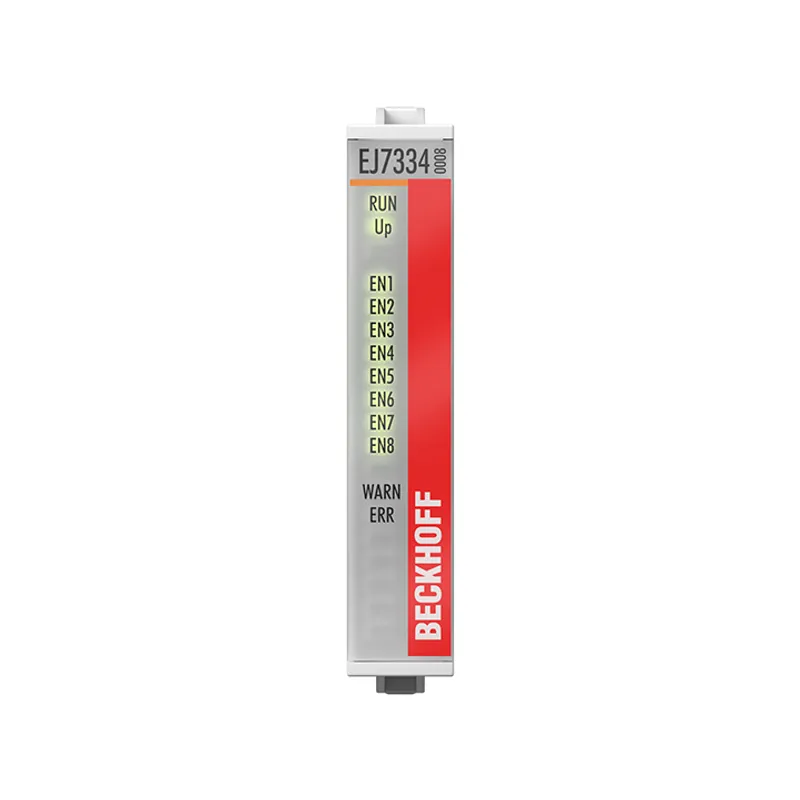

Beckhoff EJ7334-0008
EtherCAT plug-in module, 4-channel motion interface, DC motor, 24 V DC, 3 A
- MPN
- EJ7334-0008
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ7334-0008?
The EJ7334-0008 EtherCAT plug-in module enables direct operation of four DC motors and is electrically isolated from the E-bus. The speed is preset by a 16 bit value from the automation unit. The output stage is overload-proof. If direction reversal is
Specifications
Specifications
| Technology | compact drive technology |
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Number of channels | 4/8 |
| Number of outputs | 1 x DC motor per channel |
| Load type | DC brush motors, inductive > 1 mH |
| Supply voltage power | 8…24 V DC (via distribution board) |
| Supply voltage electronics | 24 V DC (via signal distribution board) |
| Output current | ∑ 8.0 A, max. 3.0 A per channel (0…+55 °C) |
| PWM clock frequency | 16 kHz |
| Duty factor | 0…98% (voltage-controlled) |
| Resolution | max. 10 bit current, 16 bit speed |
| Auxiliary power current | typ. 20 mA + motor current |
| Current consumption E-bus | typ. 150 mA |
| Distributed clocks | – |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | up to eight motors can be operated unidirectionally |
| Weight | approx. 30 g |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 1, 8 |
| Locking | latching lug in circuit board cut-out |
| Dimensions (W x H x D) | 12 mm x 66 mm x 55 mm |
EJ7334-0008: frequently asked questions
When can EJ7334-0008 be shipped?
EJ7334-0008 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJ7334-0008 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJ7334-0008 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJ7334-0008, subject to availability and destination.
