Beckhoff CX2100-0904

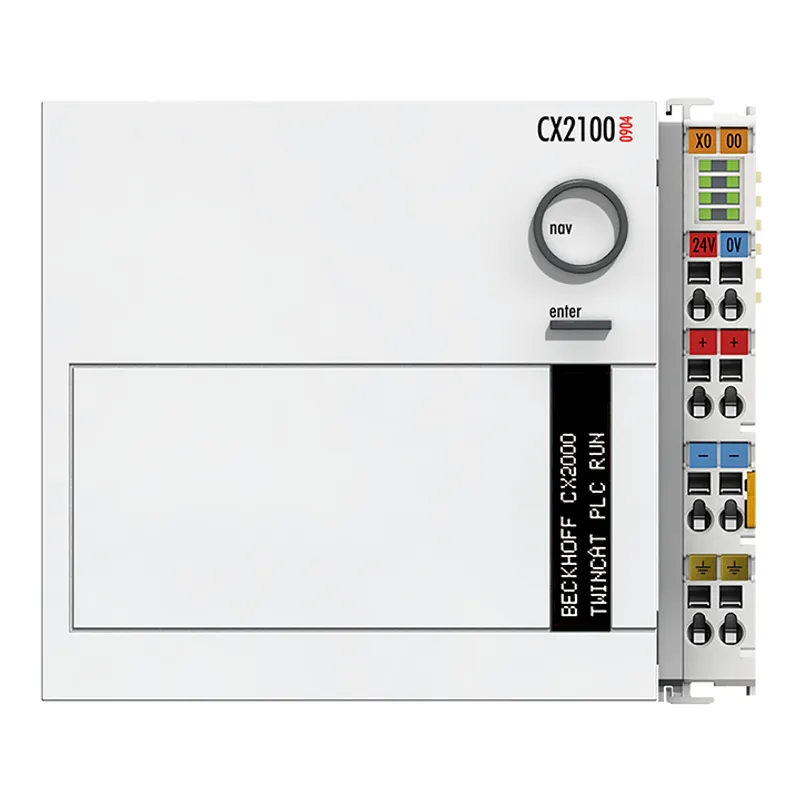

Power supply unit with internal UPS for CX2033

MPN: CX2100-0904
Category: CX20x3 | AMD Ryzen™

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CX2100-0904?

The CX2100-0904 power supply and UPS module is used for supplying power to the components (CPU modules, system and extension modules) of a CX2033 system. The power supply module is controlled via TwinCAT. An FSTN LC display with 2 x 16 characters and a

Specifications

Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
Max. power output	45 W
I/O connection	E-bus or K-bus, automatic recognition
Current supply E-bus/K-bus	2 A
UPS	capacitively integrated
Capacity	75 As
Connection type	spring-loaded technique (adapter terminal)
Display	FSTN display 2 lines x 16 characters of text, illuminated
Diagnostics LED	1 x PWR, 1 x I/O Run, 1 x I/O Err
Max. power loss	3.5 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Dimensions (W x H x D)	118 mm x 100 mm x 91 mm
Weight	approx. 1025 g
Storage temperature	-25…+60°C
Operating temperature	-25…+50°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL

CX2100-0904: frequently asked questions

When can CX2100-0904 be shipped?

CX2100-0904 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX2100-0904 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX2100-0904 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2100-0904, subject to availability and destination.
