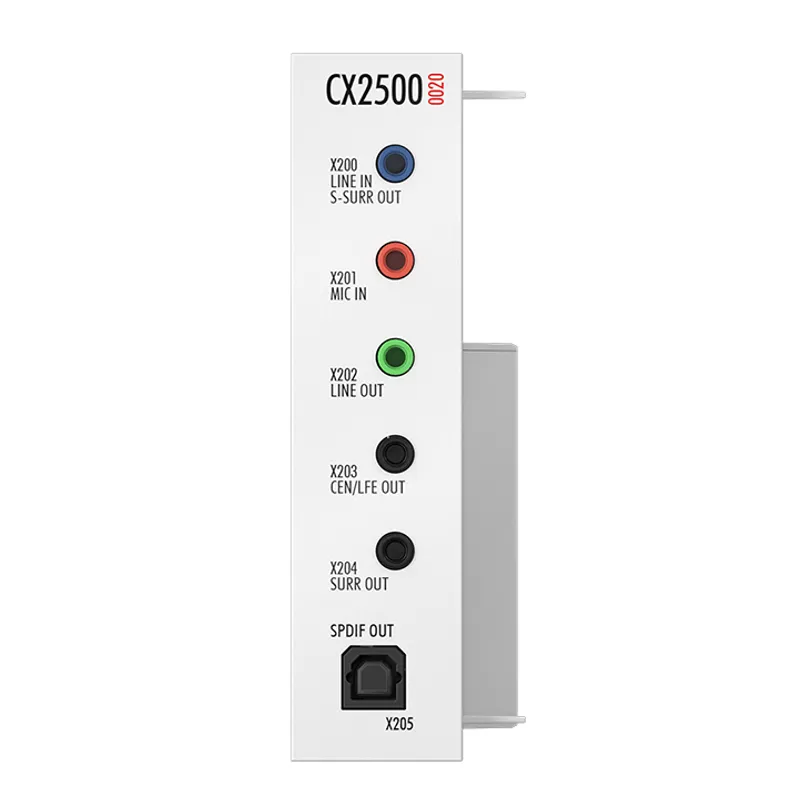

Beckhoff – CX2500-0020 Audio interface for CX20x0
Discontinued by Beckhoff — we can still source the original CX2500-0020 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IPC service products (discontinued) |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the CX2500-0020 now that it is discontinued?
Yes. Beckhoff has discontinued the CX2500-0020, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CX2500-0020 be shipped?
CX2500-0020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CX2500-0020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CX2500-0020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2500-0020, subject to availability and destination.
The system modules for the CX20x0 family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. One module can be connected. The CX2500-0020 audio module (only for CX20x0) has jack plugs
Beckhoff CX2500-0020 — Audio interface for CX20x0. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Interfaces | Line IN, Line OUT, Mic IN, 7.1, SPDIF |
| Type of connection | 3.5 mm socket for jack plug, TOSLINK socket |
| Power supply | via system bus (through CX2100-0xxx power supply modules) |
| Dimensions (W x H x D) | 24 mm x 99 mm x 54.5 mm |
| Weight | approx. 180 g |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
