CX20x3 | AMD Ryzen™ Parts
Beckhoff
CX2550-0279USB Extender 2.0 Tx for CX20xx (CP29xx-0000, CP39xx-0000, CP69xx-xxxx-0010, CP79xx-xxxx-0010)
Compare CX20x3 | AMD Ryzen™
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | UPS OCT-capable | Dimensions (W x H x D) | Weight | Storage temperature | Operating temperature |
|---|---|---|---|---|---|
| CX2100-0022 | yes | 60 mm x 100 mm x 91 mm | approx. 660 g | -25…+85°C | -25…+60°C |

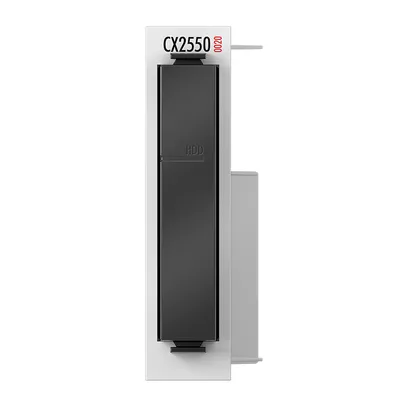

| CX2550-0020 | — | 24 mm x 99 mm x 125 mm | approx. 290 g (without medium) | -40…+85°C | -25…+60°C |
| CX2550-0010 | — | 24 mm x 99 mm x 91 mm | approx. 280 g (without medium) | -40…+85°C | -25…+60°C |
| CX2550-0279 | — | 24 mm x 99 mm x 54.5 mm | approx. 190 g | -40…+85°C | -25…+60°C |

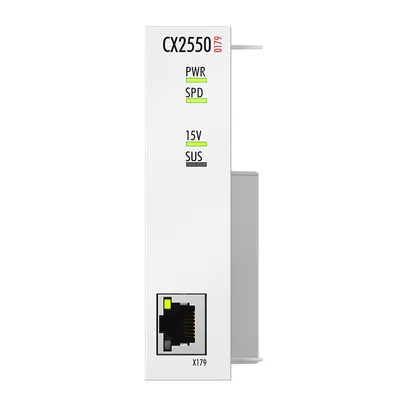

| CX2550-0179 | — | 24 mm x 99 mm x 54.5 mm | approx. 190 g | -40…+85°C | -25…+60°C |
| CX2100-0014 | no | 60 mm x 100 mm x 91 mm | approx. 550 g | -40…+85°C | -25…+60°C |

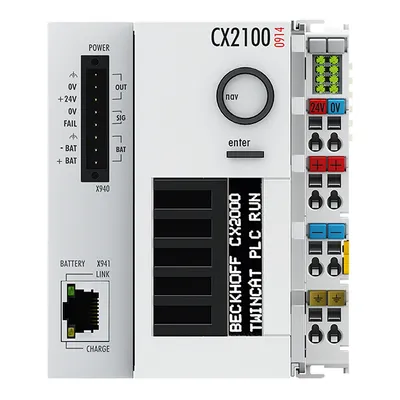

| CX2100-0914 | no | 84 mm x 100 mm x 91 mm | approx. 695 g | -40…+85°C | -25…+60°C |

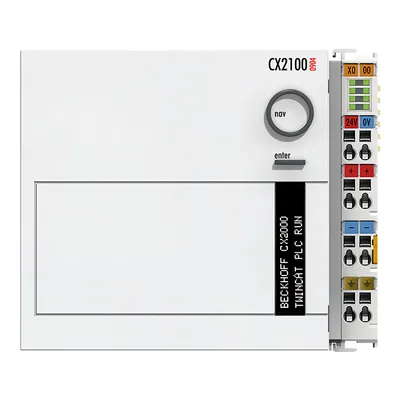

| CX2100-0904 | no | 118 mm x 100 mm x 91 mm | approx. 1025 g | -25…+60°C | -25…+50°C |
| CX2100-0004 | no | 40 mm x 100 mm x 91 mm | approx. 375 g | -40…+85°C | -25…+60°C |
| CX2100-0024 | yes | 60 mm x 100 mm x 91 mm | approx. 650 g | -25…+85°C | -25…+60°C |
| CX2033 | yes (depending on power supply unit) | 144 mm x 99 mm x 91 mm | approx. 1165 g | -40…+85°C | -25…+60°C |
| CX2043 | yes (depending on power supply unit) | 144 mm x 99 mm x 91 mm | approx. 1230 g | -40…+85°C | -25…+60°C |
| CX2500-0021 | — | 24 mm x 99 mm x 54.5 mm | approx. 180 g | -40…+85°C | -25…+60°C |
Common to all listed parts
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
