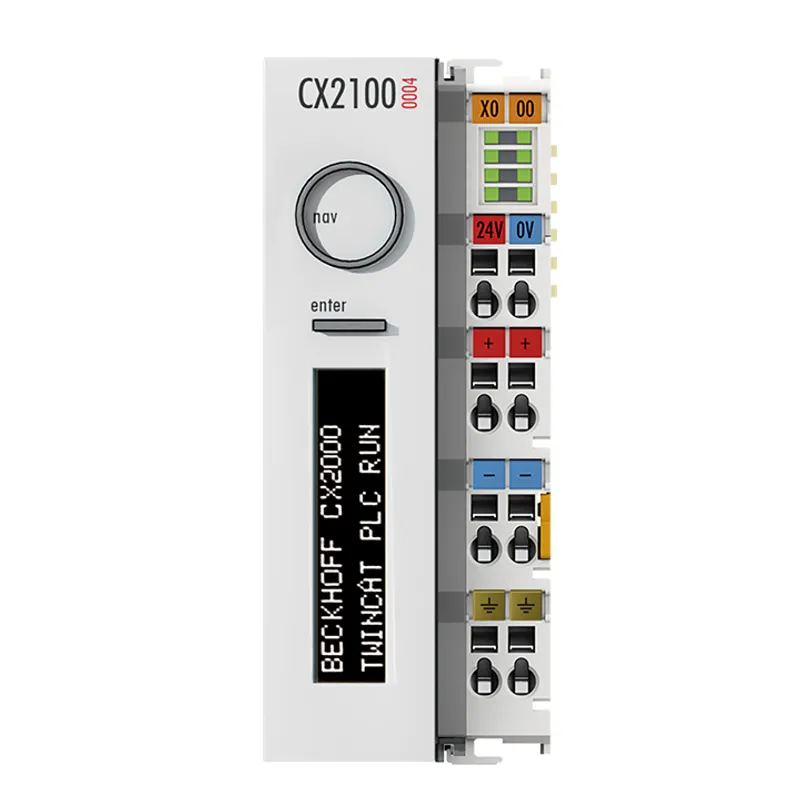

Power supply unit for CX2033, 45 W
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CX20x3 | AMD Ryzen™ |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CX2100-0004 be shipped?
CX2100-0004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CX2100-0004 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CX2100-0004 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2100-0004, subject to availability and destination.
The CX2100-0004 power supply module is used for supplying power to the components (CPU modules, system and extension modules) of a CX2033 system. The power supply module is controlled via TwinCAT. An FSTN LC display with 2 x 16 characters and a selector
Specifications
Specifications
| Power supply | 24 V DC (-15%/+20%) |
| UPS OCT-capable | no |
| Max. power output | 45 W |
| I/O connection | E-bus or K-bus, automatic recognition |
| Current supply E-bus/K-bus | 2 A |
| UPS | – |
| Capacity | – |
| Connection type | spring-loaded technique (adapter terminal) |
| Display | FSTN display 2 lines x 16 characters of text, illuminated |
| Diagnostics LED | 1 x PWR, 1 x I/O Run, 1 x I/O Err |
| Max. power loss | 3.5 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Dimensions (W x H x D) | 40 mm x 100 mm x 91 mm |
| Weight | approx. 375 g |
| Storage temperature | -40…+85°C |
| Operating temperature | -25…+60°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
