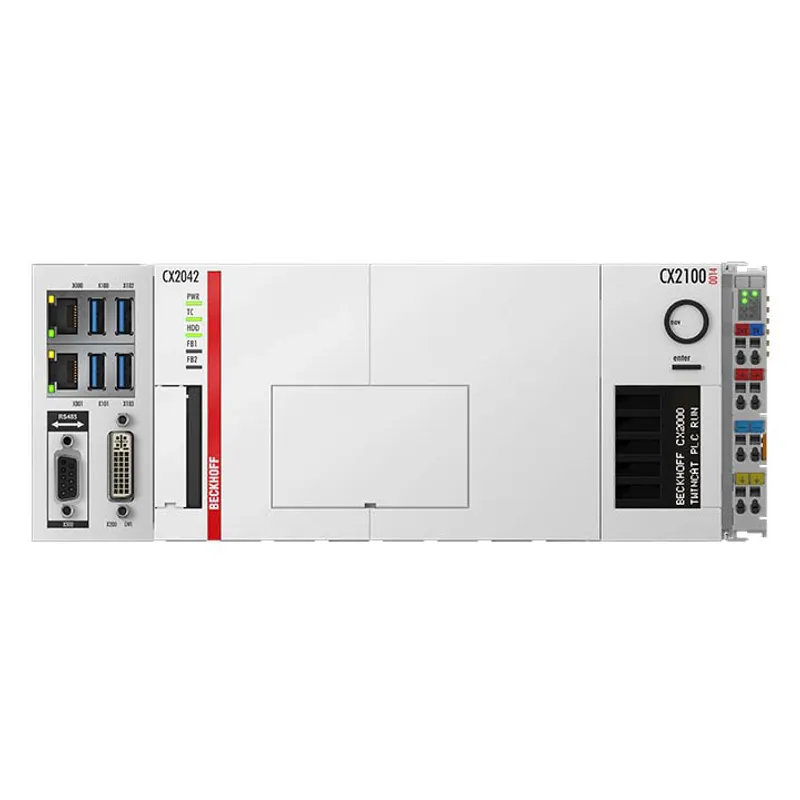

Beckhoff CX2042

Embedded PC with Intel® Xeon® D-1527

MPN: CX2042
Category: CX20x2 | Intel® Xeon® D

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff CX2042?

The CX2042 has an Intel® Xeon® CPU with a clock rate of 2.2 GHz (four cores). A fan with ball bearings and speed monitoring is integrated into the basic CPU module. In addition to the CPU, the basic module also contains the main memory with a size of

Specifications

Processor	Intel® Xeon® D-1527 2.2 GHz
Number of cores	4
Graphic	AMD E8860, 2 GB GDDR5
Flash memory	slot for CFast card, card not included
Main memory	8 GB DDR4 RAM (expandable ex factory to 64 GB)
Interfaces	2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 3.0, 1 x optional interface
Cooling	integrated fan with ball bearings and speed monitoring
Diagnostics LED	1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock	internal battery-backed clock for time and date (battery exchangeable)
Operating system	Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD
Control software	TwinCAT 3 runtime (XAR)
I/O connection	via power supply module (E-bus or K-bus, automatic recognition)
Power supply	24 V DC (-15%/+20%)
UPS OCT-capable	no
NOVRAM	128 kB
Max. power consumption	95 W
Weight	approx. 1650 g
Dimensions (W x H x D)	204 mm x 99 mm x 91 mm
Relative humidity	95%, no condensation
Operating temperature	-25…+50°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL
TwinCAT 3 platform level	High Performance (70); please see here for an overview of all the TwinCAT 3 platform level
