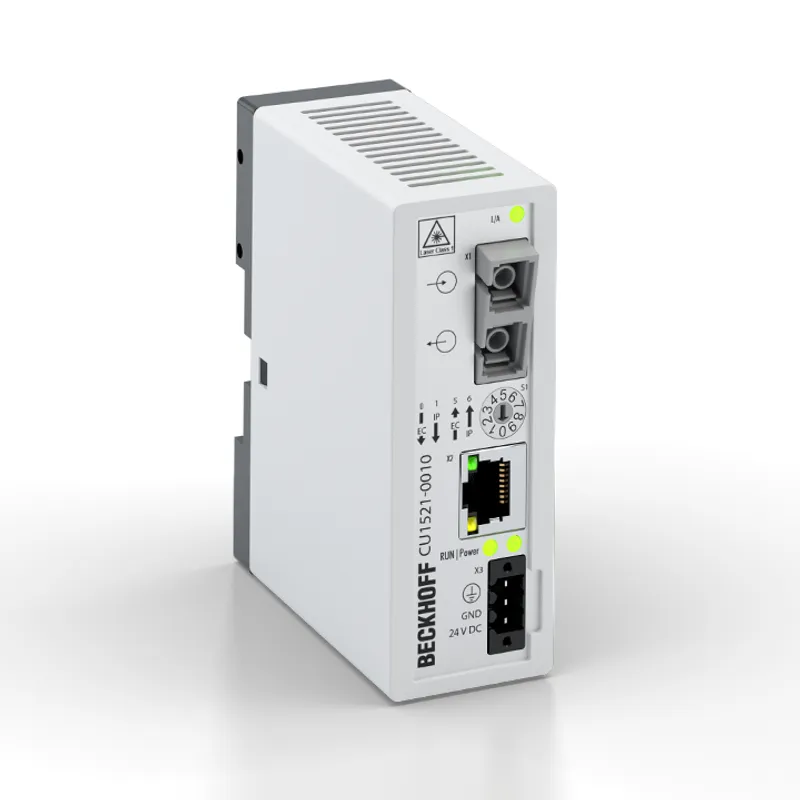

Infrastructure, media converter, Ethernet/EtherCAT, 100 Mbit/s, 24 V DC, fiber optic single-mode
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EtherCAT-Komponenten |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CU1521-0010 be shipped?
CU1521-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CU1521-0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CU1521-0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CU1521-0010, subject to availability and destination.
The EtherCAT-capable CU1521 for Industrial Fast Ethernet/100 Mbit/s serves as media converter from optical fiber to copper and vice versa. The CU1521 is suitable for multi-mode, the CU1521-0010 for single-mode optical fiber and therefore significantly
Specifications
Specifications
| Task within EtherCAT system | media transition from RJ45 copper physics to single-mode fiber optic and back |
| Data transfer medium | single-mode glass fiber 9/125 µm (SM); Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Bus interface | 1 x SC Duplex; 1 x RJ45 |
| Distance between stations | max. 20,000 m (100BASE-FX); max. 100 m (100BASE-TX) |
| Protocol | EtherCAT |
| Delay | approx. 1 µs |
| Data transfer rates | 100 Mbit/s |
| Configuration | per rotary switch |
| Power supply | 24 (18…30) V DC, 3-pin connection (+, -, PE) |
| Dimensions (W x H x D) | 35 mm x 98.5 mm x 76.5 mm |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, UL |
