Beckhoff CP49xx-0020

Next multi-touch built-in Control Panel with DisplayPort/USB interface

MPN: CP49xx-0020
Category: CP49xx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

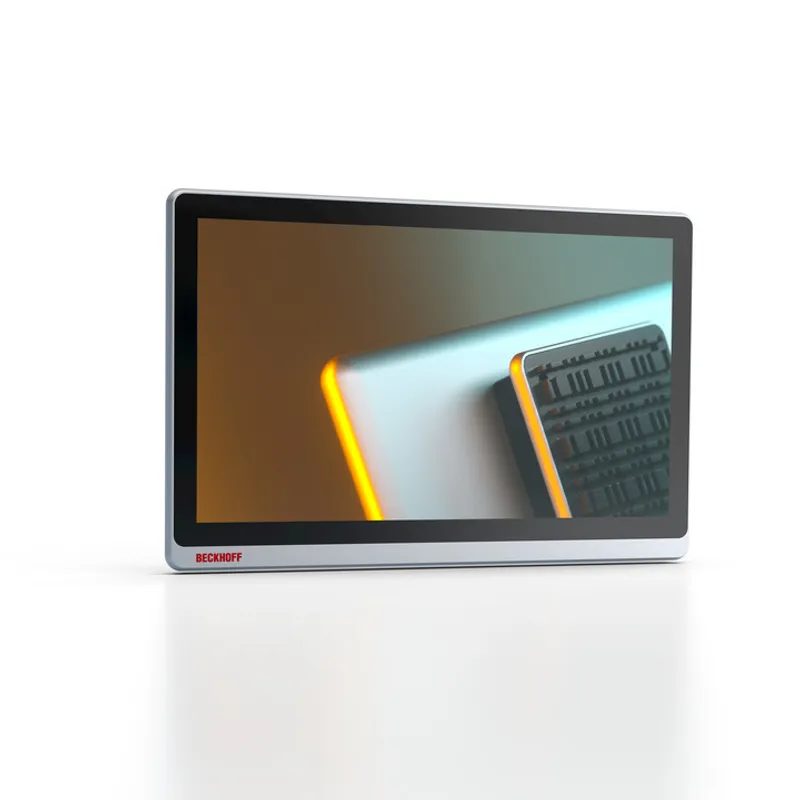

What is the Beckhoff CP49xx-0020?

For optimized operating concepts: The Next multi-touch panel generation The Next multi-touch panel series is advanced and cost-optimized, and further expands the diversity of Beckhoff's broad portfolio. As usual, this generation of control panels offers

Specifications

Device type	Multi-touch built-in Control Panel with DisplayPort/USB interface
Housing	aluminum housing with glass front
Display size/resolution	7" 800 x 480, 10.1" 1280 x 800, 15.6" 1920 x 1080, 18.5" 1920 x 1080, 21.5" 1920 x 1080 or 23.8" 1920 x 1080
Touch screen	multi-finger touch screen
Protection rating	front side IP65, rear side IP20
Interfaces	DisplayPort input, USB 3.0 input, 2 x USB 3.0 output
Operating temperature	0…55°C
Installation	clamping levers for fast installation
Power supply	24 V DC

CP49xx-0020: frequently asked questions

When can CP49xx-0020 be shipped?

CP49xx-0020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CP49xx-0020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CP49xx-0020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP49xx-0020, subject to availability and destination.
