Beckhoff CP46xx-0010

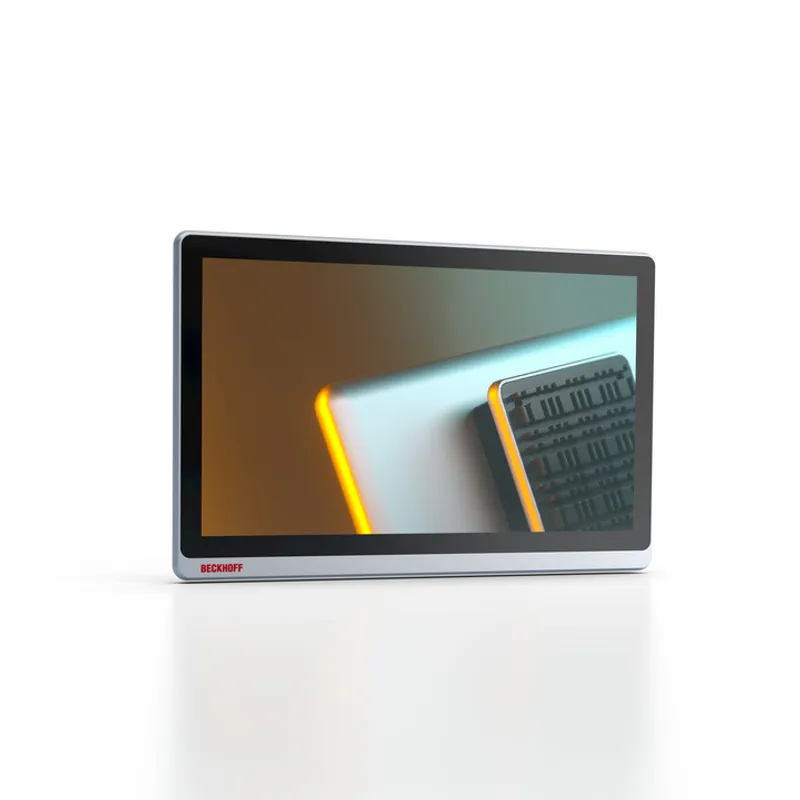

The fanless Next multi-touch built-in Panel PC

MPN: CP46xx-0010
Category: CP46xx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CP46xx-0010?

For optimized operating concepts: The Next multi-touch panel generation The Next multi-touch panel series is advanced and cost-optimized, and further expands the diversity of Beckhoff's broad portfolio. As usual, this generation of control panels offers

Specifications

Device type	Fanless multi-touch built-in Panel PC
Housing	aluminum housing with glass front
Slots for hard disk/flash	changeable 3D flash
Protection rating	front side IP65, rear side IP20
Operating temperature	0…55°C
Touch screen	multi-finger touch screen
Processor	Arm® processor with 6 cores, consisting of 2 cores Arm® Cortex®-A78, 2.0 GHz and 4 cores Arm® Cortex®-A55, 2.0 GHz (TC3: 30)
Memory	4 GB LPDDR4 RAM
Graphic	integrated in the processor
Ethernet	2 x 100/1000BASE-T on-board
Hard disks/flash	changeable 3D flash
Interfaces	2 x USB 3.2 Gen. 1
Power supply	24 V DC
Operating system	Beckhoff RT Linux®

CP46xx-0010: frequently asked questions

When can CP46xx-0010 be shipped?

CP46xx-0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CP46xx-0010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CP46xx-0010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP46xx-0010, subject to availability and destination.
