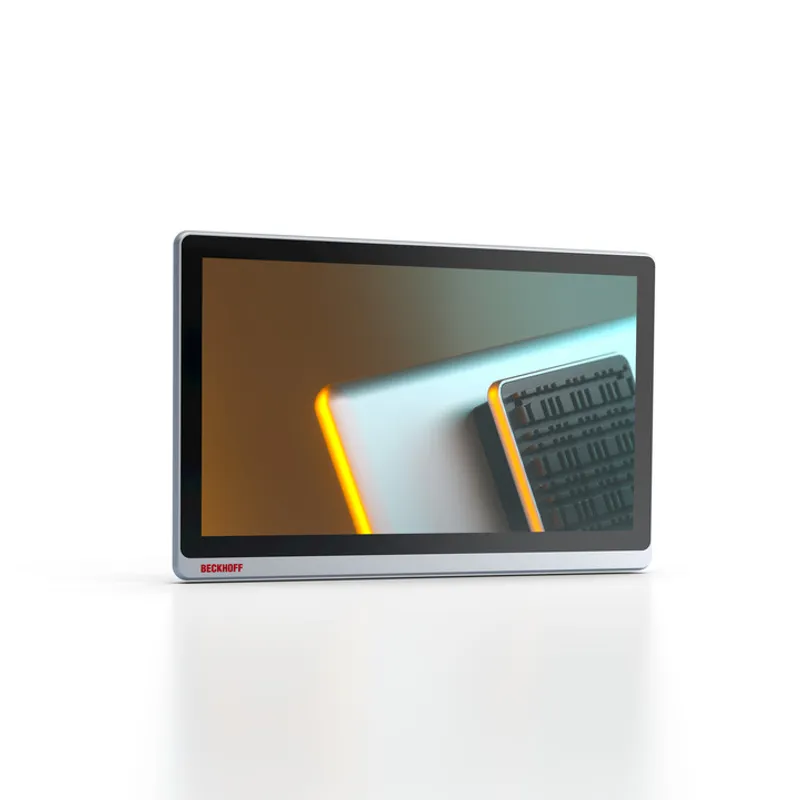

The fanless Next multi-touch built-in Panel PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP47xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP47xx-0040 be shipped?
CP47xx-0040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP47xx-0040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP47xx-0040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP47xx-0040, subject to availability and destination.
For optimized operating concepts: The Next multi-touch panel generation The Next multi-touch panel series is advanced and cost-optimized, and further expands the diversity of Beckhoff's broad portfolio. As usual, this generation of control panels offers
Specifications
Specifications
| Device type | Fanless multi-touch built-in Panel PC |
| Housing | aluminum housing with glass front |
| Slots for hard disk/flash | 1 slot for M.2 SSD |
| Protection rating | front side IP65, rear side IP20 |
| Operating temperature | 0…55°C |
| Touch screen | multi-finger touch screen |
| Processor | select from the option table |
| Memory | select from the option table |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000/2500BASE-T on-board |
| Hard disks/flash | select from the option table |
| Interfaces | 2 x USB 3.2 Gen. 1 |
| Power supply | 24 V DC |
| Operating system | – |
