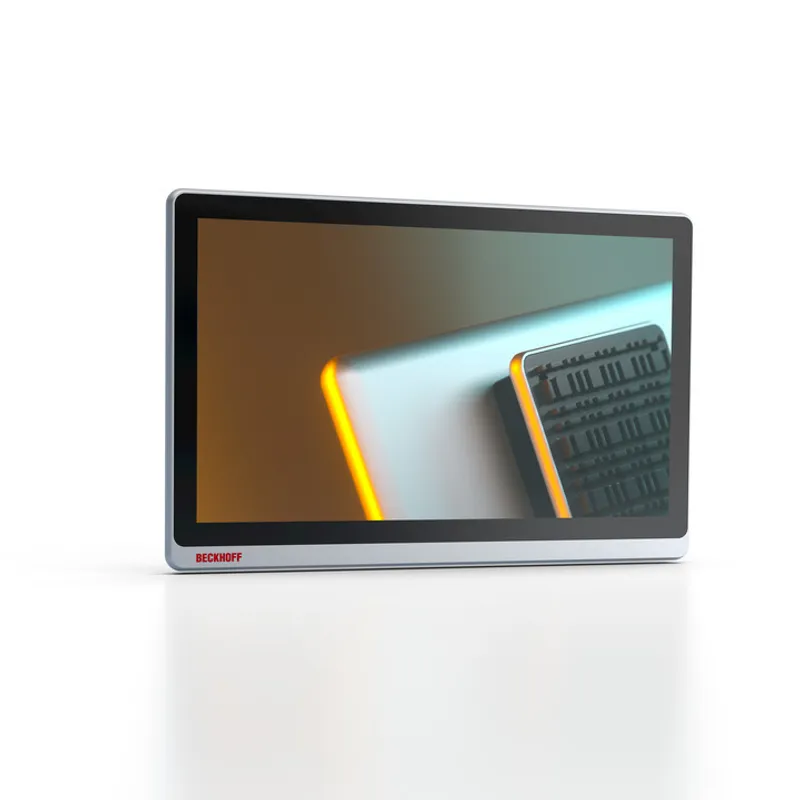

Next multi-touch built-in Control Panel with CP-Link 5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | CP49xx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CP49xx-0030 be shipped?
CP49xx-0030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CP49xx-0030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CP49xx-0030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CP49xx-0030, subject to availability and destination.
For optimized operating concepts: The Next multi-touch panel generation The Next multi-touch panel series is advanced and cost-optimized, and further expands the diversity of Beckhoff's broad portfolio. As usual, this generation of control panels offers
Specifications
Specifications
| Device type | Multi-touch built-in Control Panel with CP-Link 5 interface |
| Housing | aluminum housing with glass front |
| Touch screen | multi-finger touch screen |
| Protection rating | front side IP65, rear side IP20 |
| Connection technology | CP-Link 5 enables to connect the Control Panel at a distance of up to 100 m to the PC via a Cat.6A cable with either an integrated or separate 24 V DV power supply depending on the transmitter module. |
| Interfaces | RJ45 for CP-Link 5, 2 x USB 2.0 |
| Operating temperature | 0…50°C |
| Installation | clamping levers for fast installation |
| Power supply | 24 V DC |
