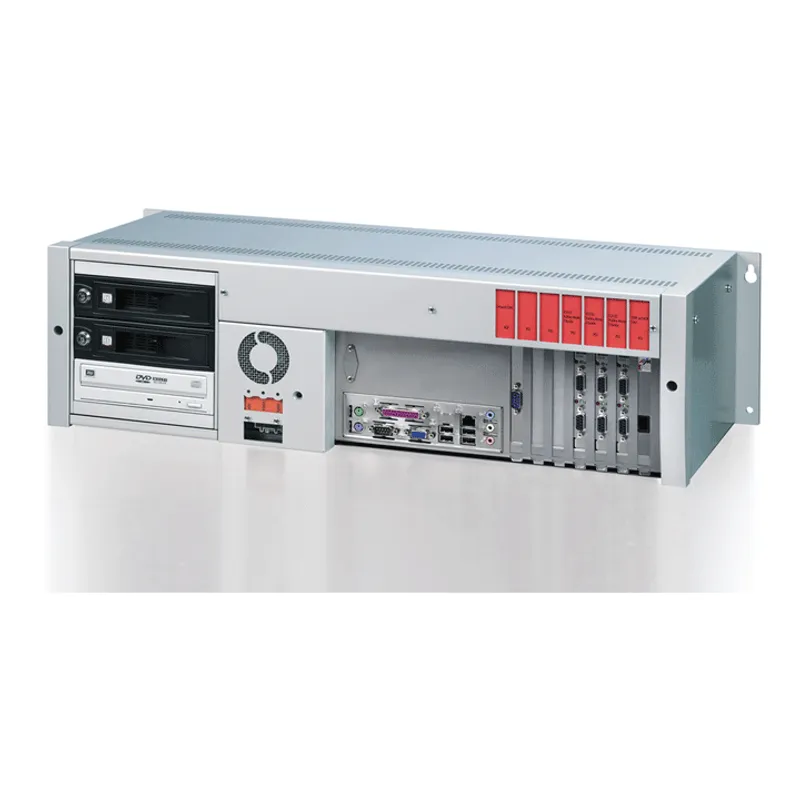

Beckhoff C6250-0080
Control cabinet Industrial PC
- MPN
- C6250-0080
Price and lead time confirmed within 1 business day
Discontinued by Beckhoff — we can still source the original C6250-0080 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff C6250-0080?
The control cabinet PC series C62xx is equipped with maximum performance class components: with Intel® Celeron®, Pentium® or Core™ i3/i5/i7 of the latest generation on an ATX motherboard. The PCs in the C62xx series are constructed according to a uniform
Beckhoff C6250-0080 — Control cabinet Industrial PC. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.
Specifications
Technical data
| Lifecycle | Service phase (discontinued, no longer in Beckhoff's product range) |
| Device type | Control cabinet PC |
| Housing | stainless steel based housing |
| Installation | mounting sheet for horizontal PC installation |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 19.8 kg (43.7 lbs) |
| Dimensions (W x H x D) | 680 x 184 x 270 mm (26.8" x 7.2" x 10.7") |
| Processor | Intel ® Celeron ® G3900 2.8 GHz, 2 cores (TC2, TC3: 50) |
| Motherboard | ATX motherboard for 6 th /7 th generation Intel ® Celeron ® , Pentium ® , Core™ i3/i5/i7 |
| PCIe ® slots | 2 x PCIe ® x1 and 2 x PCI™ for up to 220 mm long plug-in cards, 2 x PCIe ® x4 and 1 x PCIe ® x16 for up to 190 mm long plug-in cards |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB |
| Disk drive | – |
| Interfaces | 4 x USB 3.0, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse |
| Power supply | 100…240 V AC |
| Operating system | – |
C6250-0080: frequently asked questions
Can I still buy the C6250-0080 now that it is discontinued?
Yes. Beckhoff has discontinued the C6250-0080, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can C6250-0080 be shipped?
C6250-0080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6250-0080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6250-0080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6250-0080, subject to availability and destination.
