Fanless built-in Industrial PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C6515 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C6515-0080 be shipped?
C6515-0080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6515-0080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6515-0080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6515-0080, subject to availability and destination.

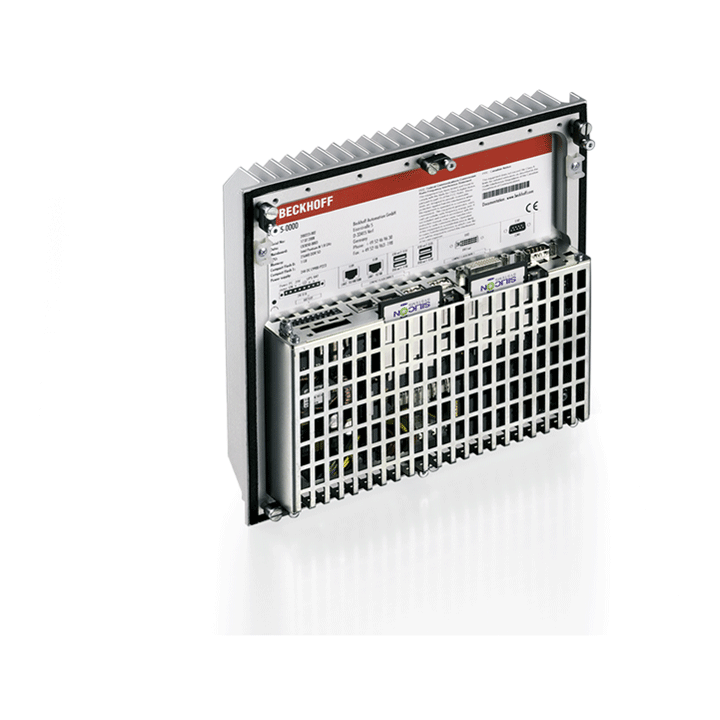

The C65xx Industrial PC series is designed to be installed in the panels of the control cabinet or in the rear panel of a control housing or console housing. The heat sink of the Industrial PC is fed to the outside through a suitable cut-out in the
Specifications
Specifications
| Device type | Fanless built-in Industrial PC with external cooling to be mounted in the back panel of a control housing or in the wall of a control cabinet |
| Slots for hard disk/flash | 2 slots for CFast |
| Cooling | passive through heat sink structure outside |
| Free space for air circulation | 20 cm (7.9") around the heat sink required |
| Protection rating | outside IP65, inside IP20 |
| Operating temperature | outside 0…45°C, inside 0…55°C |
| Weight of basic configuration | 3 kg (6.6 lbs) |
| Dimensions (W x H x D) | 240 x 230 x 81 mm (9.5" x 9.1" x 3.2") |
| Processor | Intel® Celeron® 6600HE 2.6 GHz base frequency, 2 cores (TC3: 50) |
| Motherboard | 3½-inch motherboard for 11th generation Intel® Celeron®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | – |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 1 x 100/1000/2500BASE-T and 1 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | 40 GB CFast card |
| Interfaces | 4 x USB 3.2 Gen. 2, 1 x RS232, 1 x DVI |
| Power supply | 24 V DC |
| Operating system | – |
