Beckhoff C6240-0080

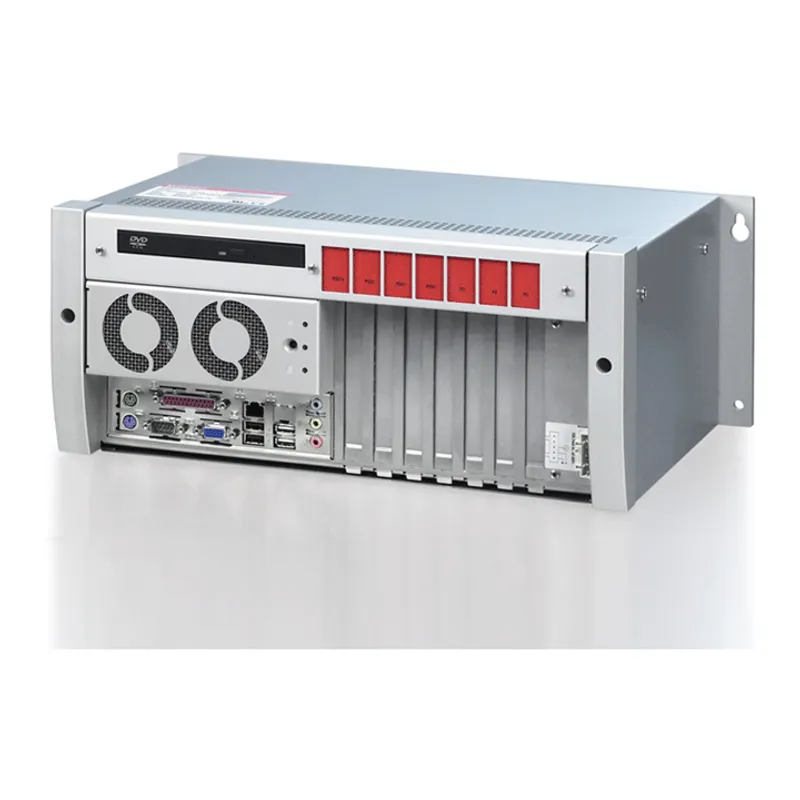

Control cabinet Industrial PC

MPN: C6240-0080
Category: C6240

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff C6240-0080?

The control cabinet PC series C62xx is equipped with maximum performance class components: with Intel® Celeron®, Pentium® or Core™ i3/i5/i7 of the latest generation on an ATX motherboard. The PCs in the C62xx series are constructed according to a uniform

Specifications

Device type	Control cabinet PC
Housing	stainless steel based housing
Installation	mounting sheet for horizontal PC installation
Protection rating	IP20
Operating temperature	0…55°C
Weight of basic configuration	12.3 kg (27.2 lbs)
Dimensions (W x H x D)	430 x 170 x 274 mm (16.9" x 6.7" x 10.8")
Processor	Intel® Celeron® G4900 3.1 GHz, 2 cores (TC3: 50)
Motherboard	ATX motherboard for 8th/9th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7
PCIe®/PCI™ slots	2 x PCIe® x1, 2 x PCIe® x4, 1 x PCIe® x16, 2 x PCI™ for up to 190 mm long plug-in cards
Memory	4 GB DDR4 RAM
Graphic	integrated in the processor
Ethernet	2 x 100/1000BASE-T on-board
RAID	on-board SATA RAID 1 controller
Hard disks/flash	hard disk, 3½-inch, 1 TB
Disk drive	–
Interfaces	4 x USB 3.1 Gen. 1, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse
Power supply	100…240 V AC
Operating system	–

C6240-0080: frequently asked questions

When can C6240-0080 be shipped?

C6240-0080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up C6240-0080 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for C6240-0080 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6240-0080, subject to availability and destination.
