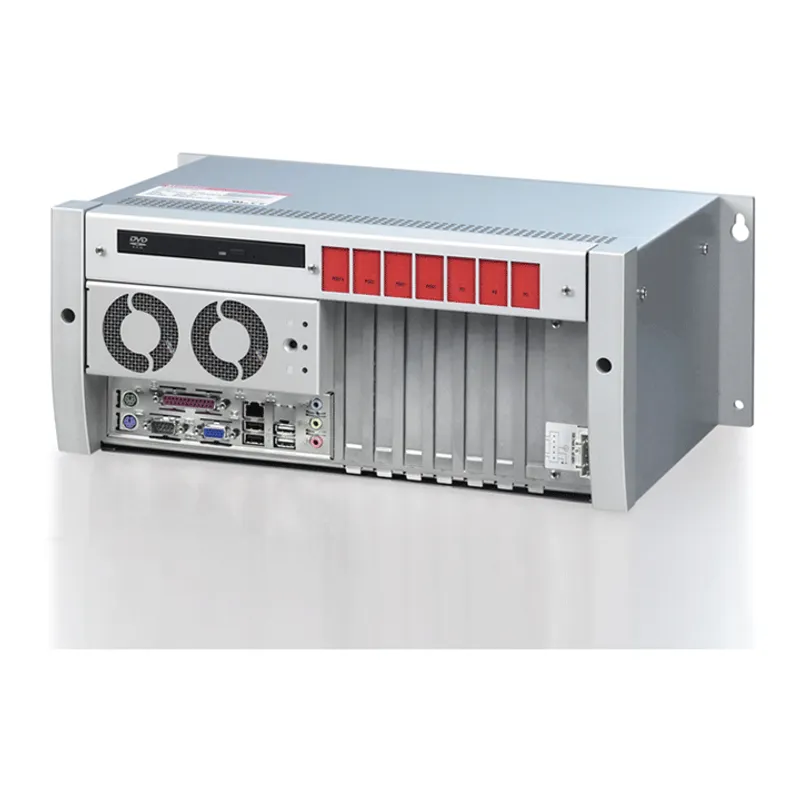

Control cabinet Industrial PC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | C6240 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can C6240-0070 be shipped?
C6240-0070 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up C6240-0070 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for C6240-0070 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for C6240-0070, subject to availability and destination.
The control cabinet PC series C62xx is equipped with maximum performance class components: with Intel® Celeron®, Pentium® or Core™ i3/i5/i7 of the latest generation on an ATX motherboard. The PCs in the C62xx series are constructed according to a uniform
Specifications
Specifications
| Device type | Control cabinet PC |
| Housing | stainless steel based housing |
| Installation | mounting sheet for horizontal PC installation |
| Protection rating | IP20 |
| Operating temperature | 0…55°C |
| Weight of basic configuration | 12.3 kg (27.2 lbs) |
| Dimensions (W x H x D) | 430 x 170 x 274 mm (16.9" x 6.7" x 10.8") |
| Processor | Intel® Celeron® G3900 2.8 GHz, 2 cores (TC2, TC3: 50) |
| Motherboard | ATX motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7 |
| PCIe®/PCI™ slots | 2 x PCIe® x1, 2 x PCIe® x4, 1 x PCIe® x16, 2 x PCI™ for up to 190 mm long plug-in cards |
| Memory | 4 GB DDR4 RAM |
| Graphic | integrated in the processor |
| Ethernet | 2 x 100/1000BASE-T on-board |
| RAID | on-board SATA RAID 1 controller |
| Hard disks/flash | hard disk, 3½-inch, 1 TB |
| Disk drive | – |
| Interfaces | 4 x USB 3.0, 2 x DVI, 1 x DisplayPort, 1 x RS232, PS/2 keyboard and mouse |
| Power supply | 100…240 V AC |
| Operating system | – |
