Beckhoff AM8374-wXyz

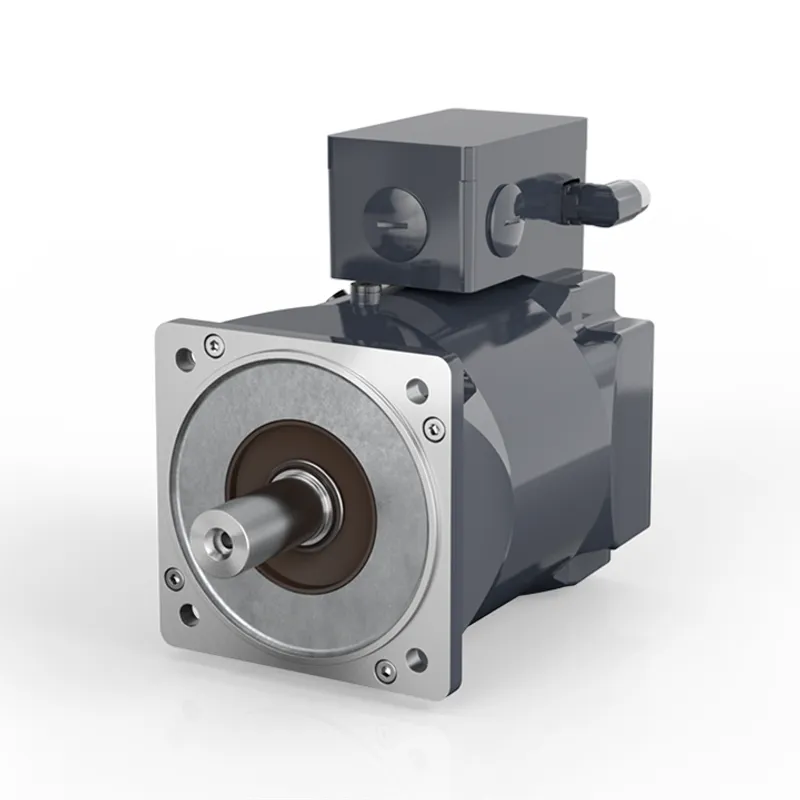

Servomotor with water cooling 233 Nm (M0), F7 (194 mm)

MPN: AM8374-wXyz
Category: AM8374

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM8374-wXyz?

The AM8374 water-cooled servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 218.70…258.50 Nm. The

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	233 Nm
Rated torque	139 Nm
Peak torque	355 Nm
Rated speed	2500 min-1
Rated power	36.3 kW
Standstill current	125 A
Peak current	180 A
Torque constant	1.86 Nm/A
Rotor moment of inertia	180 kgcm²
Motor feedback	resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder
Cooling	water cooling
Connection technology	terminal box
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus in preparation
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
k (without brake)	398.5 mm
k (with brake)	459.5 mm
