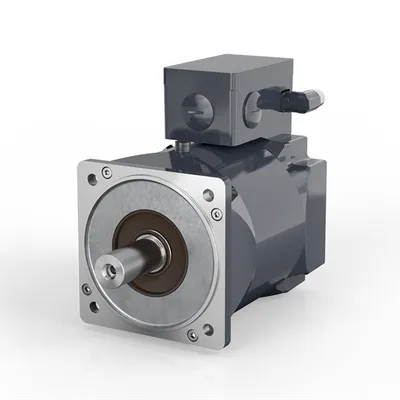

AM8374 Parts
Compare AM8374
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Standstill torque | Rated torque | Rated speed | Rated power | Standstill current |
|---|---|---|---|---|---|
| AM8374-wUyz | 259 Nm | 249 Nm | 750 min-1 | 19.6 kW | 51.8 A |
| AM8374-wXyz | 233 Nm | 139 Nm | 2500 min-1 | 36.3 kW | 125 A |
| AM8374-wVyz | 219 Nm | 210 Nm | 1500 min-1 | 33.0 kW | 78.6 A |
Common to all listed parts
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Rotor moment of inertia | 180 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder HIPERFACE®, multi-turn absolute encoder |
| Cooling | water cooling |
| Connection technology | terminal box |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus in preparation |
