Beckhoff AM8531-wCyz

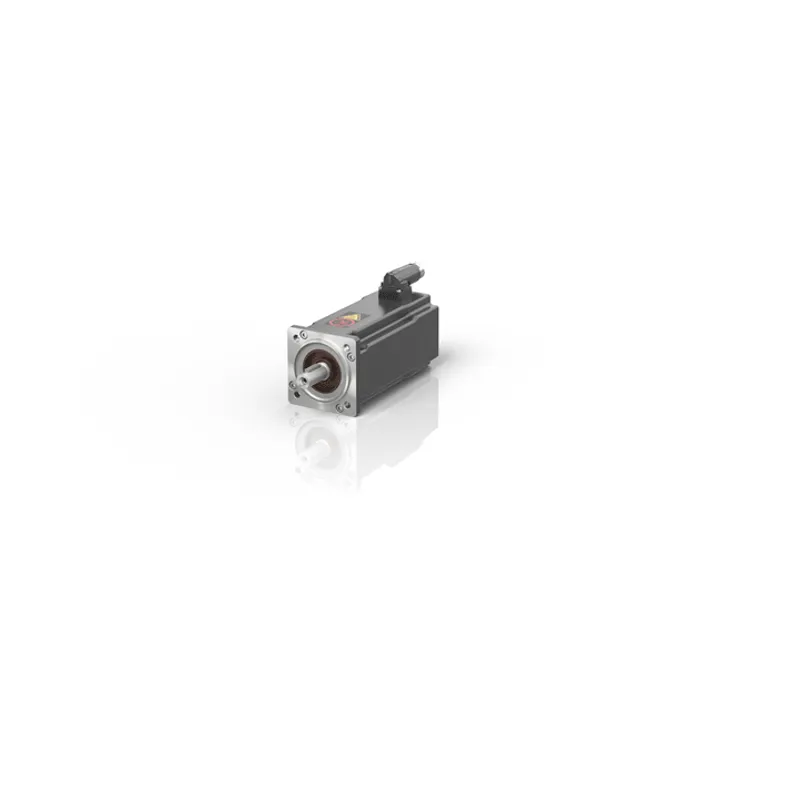

Servomotor with increased moment of inertia 1.37 Nm (M0), F3 (72 mm)

MPN: AM8531-wCyz
Category: AM8531

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff AM8531-wCyz?

The AM8531 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding

Specifications

Motor type	permanent magnet-excited three-phase synchronous motor
Nominal voltage	100…480 V AC
Standstill torque	1.37 Nm
Rated torque	1.34 Nm
Peak torque	6.1 Nm
Rated speed	3000 min-1
Rated power	0.42 kW
Standstill current	1.00 A
Peak current	5.5 A
Torque constant	1.37 Nm/A
Rotor moment of inertia	1.67 kgcm²
Motor feedback	resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD OCT, EnDat® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate
Cooling	convection
Connection technology	itec® plug
Ambient temperature (operation)	5…40°C
Approvals/markings	CE, cURus
Protection rating	IP54, IP65 (shaft seal)
Design form	flange-mounted according to IM B5, IM V1, IM V3
Material	aluminum
Coating/surface	acrylic powder-coated, dark gray, similar to RAL7016
a	60 j6
b	14 k6
d	30 mm
l	75 mm
r	72 mm
k (without brake)	168 mm
k (with brake)	194 mm
