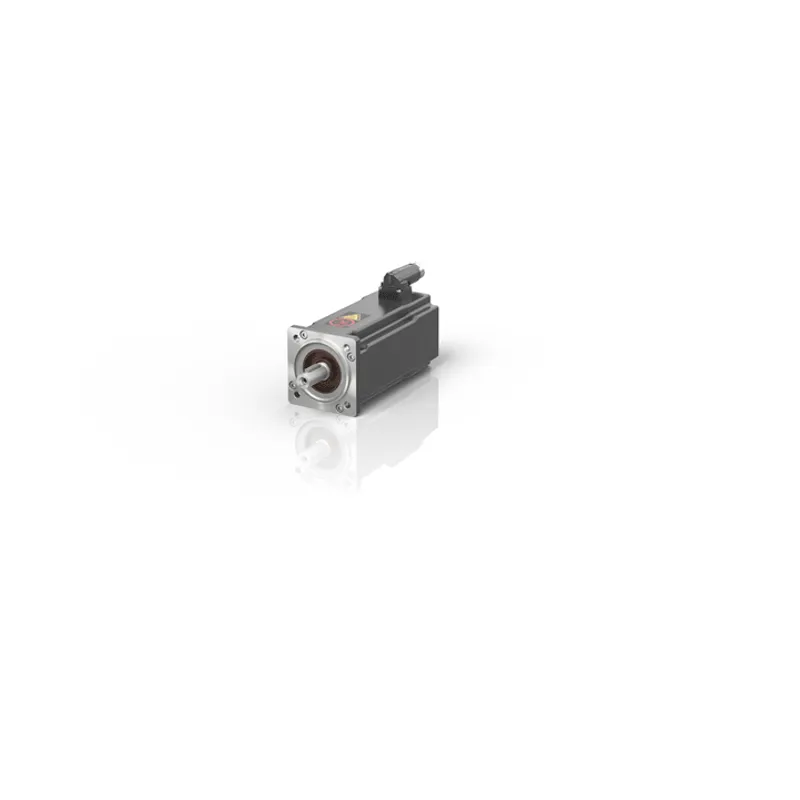

Servomotor with increased moment of inertia 1.40 Nm (M0), F3 (72 mm)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AM8531 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AM8531-wFyz be shipped?
AM8531-wFyz is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AM8531-wFyz in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AM8531-wFyz and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AM8531-wFyz, subject to availability and destination.
The AM8531 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding
Specifications
Specifications
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Nominal voltage | 100…480 V AC |
| Standstill torque | 1.40 Nm |
| Rated torque | 1.30 Nm |
| Peak torque | 6.07 Nm |
| Rated speed | 9000 min-1 |
| Rated power | 1.23 kW |
| Standstill current | 3.20 A |
| Peak current | 17.6 A |
| Torque constant | 0.44 Nm/A |
| Rotor moment of inertia | 1.67 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder OCT, 18 bit, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate OCT, 24 bit, SIL 2-capable, single-turn or multi-turn absolute encoder, electronic nameplate, B/SSD OCT, EnDat® 3, 19 bit, SIL 3-capable, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Connection technology | itec® plug |
| Ambient temperature (operation) | 5…40°C |
| Approvals/markings | CE, cURus |
| Protection rating | IP54, IP65 (shaft seal) |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| a | 60 j6 |
| b | 14 k6 |
| d | 30 mm |
| l | 75 mm |
| r | 72 mm |
| k (without brake) | 168 mm |
| k (with brake) | 194 mm |
