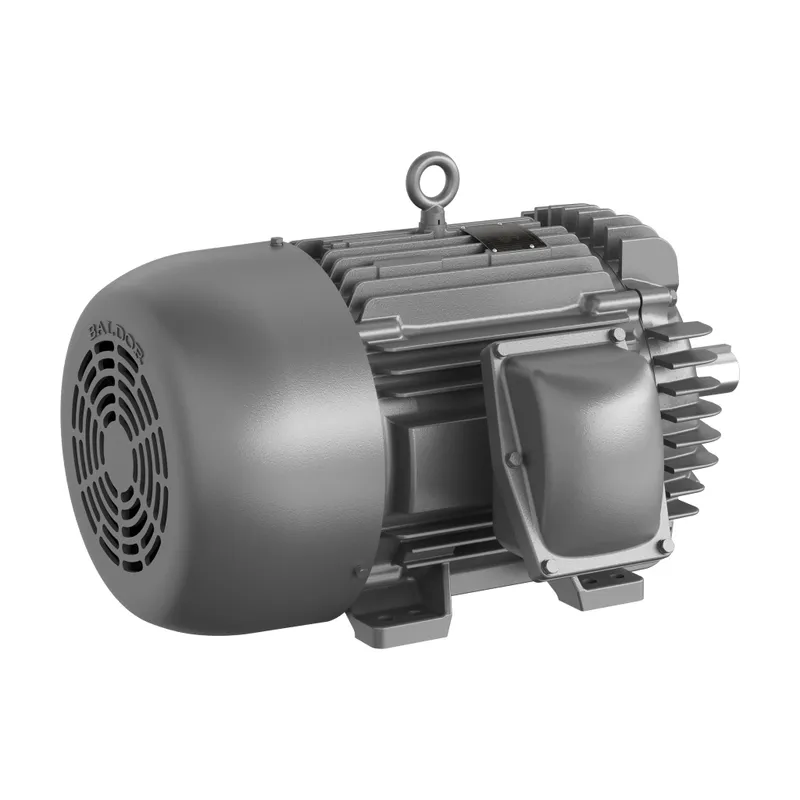

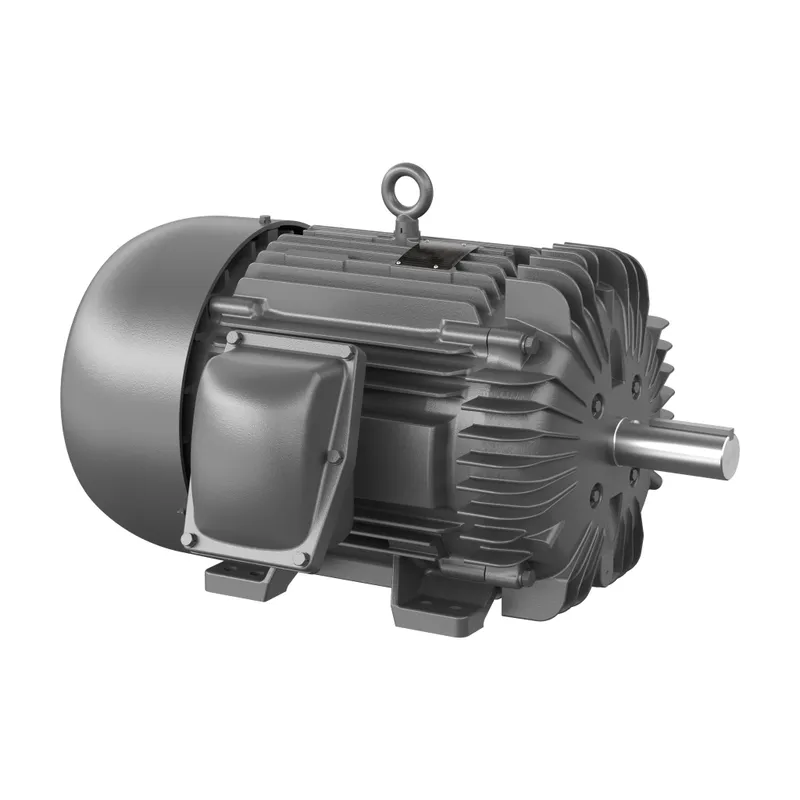

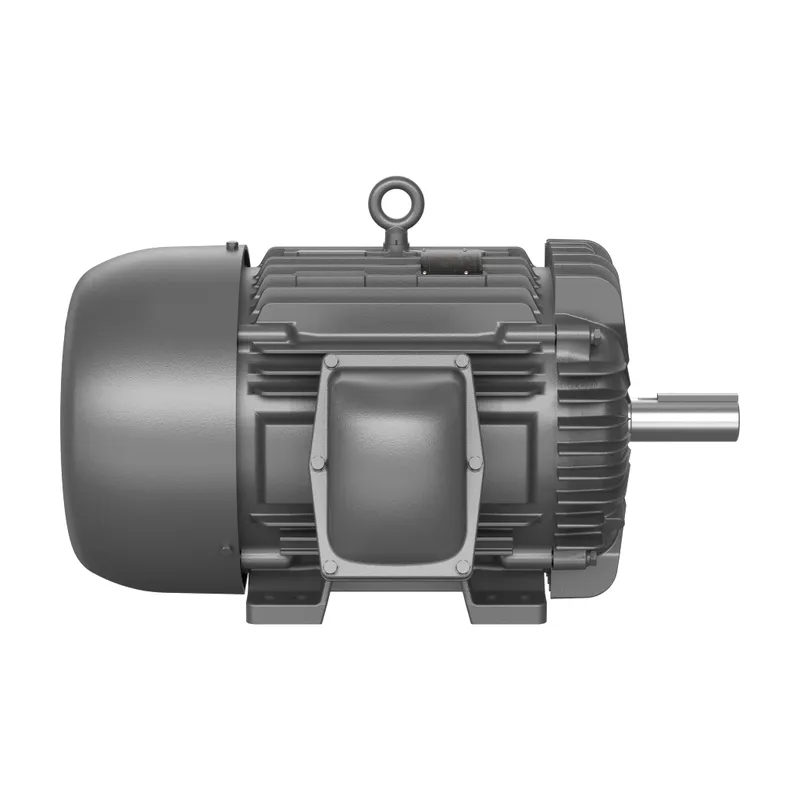

ABB XM32542T
50//40HP,1775//1470RPM,3PH,60//50HZ
- MPN
- XM32542T
- Category
- XP general purpose
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB XM32542T?
Explosion Proof General Purpos 40 Hp 190 V (XM32542T)
Specifications
Ordering
| Catalog Number | XM32542T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 85 % |
| Rated Efficiency | 94.50 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 40 Hp, 50.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | XPFC |
| Explosion Proof Group Class | Class I, Group D, Class II, Group F & G G |
| Frame Material | Iron |
| Motor Frame Size | 326T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 30 in |
| Product Net Weight | 775 lb |
| Product Net Width | 34.5 in |
| Dimension Diagram | 12LYL018 |
Certificates and Declarations
| Certification Agency | CSA EEV, UL |
| ETIM 7 | EC001851 - Electric motor |
