Home / ABB / XP general purpose / ABB XM32362T
ABB

ABB XM32362T

30//25HP,1180//980RPM,3PH,60//50HZ

MPN
XM32362T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

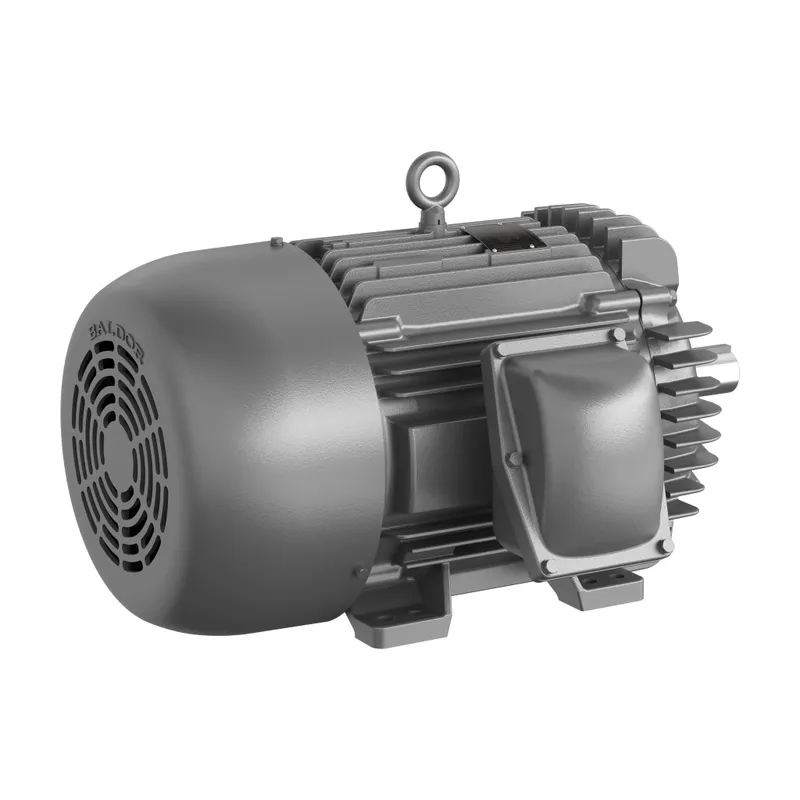

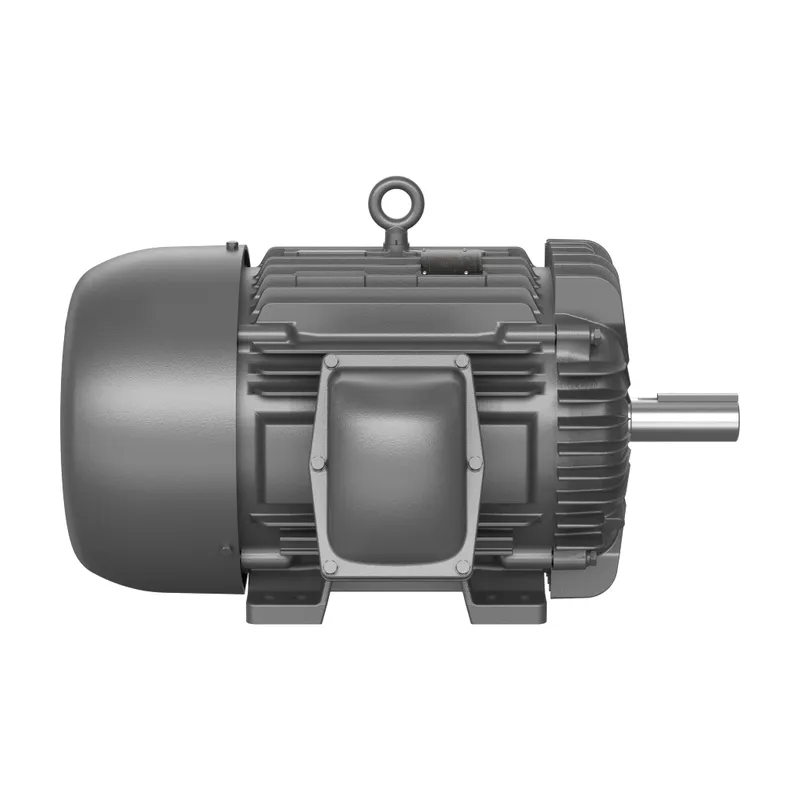

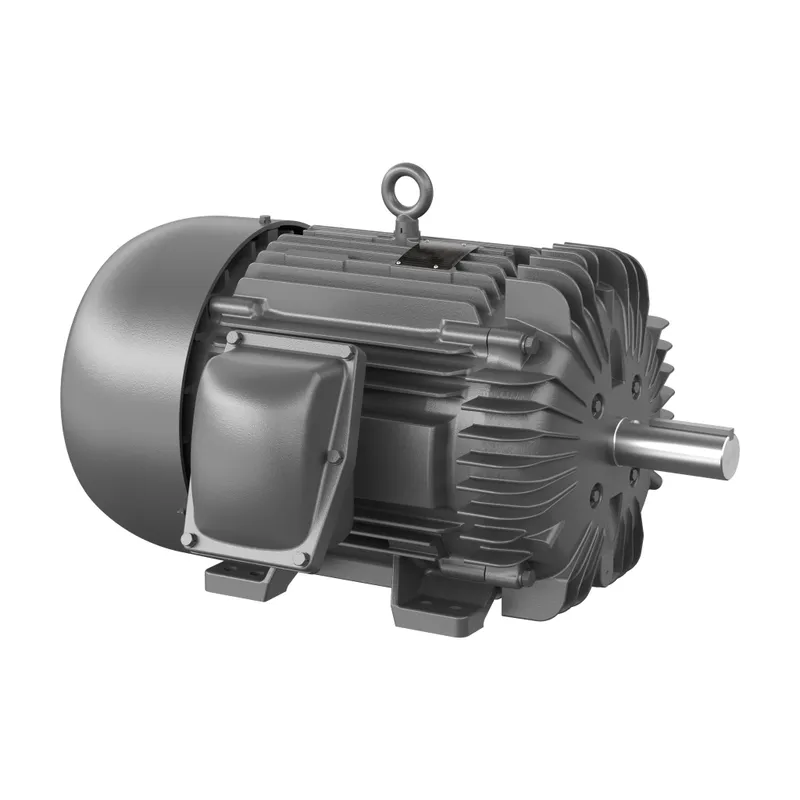

What is the ABB XM32362T?

Explosion Proof General Purpos 25 Hp 190 V (XM32362T)

Specifications

Ordering

Catalog NumberXM32362T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor78 %
Rated Efficiency93 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power25 Hp, 30.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialIron
Motor Frame Size326T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight766 lb
Product Net Width32.5 in
Dimension Diagram12LYL018

Certificates and Declarations

Certification AgencyCSA EEV, UL
ETIM 7EC001851 - Electric motor
