ABB

ABB XM36642T

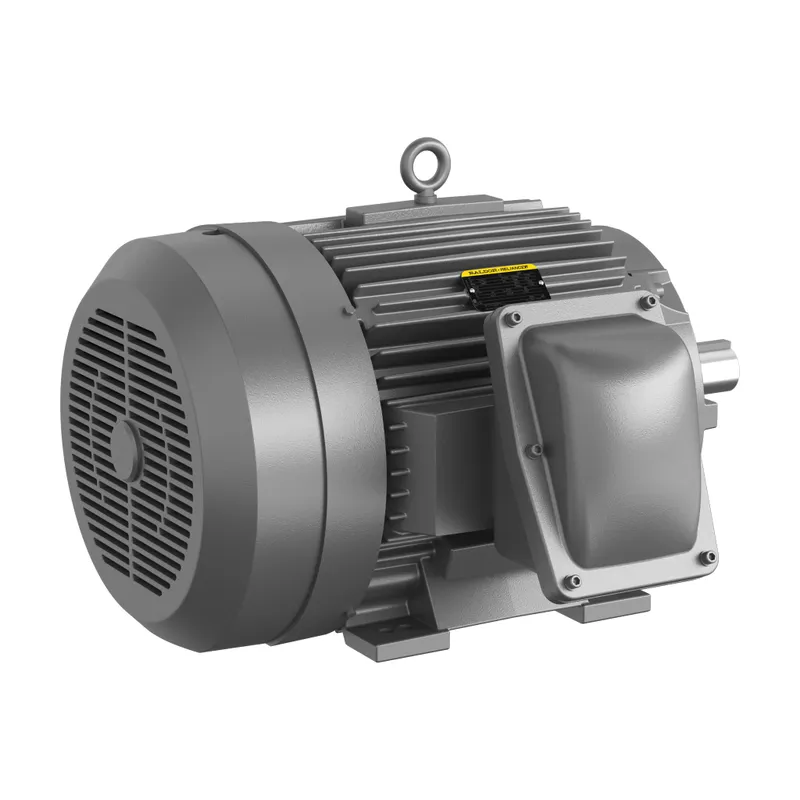

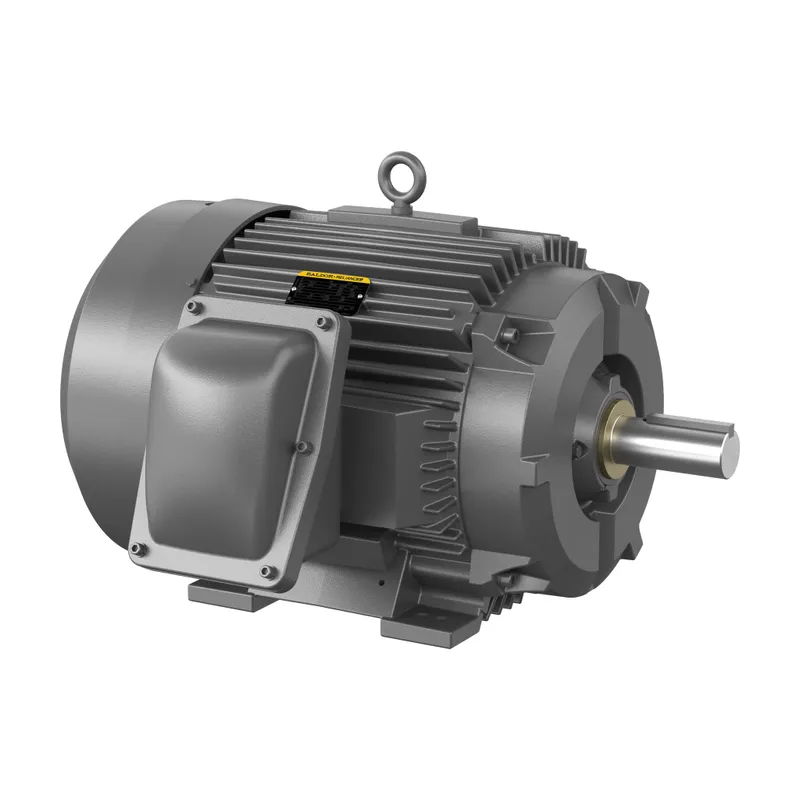

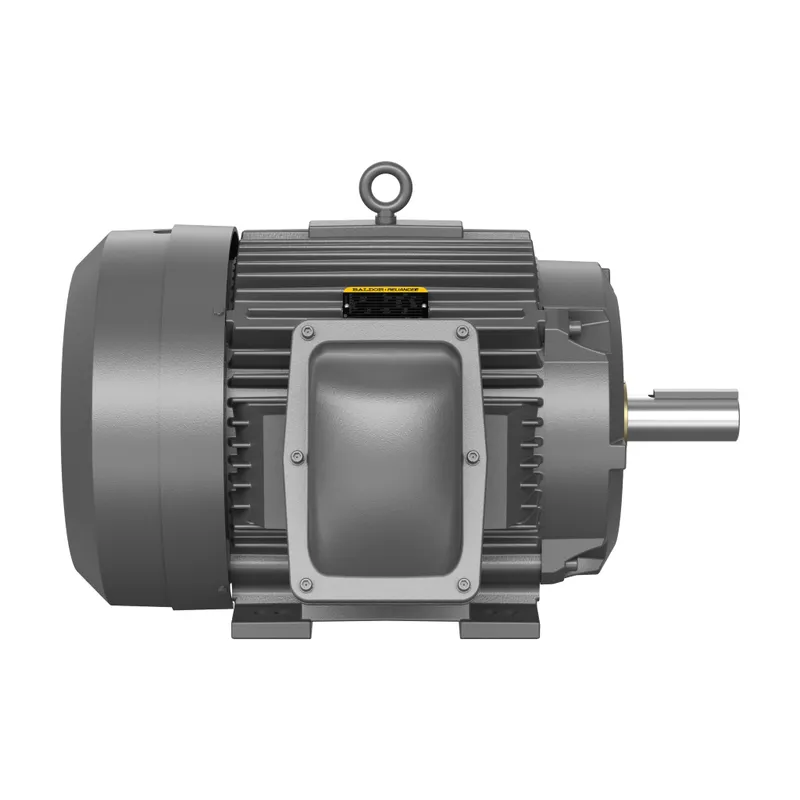

60HP,1780RPM,3PH,60HZ,364T,TEFC,F1

MPN: XM36642T
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB XM36642T?

Explosion Proof General Purpos 60 Hp 230 V (XM36642T)

Specifications

Ordering

Catalog Number	XM36642T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	84 %
Rated Efficiency	95 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	60 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Iron
Motor Frame Size	364T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	972 lb
Product Net Width	32.5 in
Dimension Diagram	611742-987

Certificates and Declarations

Certification Agency	CCSA US, CSA, CSA EEV, UL
ETIM 7	EC001851 - Electric motor
