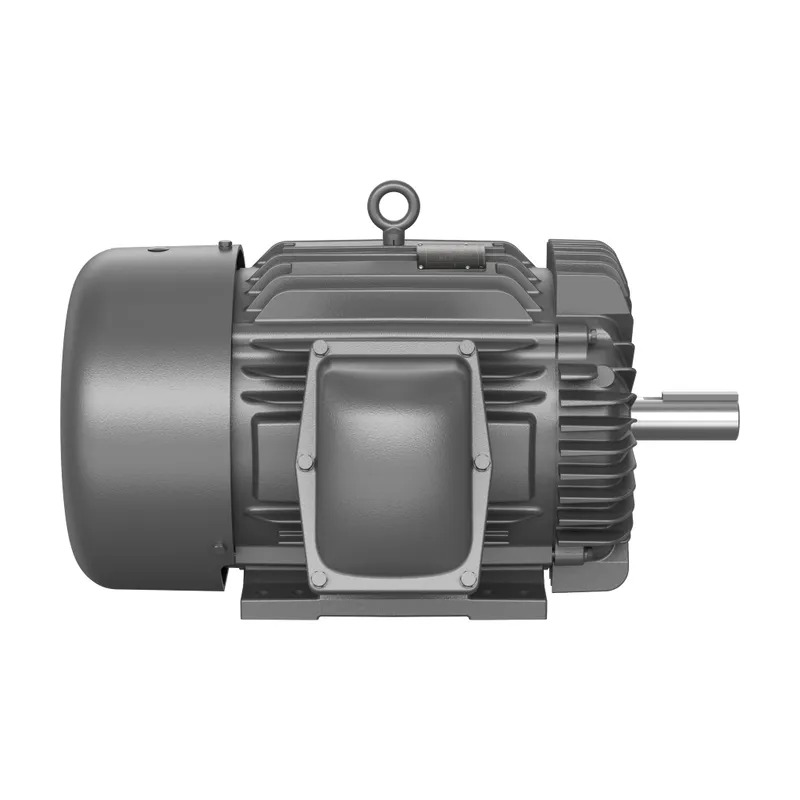

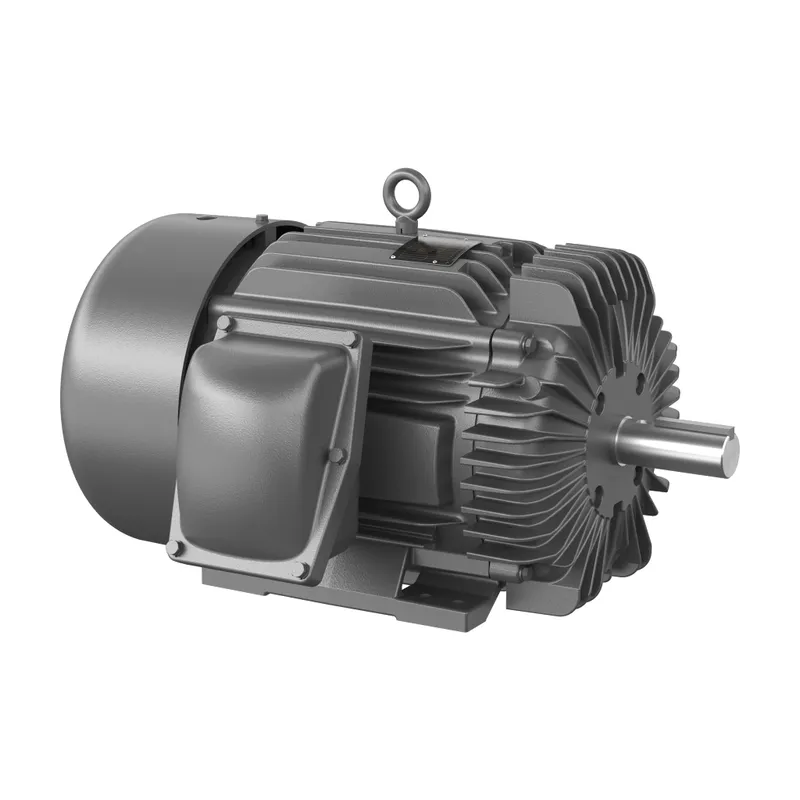

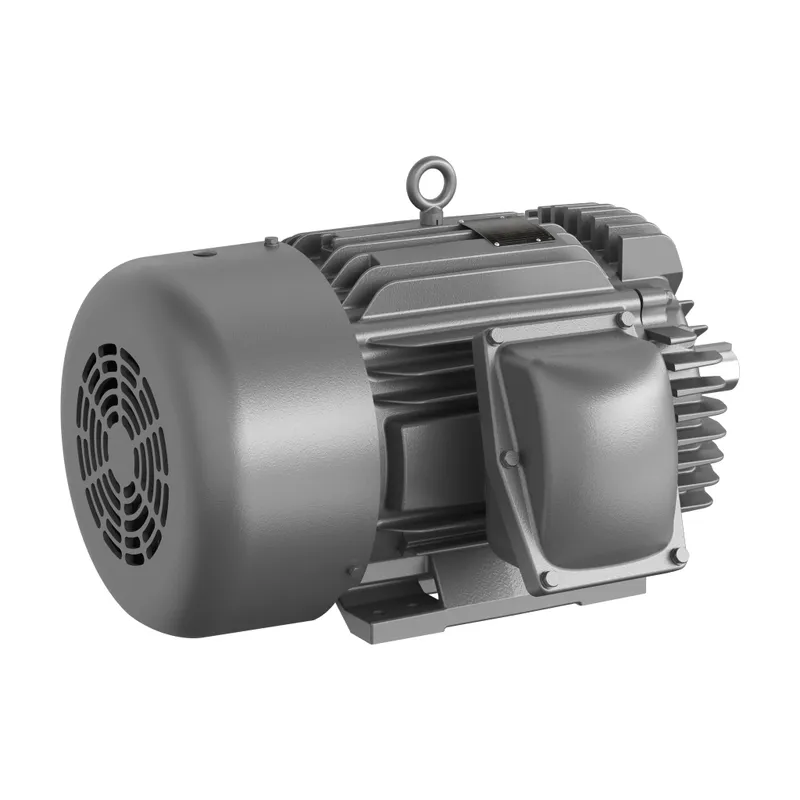

ABB XM282542T

25HP,1775//1475RPM,3PH,60//50HZ,284

MPN
XM282542T
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB XM282542T?

Explosion Proof General Purpos 20 Hp 190 V (XM282542T)

Specifications

Ordering

Catalog NumberXM282542T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor81 %
Rated Efficiency93.60 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power20 Hp, 25.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialCast Iron
Motor Frame Size284T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21.625 in
Product Net Weight537 lb
Product Net Width25.688 in
Dimension Diagram10LYE106

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor
