Home / ABB / Metric Flange SCR / ABB VP3605D

ABB

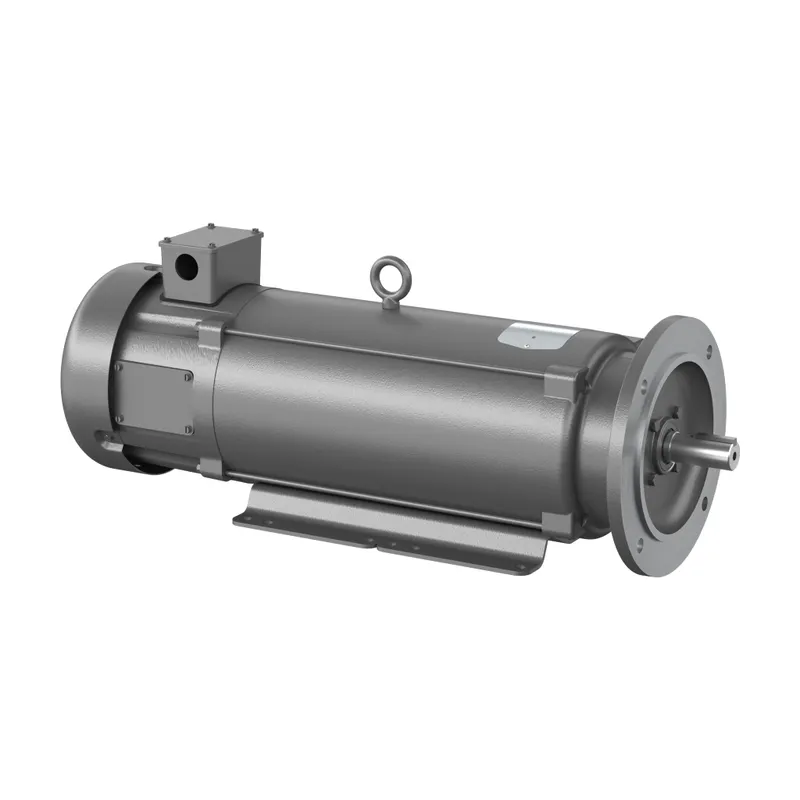

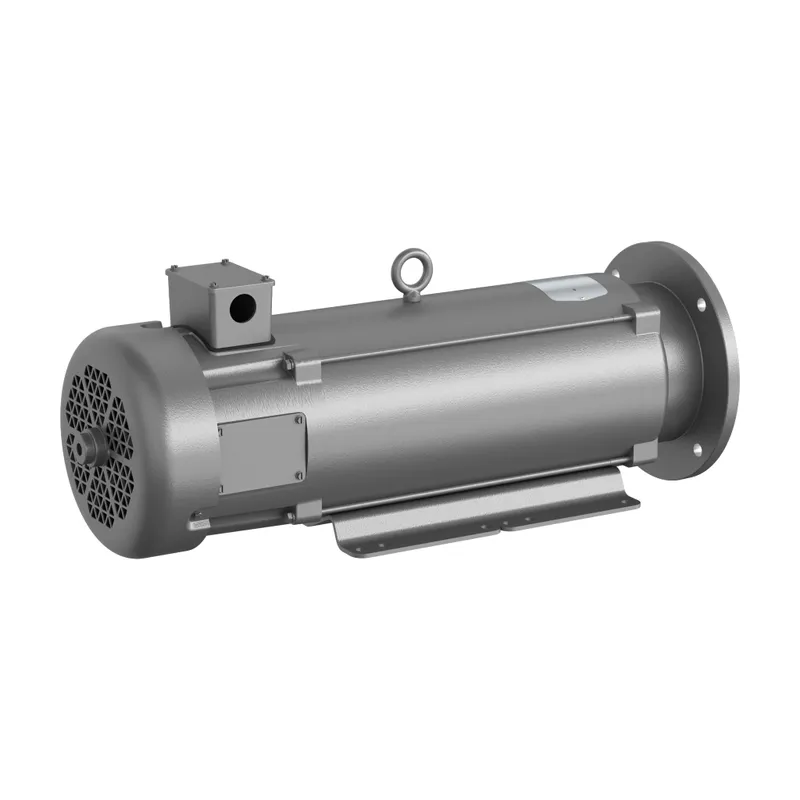

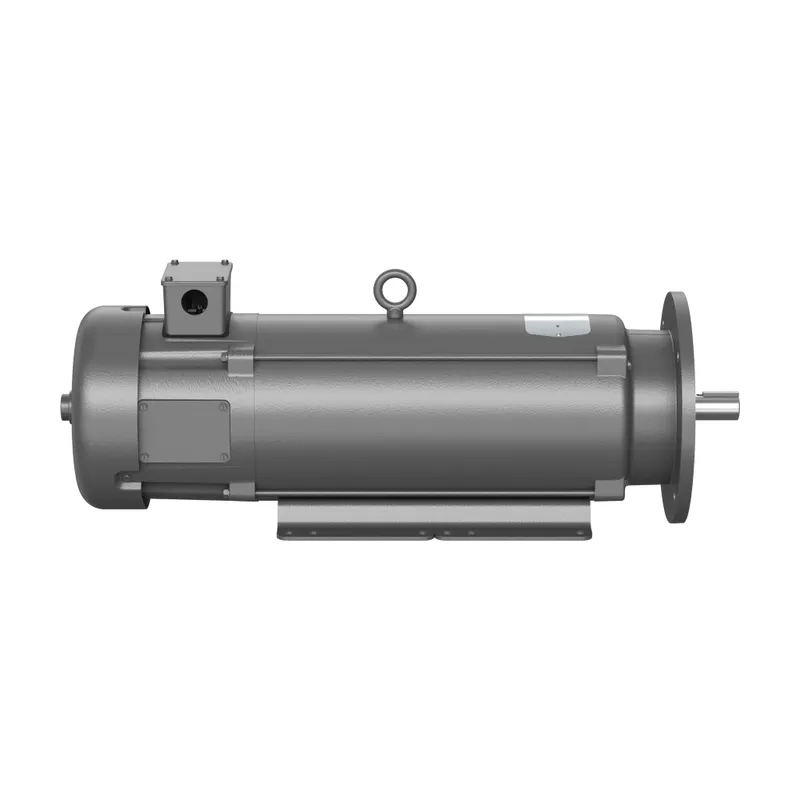

ABB VP3605D

3.7KW,1750RPM,DC,D112D,3681P,TEFC,F

MPN: VP3605D
Category: Metric Flange SCR

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VP3605D?

DC PM IEC Flange 5 Hp (VP3605D)

Specifications

Ordering

Catalog Number	VP3605D
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013200
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
Output Power	5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	D112D
Motor Base Type	Foot Mounted
Brake Present	No

Dimensions

Product Net Height	18.625 in
Product Net Weight	65 lb
Product Net Width	17.625 in
Dimension Diagram	36LYP184

Certificates and Declarations

Certification Agency	CE, CSA, UR, WEEE
ETIM 7	EC001851 - Electric motor
