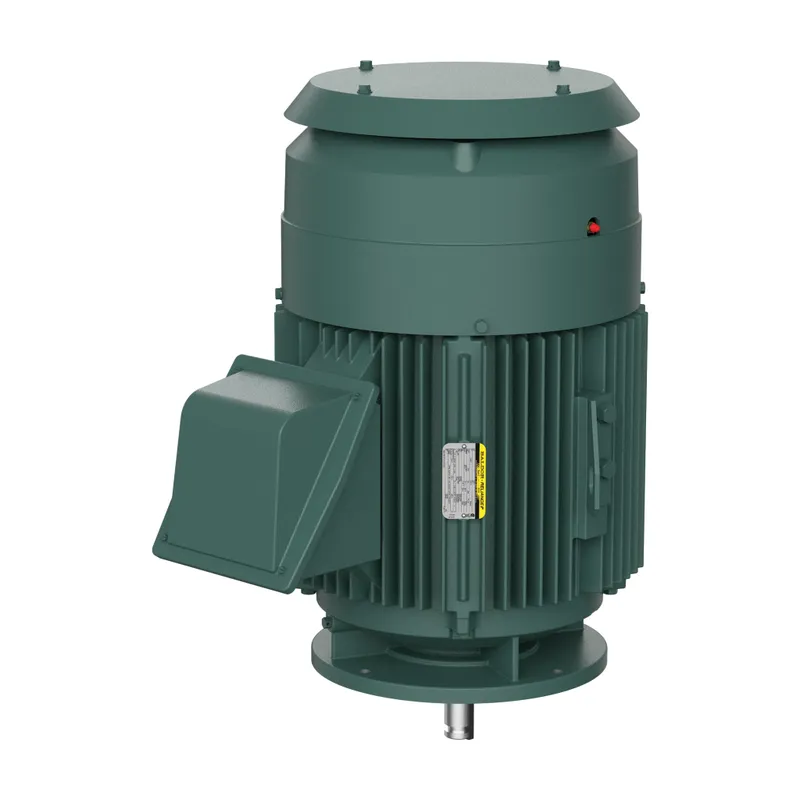

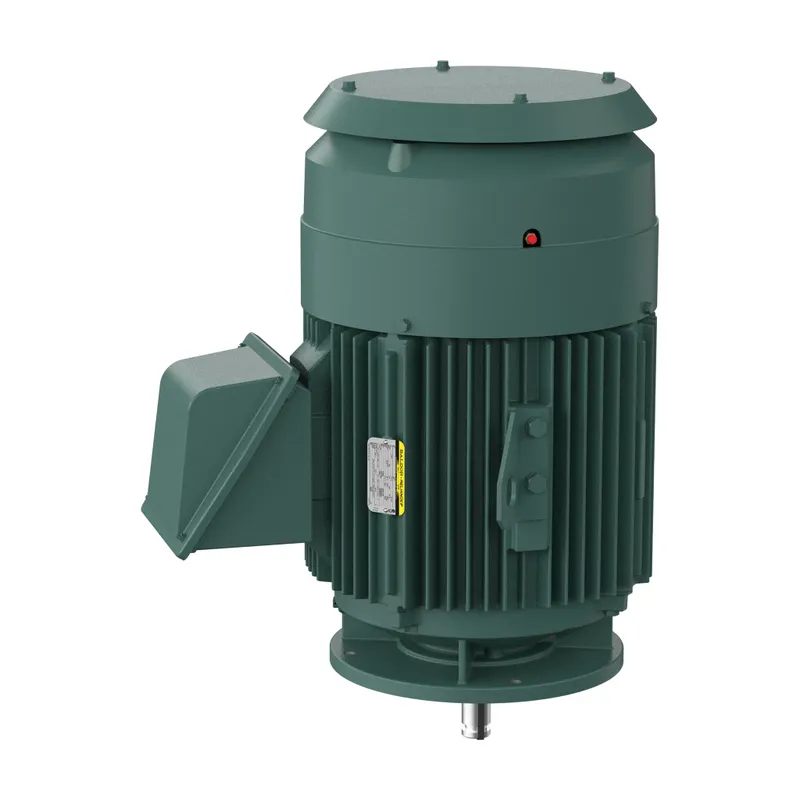

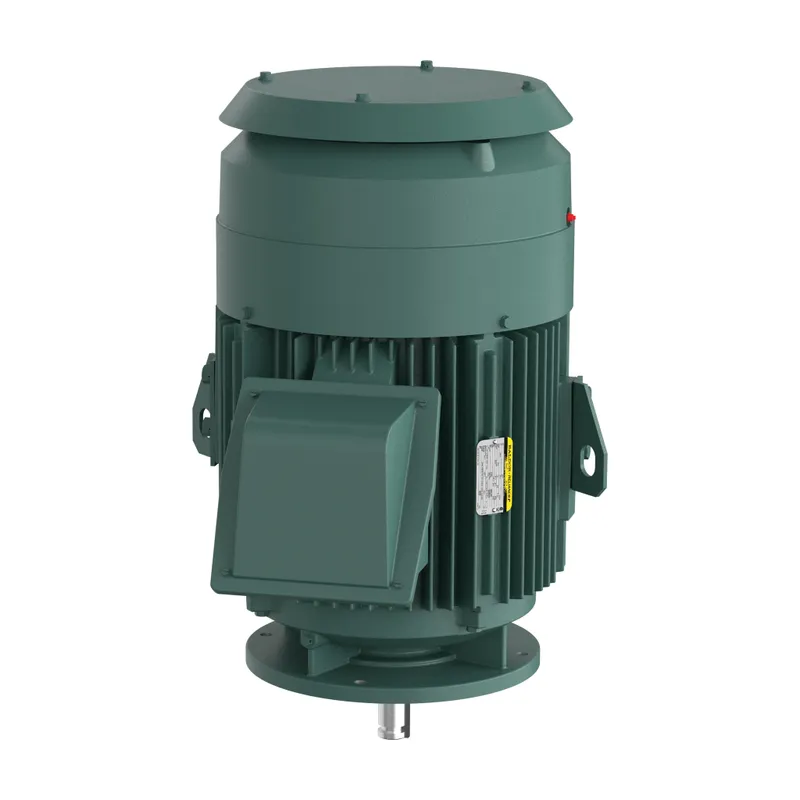

ABB VPECP4310T

60HP,3560RPM,3PH,60HZ,364VP,TEFC,V1

MPN: VPECP4310T
Category: Vertical P-base solid shaft

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VPECP4310T?

Pump Motor 60 Hp 230 V (VPECP4310T)

Specifications

Ordering

Catalog Number	VPECP4310T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	91 %
Rated Efficiency	95 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	60 Hp

Mechanical

Drive End Flange Type	P-Base
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	364VP
Motor Base Type	No Mounting
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	987 lb
Product Net Width	32.5 in
Dimension Diagram	616555-992

Certificates and Declarations

Certification Agency	CCSAUSEEV, CURUSEEV
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
