Metric Flange SCR Parts

ABB

VP3455-14

075/1HP,1750RPM,DC,D80C,3435P,TEFC

ABB

VP3468-14

1.5HP/1.1KW/3000RPM/TEFC 34-6243Z17

ABB

VP3458-14

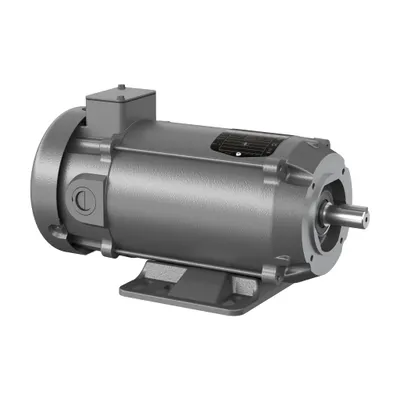

1HP/.75KW/3000RPM/TEFC/34-6243Z145

ABB

VP3428-14

.37KW/.5HP/3000RPM/TEFC/IEC/71C MOT

ABB

VP3605D

3.7KW,1750RPM,DC,D112D,3681P,TEFC,F

ABB

VP3428D

.37/.50KW,3000RPM,DC,D71D,3416P,TEF

ABB

VP3458D

.75/1KW,3000RPM,DC,D80D,3428P,TEFC

ABB

VP3468D

1.1/1.5HP,3000RPM,DC,D90D,3432P,TEF

ABB

VP3326D

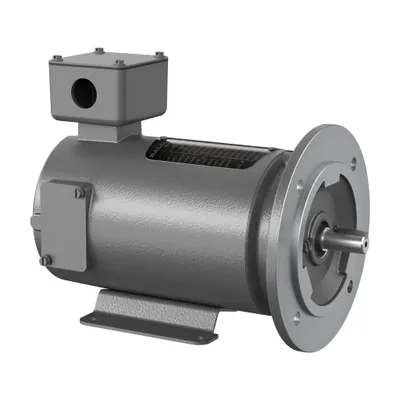

.37/.5HP,1750RPM,DC,D71D,3336P,TENV

ABB

VP3316D

.25/.33HP,1750RPM,DC,D71D,3327P,TEN

ABB

VP3585D

1.5/2HP,1750RPM,DC,D90D,3548P,TEFC

ABB

VP3455D

.75/1HP,1750RPM,DC,D80D,3435P,TEFC

ABB

VP3575D

1.1/1.5HP,1750RPM,DC,D90D,3536P,TEF

ABB

VP3426-14

.37/.50KW,1750RPM,DC,D71C,3420P,TEF

ABB

VP3436-14

.56/.75HP,1750RPM,DC,D80C,3428P,TEF

ABB

VP3416-14

.25/.33HP,1750RPM,DC,D71C,3413P,TEF

ABB

VP3585-14

1.5/2HP,1750RPM,DC,D90C,3548P,TEFC

ABB

VP3603D

2.2KW,1750RPM,DC,D112D,3649P,TEFC,F

ABB

VP3588D

1.5/2HP,3000RPM,DC,D90D,3536P,TEFC

ABB

VP3311D

.18/.25HP,1750RPM,DC,D71D,3320P,TEN

ABB

VP3575-14

1.1/1.5HP,1750RPM,DC,D90C,3536P,TEF

ABB

VP3439D

.57/.75HP,3000RPM,DC,D80D,3420P,TEF

ABB

VP3411-14

.18/.25HP,1750RPM,DC,D71C,3410P,TEF

ABB

VP3436D

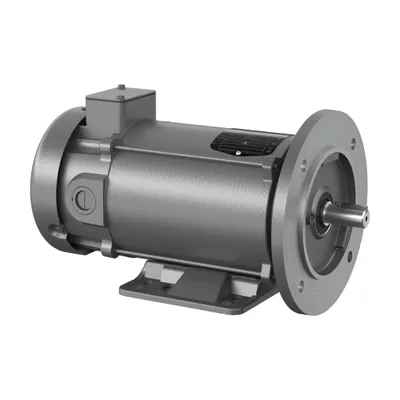

.57/.75HP,1750RPM,DC,D80D,3428P,TEF

Compare Metric Flange SCR

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Output Power	Motor Frame Size	Product Net Weight	Dimension Diagram
VP3455-14	VP3455-14	1 Hp	D80C	45 lb	34LY6243
VP3468-14	VP3468-14	1.5 Hp	D80C	43 lb	34LY6243
VP3458-14	VP3458-14	0.75 Hp	D80C	39 lb	34LY6243
VP3428-14	VP3428-14	0.5 Hp	D71C	31 lb	34LY6242
VP3605D	VP3605D	5 Hp	D112D	65 lb	36LYP184
VP3428D	VP3428D	0.373 Hp	D71D	32 lb	34LY6173
VP3458D	VP3458D	0.75 Hp	D80D	41 lb	34LY6483
VP3468D	VP3468D	1.5 Hp	D90D	46 lb	34LY6484
VP3326D	VP3326D	0.5 Hp	D71D	31 lb	33LY2370
VP3316D	VP3316D	0.33 Hp	D71D	26 lb	33LY2370
VP3585D	VP3585D	2 Hp	D90D	75 lb	35LYP466
VP3455D	VP3455D	1 Hp	D80D	46 lb	34LY6483
VP3575D	VP3575D	1.5 Hp	D90D	67 lb	35LYP466
VP3426-14	VP3426-14	0.37 Hp	D71C	36 lb	34LY6242
VP3436-14	VP3436-14	0.75 Hp	D80C	40 lb	34LY6243
VP3416-14	VP3416-14	0.33 Hp	D71C	31 lb	34LY6242
VP3585-14	VP3585-14	2 Hp	D90C	80 lb	35LYP454
VP3603D	VP3603D	3 Hp	D112D	122 lb	36LYP182
VP3588D	VP3588D	2 Hp	D90D	67 lb	35LYP466
VP3311D	VP3311D	0.25 Hp	D71D	22 lb	33LY2370
VP3575-14	VP3575-14	1.5 Hp	D90C	84 lb	35LYP454
VP3439D	VP3439D	0.75 Hp	D80D	37 lb	34LY6483
VP3411-14	VP3411-14	0.25 Hp	D71C	30 lb	34LY6242
VP3436D	VP3436D	0.75 Hp	D80D	40 lb	34LY6483

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
