ABB

ABB VP3585D

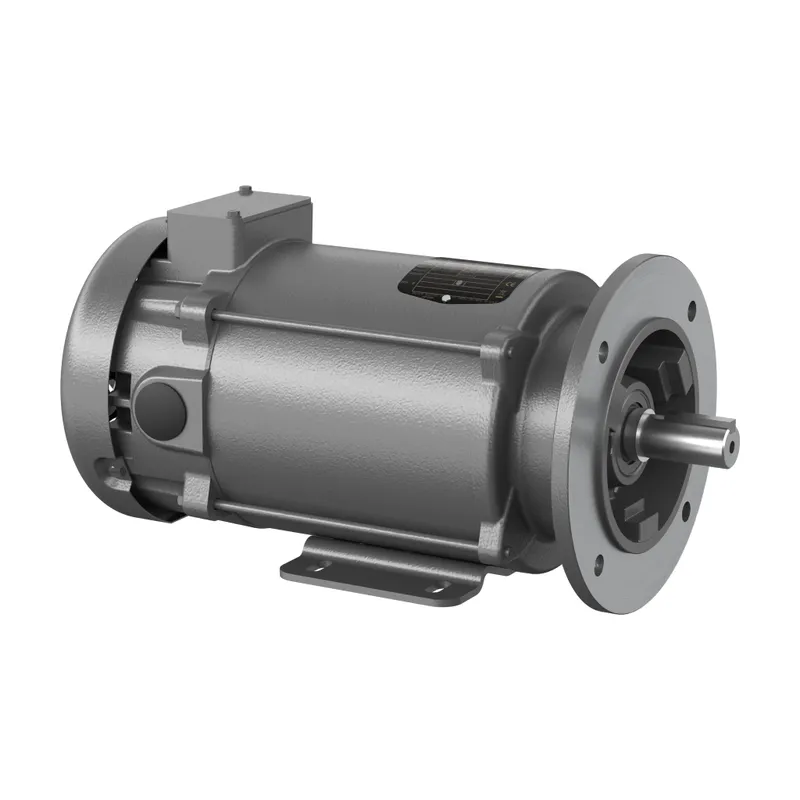

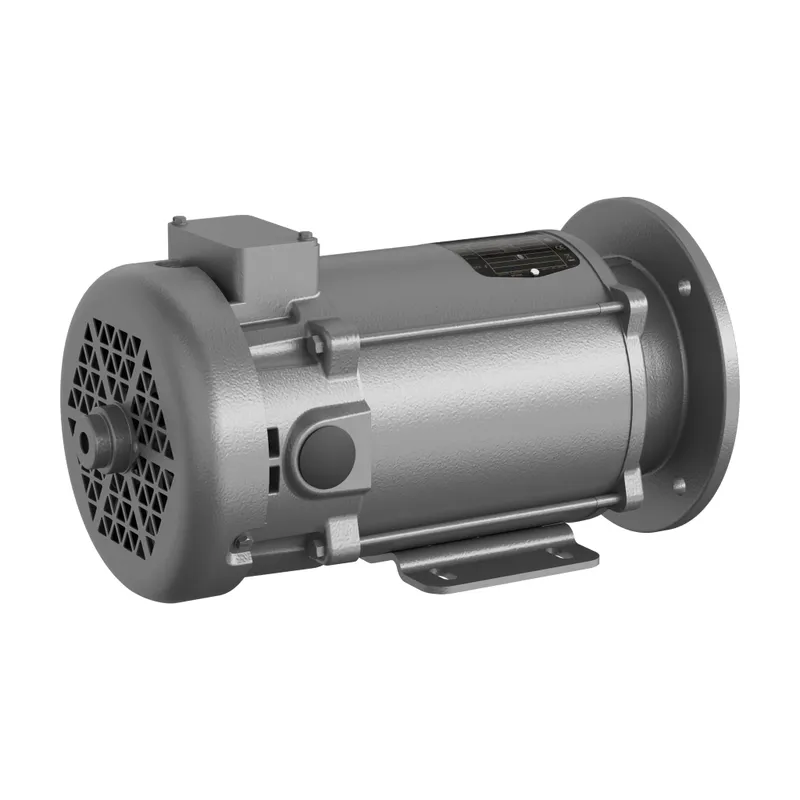

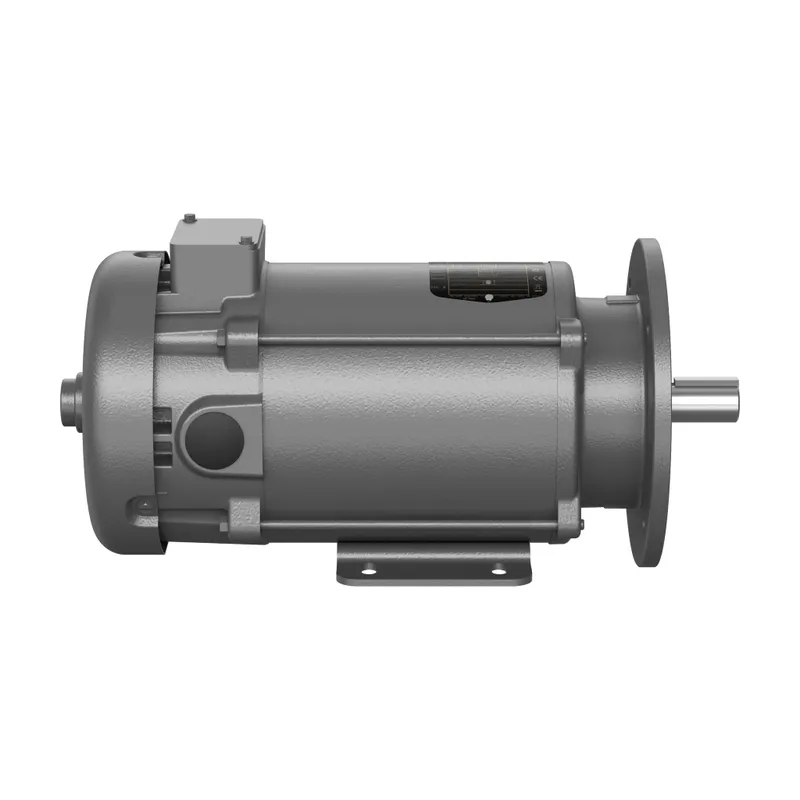

1.5/2HP,1750RPM,DC,D90D,3548P,TEFC

MPN: VP3585D
Category: Metric Flange SCR

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VP3585D?

DC PM IEC Flange 2 Hp (VP3585D)

Specifications

Ordering

Catalog Number	VP3585D
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013200
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
Output Power	2 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	D90D
Motor Base Type	Foot Mounted
Brake Present	No

Dimensions

Product Net Height	12.813 in
Product Net Weight	75 lb
Product Net Width	12.25 in
Dimension Diagram	35LYP466

Certificates and Declarations

Certification Agency	CE, CSA, UR, WEEE
ETIM 7	EC001851 - Electric motor
