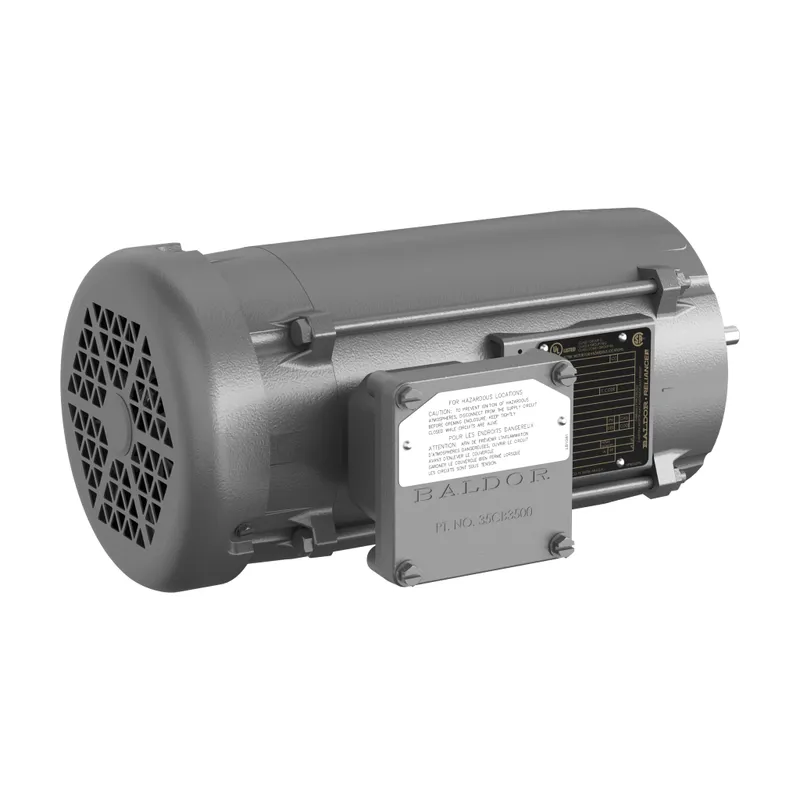

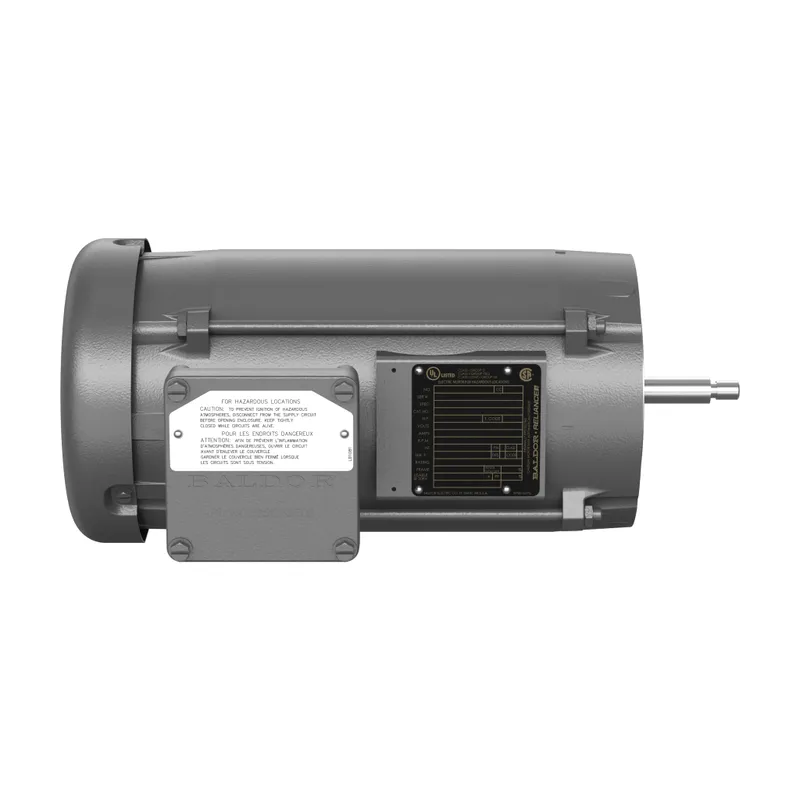

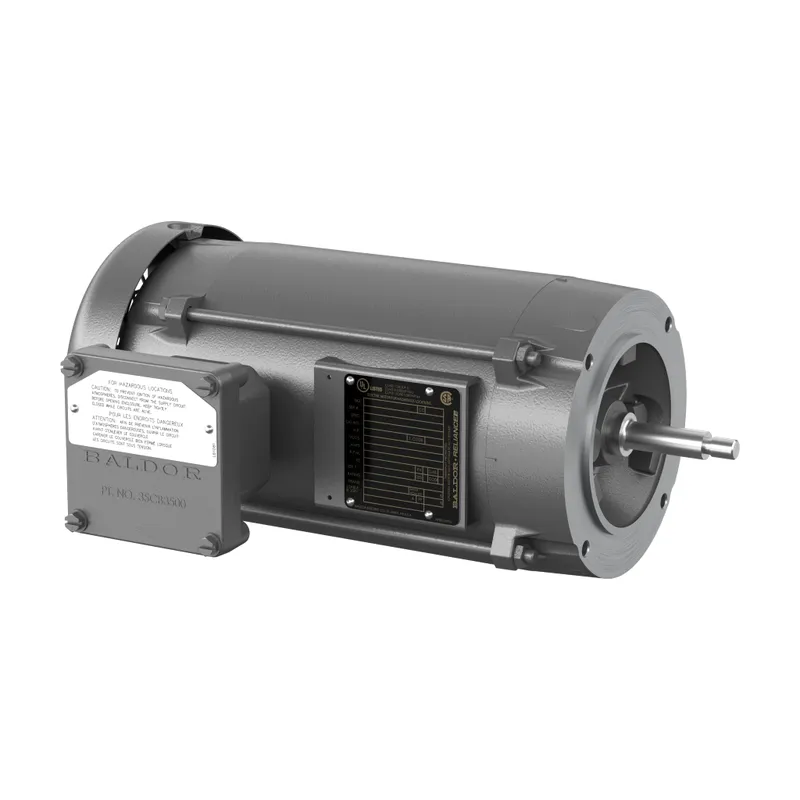

ABB JXL051522
1.5HP,3450RPM,1PH,60HZ,56J,3530L,XP
- MPN
- JXL051522
- Category
- XP general purpose
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB JXL051522?
Explosion Proof General Purpos 1.5 Hp 115 V (JXL051522)
Specifications
Ordering
| Catalog Number | JXL051522 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | L |
| Number of Phases | 1-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 82 % |
| Rated Efficiency | 70 % |
| Service Factor | 1.15 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 1.5 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group D, Class II, Group F & G G |
| Frame Material | Steel |
| Motor Frame Size | 56J |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 15.125 in |
| Product Net Weight | 54 lb |
| Product Net Width | 16.125 in |
| Dimension Diagram | 35LYE790 |
Certificates and Declarations
| Certification Agency | CSA, UL |
| ETIM 7 | EC001851 - Electric motor |
