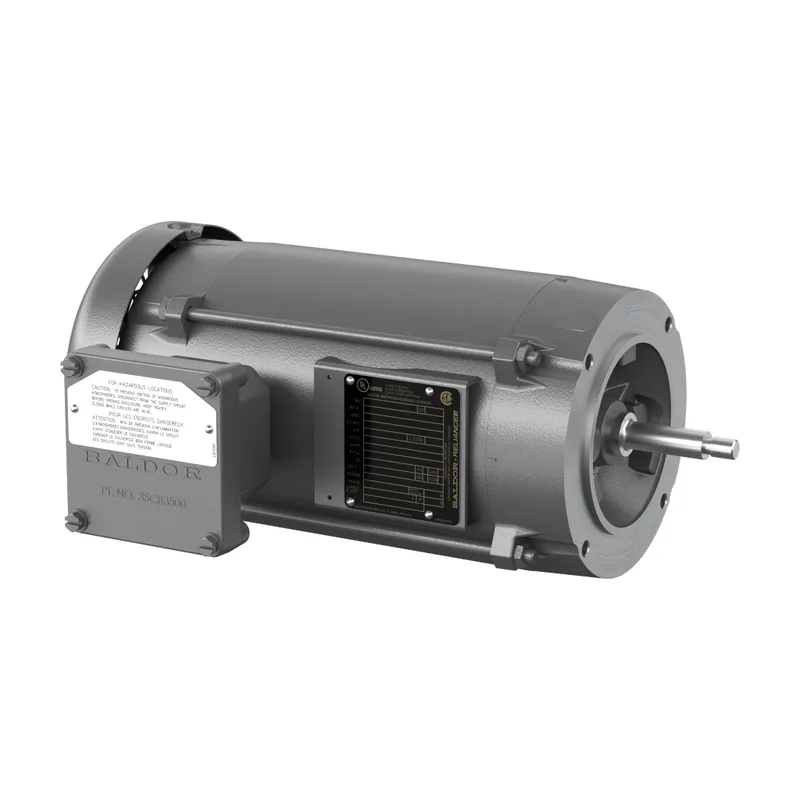

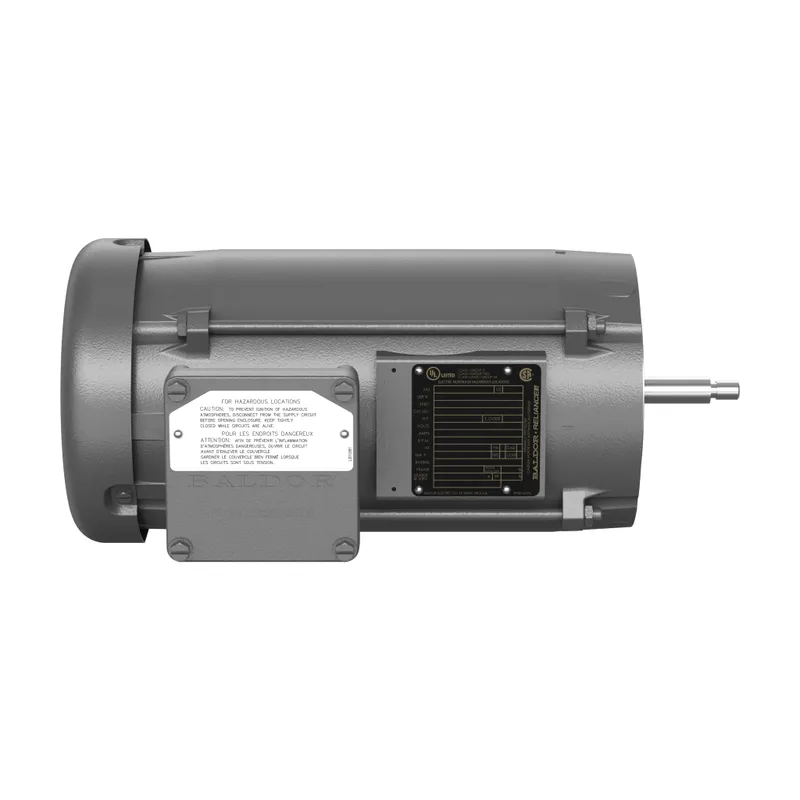

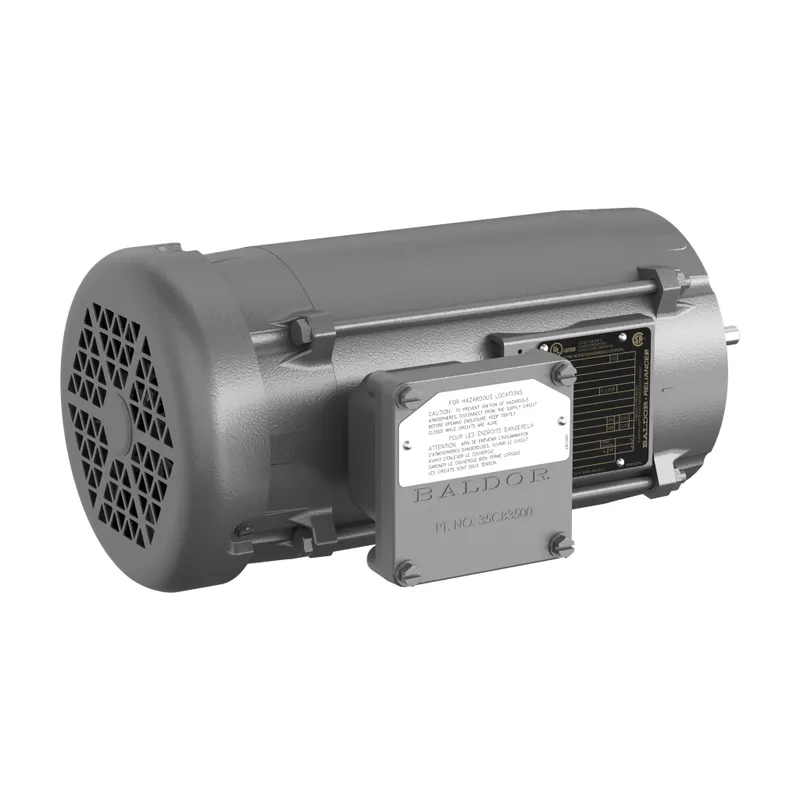

ABB JXL050722A

0.75HP,3500RPM,1PH,60HZ,56J,3524L,X

MPN: JXL050722A
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB JXL050722A?

Explosion Proof General Purpos 0.750.000 Hp 115 V (JXL050722A)

Specifications

Ordering

Catalog Number	JXL050722A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	77 %
Rated Efficiency	66 %
Service Factor	1.00
Temperature Class	T4
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56J
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	40 lb
Product Net Width	16.125 in
Dimension Diagram	35LYE382

Certificates and Declarations

Certification Agency	CSA, UL
ETIM 7	EC001851 - Electric motor
