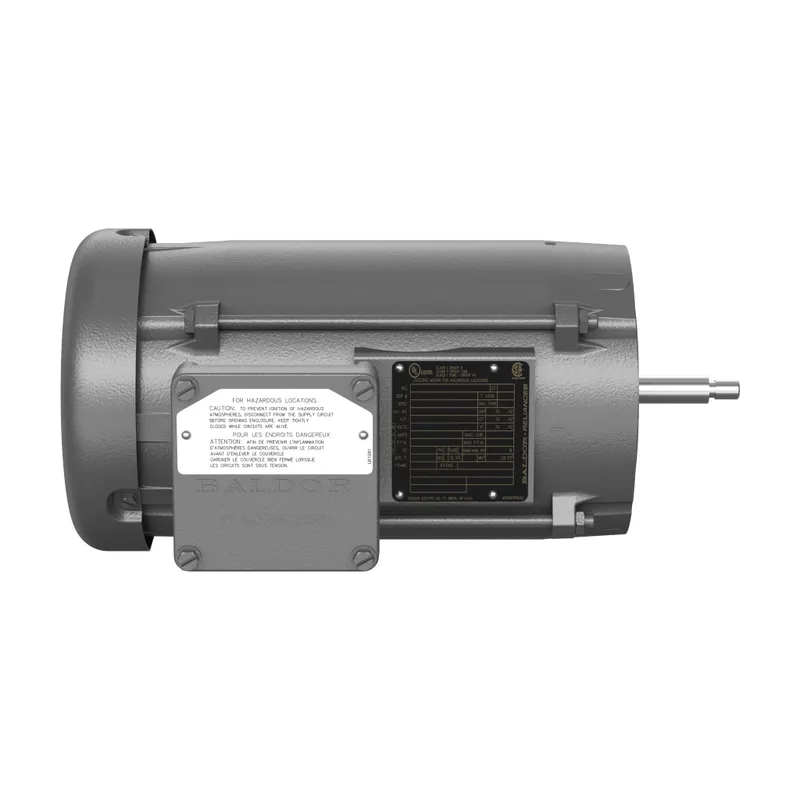

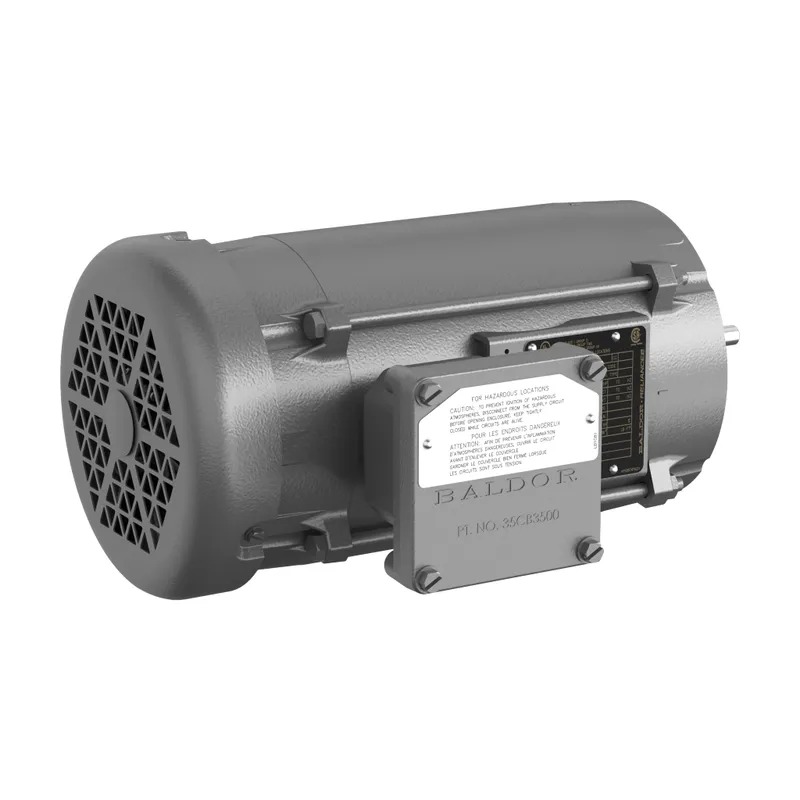

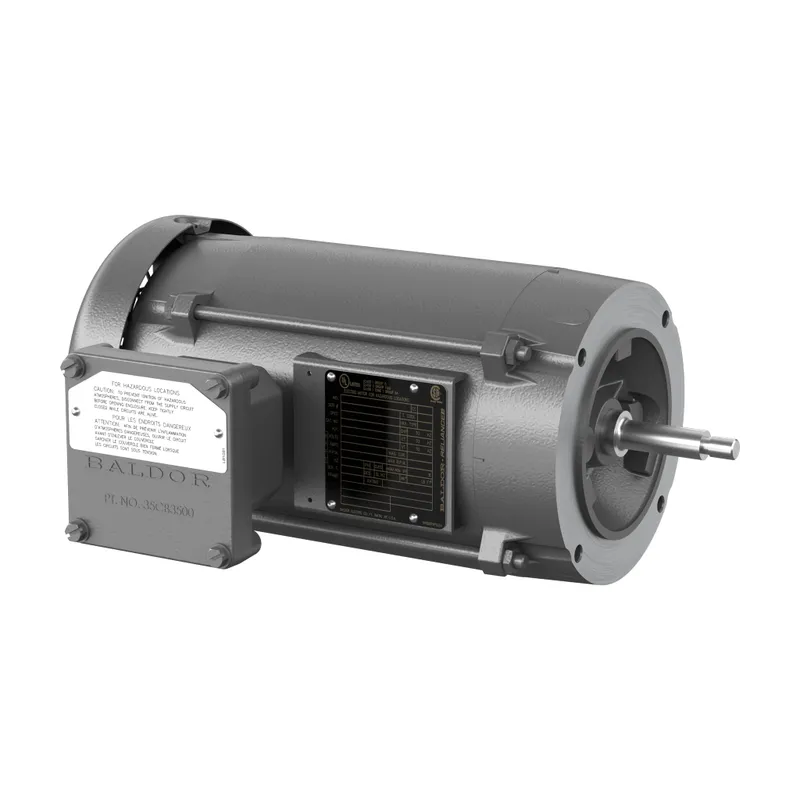

ABB JXM051522

1.5//1HP,3500//2900RPM,3PH,60//50HZ

MPN: JXM051522
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB JXM051522?

Explosion Proof General Purpos 1.500 Hp 190 V (JXM051522)

Specifications

Ordering

Catalog Number	JXM051522
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	85 %
Rated Efficiency	84 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1.500 Hp, 1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56J
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	47 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE384

Certificates and Declarations

Certification Agency	CSA EEV, UL
ETIM 7	EC001851 - Electric motor
