Home / ABB / XP Drill Rig Duty / ABB DRX32364T
ABB

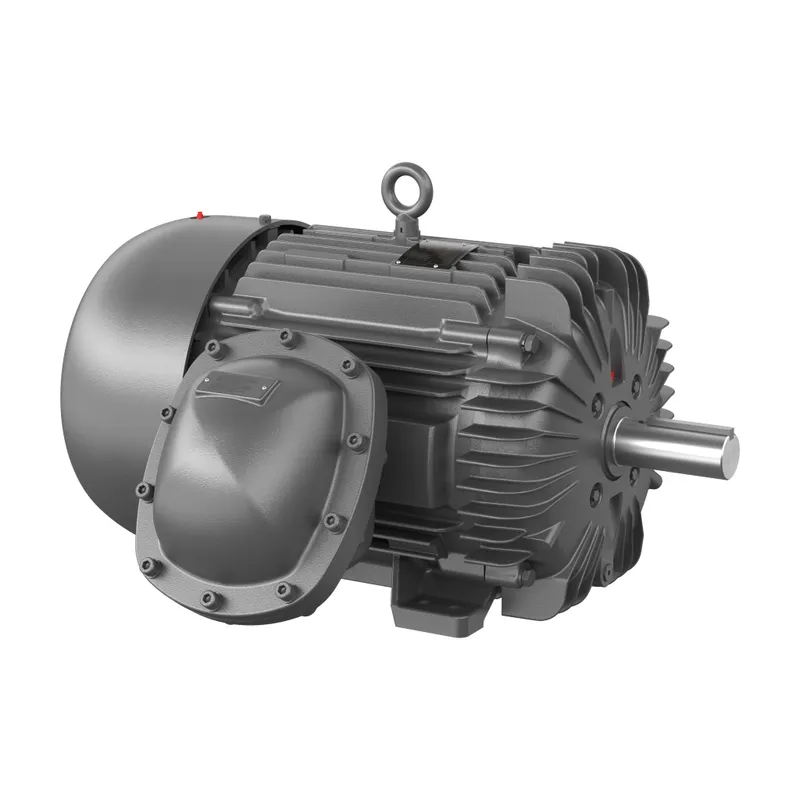

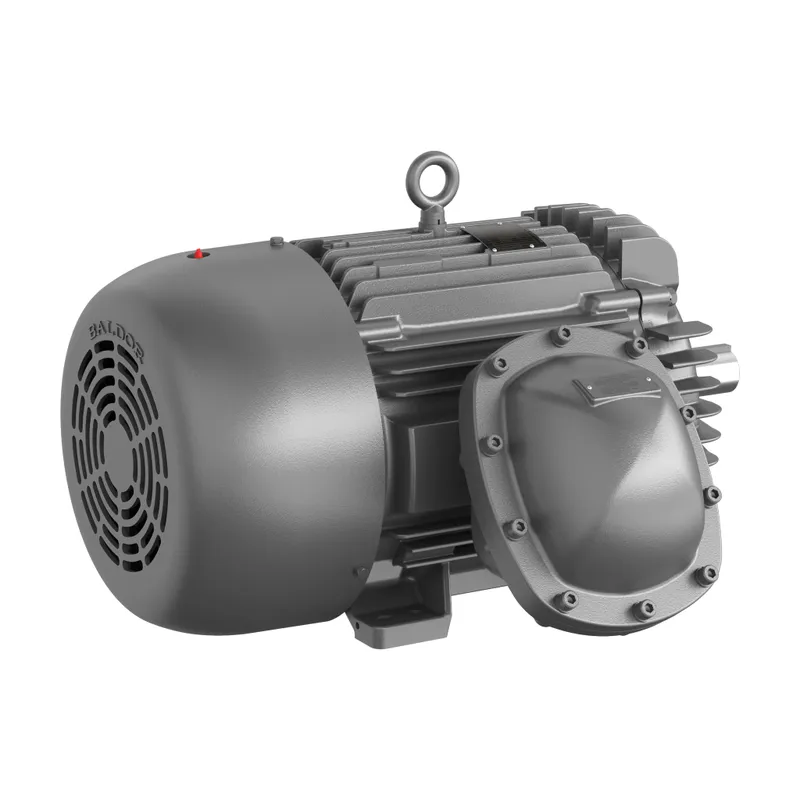

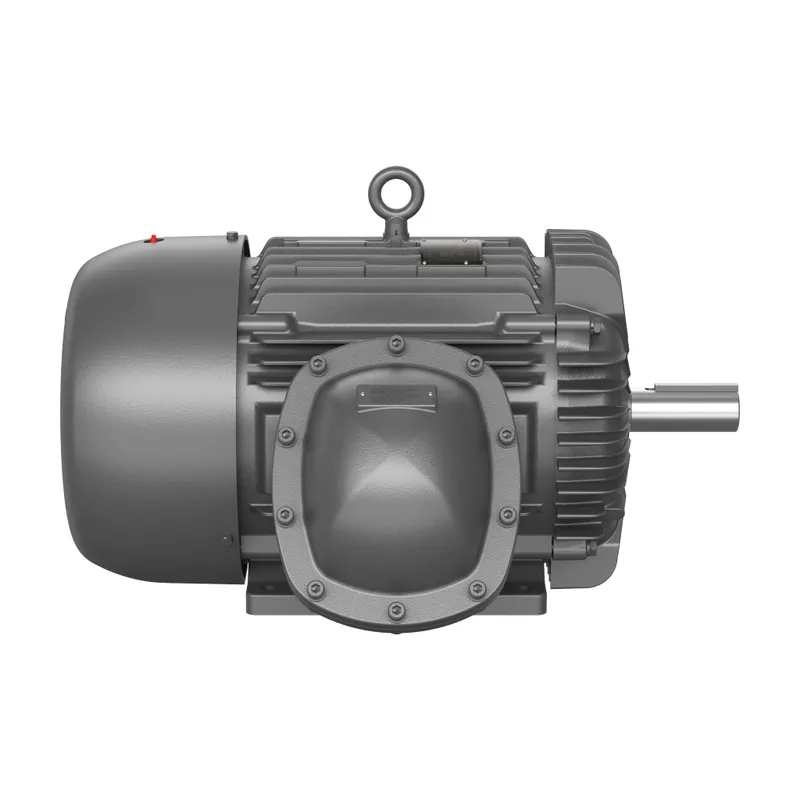

ABB DRX32364T

30HP,1180//980RPM,3PH,60HZ,326T,XPF

MPN
DRX32364T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX32364T?

Explosion Proof Drill Rig Duty 25 Hp 190 V (DRX32364T)

Specifications

Ordering

Catalog NumberDRX32364T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor78 %
Rated Efficiency93 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power25 Hp, 30.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size326T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight766 lb
Product Net Width32.5 in
Dimension Diagram12LY-000-234

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

DRX32364T: frequently asked questions

When can DRX32364T be shipped?

DRX32364T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX32364T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX32364T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX32364T, subject to availability and destination.
