Home / ABB / XP Drill Rig Duty / ABB DRX322564T
ABB

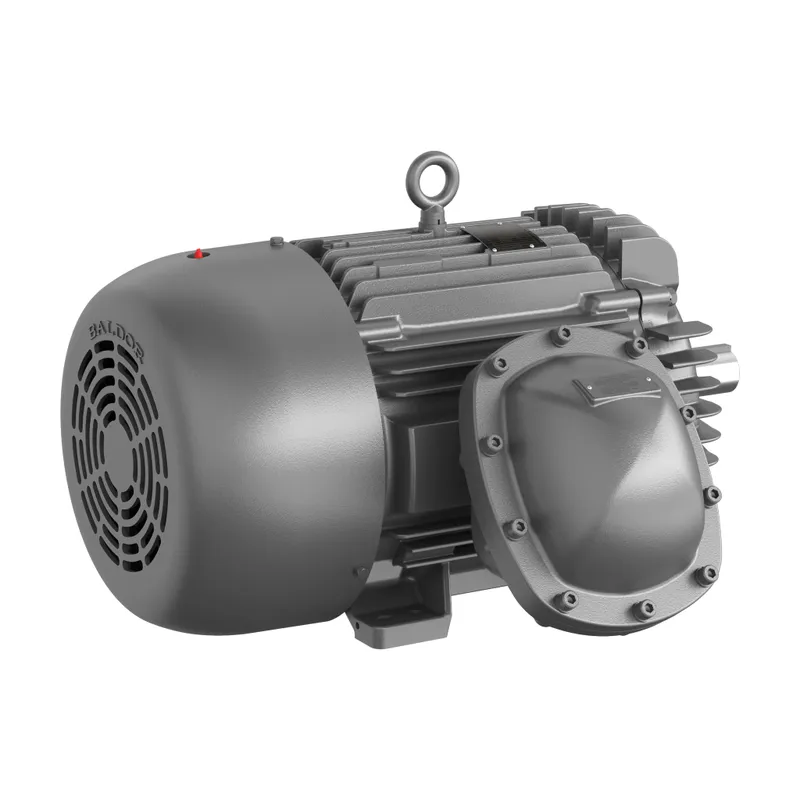

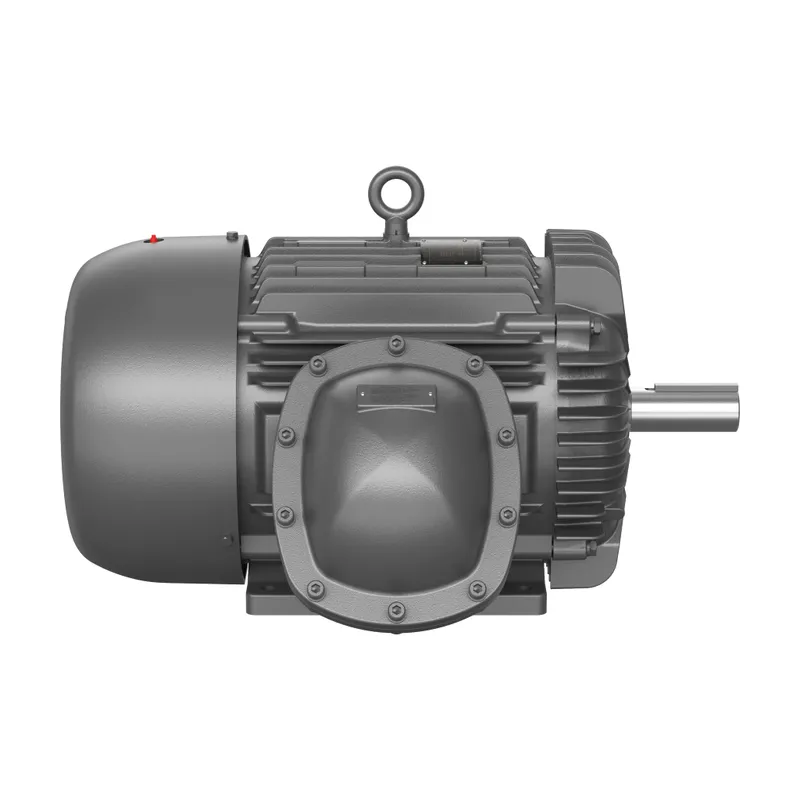

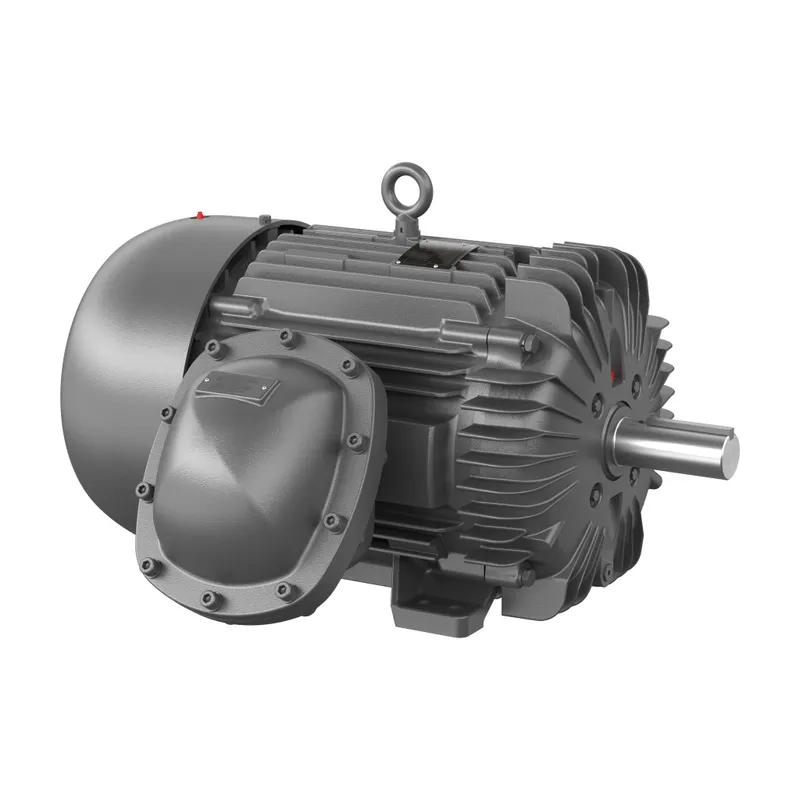

ABB DRX322564T

25HP,1180//985RPM,3PH,60HZ,324T,XPF

MPN
DRX322564T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX322564T?

Explosion Proof Drill Rig Duty 20 Hp 190 V (DRX322564T)

Specifications

Ordering

Catalog NumberDRX322564T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor79 %
Rated Efficiency93 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power20 Hp, 25.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialIron
Motor Frame Size324T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight741 lb
Product Net Width32.5 in
Dimension Diagram12LY-000-234

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor
