Home / ABB / XP Drill Rig Duty / ABB DRX28344T
ABB

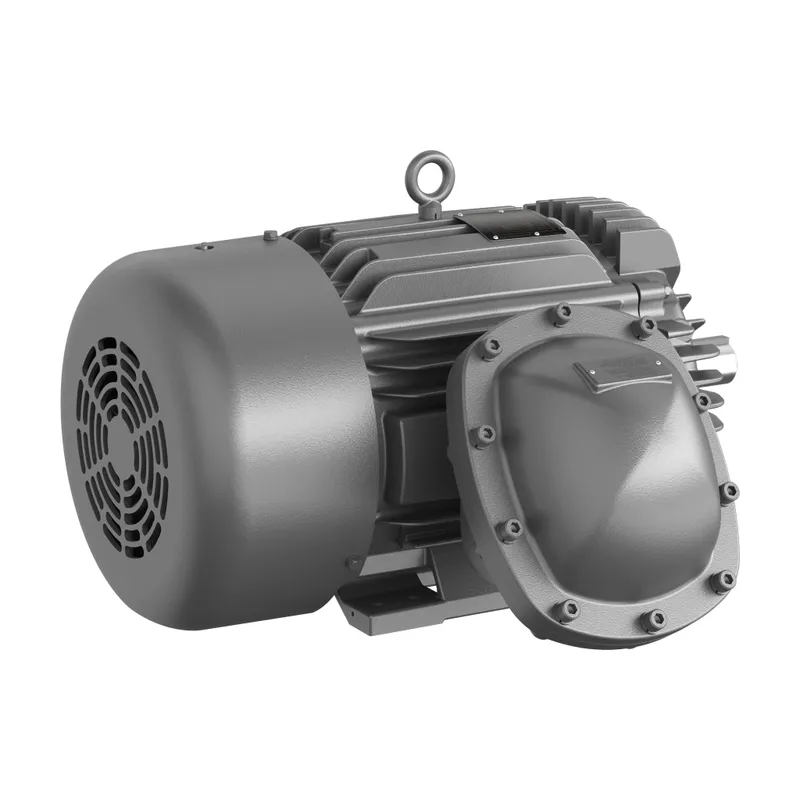

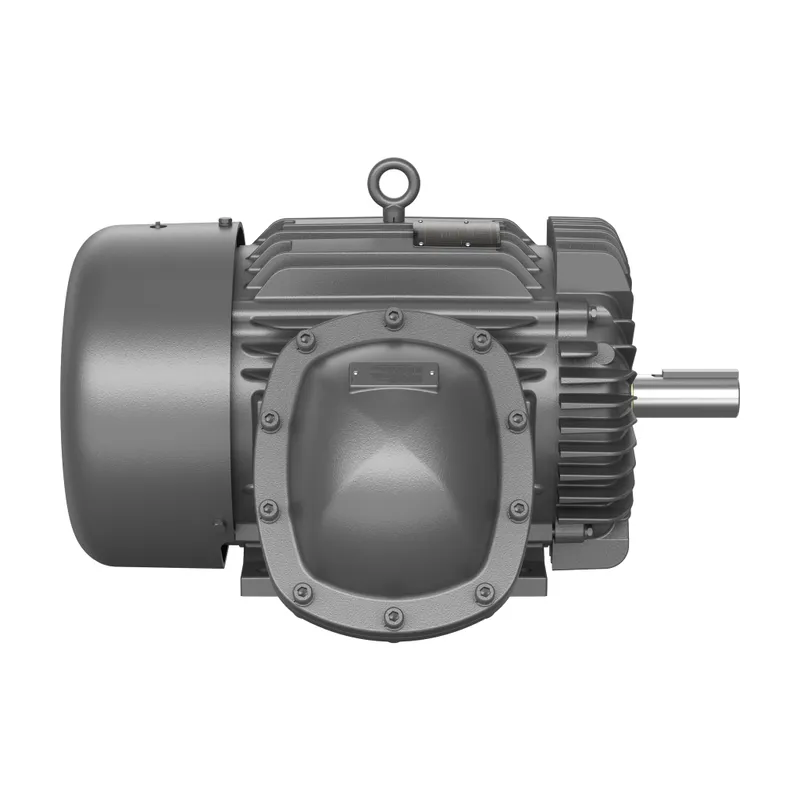

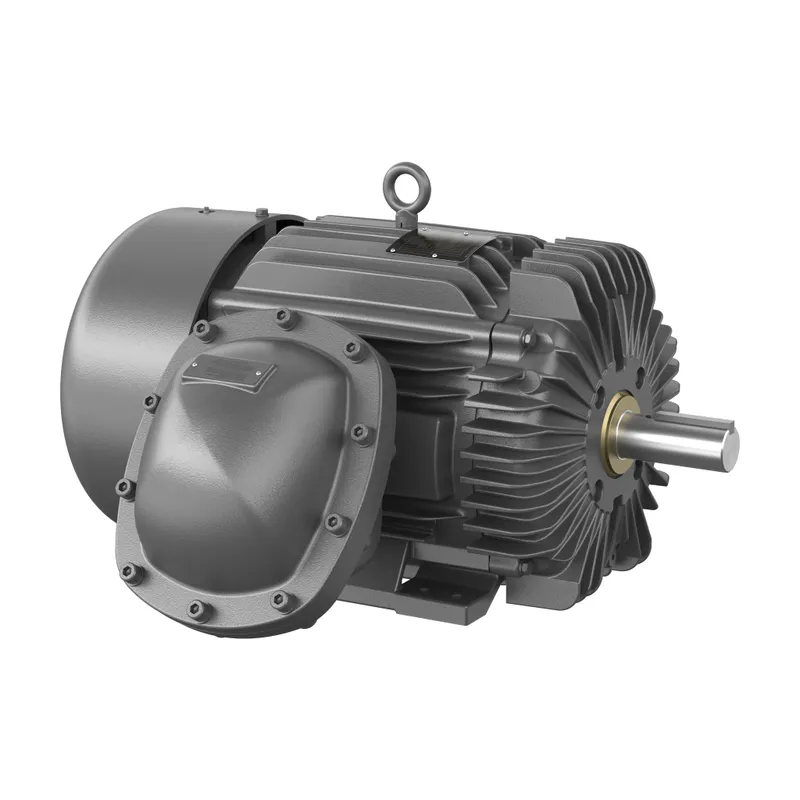

ABB DRX28344T

30HP,1770//1470RPM,3PH,60HZ,286T,XP

MPN
DRX28344T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX28344T?

Explosion Proof Drill Rig Duty 25 Hp 190 V (DRX28344T)

Specifications

Ordering

Catalog NumberDRX28344T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor80 %
Rated Efficiency93.60 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power25 Hp, 30.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialIron
Motor Frame Size286T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height25.625 in
Product Net Weight461 lb
Product Net Width32.5 in
Dimension Diagram10LYG974

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

DRX28344T: frequently asked questions

When can DRX28344T be shipped?

DRX28344T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX28344T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX28344T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX28344T, subject to availability and destination.
