ABB

ABB DRX28344T-5

30HP,1770RPM,3PH,60HZ,286T,XPFC,F1

MPN
DRX28344T-5
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB DRX28344T-5?

Explosion Proof Drill Rig Duty 30 Hp 575 V (DRX28344T-5)

Specifications

Ordering

Catalog NumberDRX28344T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency93.60 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power30 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size286T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height29.5 in
Product Net Weight606.999 lb
Product Net Width34.5 in
Dimension Diagram10LYE950

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

DRX28344T-5: frequently asked questions

When can DRX28344T-5 be shipped?

DRX28344T-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX28344T-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX28344T-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX28344T-5, subject to availability and destination.

More ABB parts

ABB DRX28264T – 20HP,1180//980RPM,3PH,60HZ,286T,XPF
ABB
DRX28264T

20HP,1180//980RPM,3PH,60HZ,286T,XPF

ABB DRX28324T – 30HP,3520//2920RPM,3PH,60HZ,286TS,X
ABB
DRX28324T

30HP,3520//2920RPM,3PH,60HZ,286TS,X

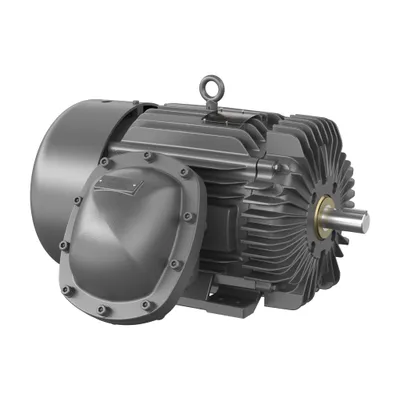

ABB DRX28324T-5 – 30HP,3520RPM,3PH,60HZ,286TS,XPFC,F1
ABB
DRX28324T-5

30HP,3520RPM,3PH,60HZ,286TS,XPFC,F1

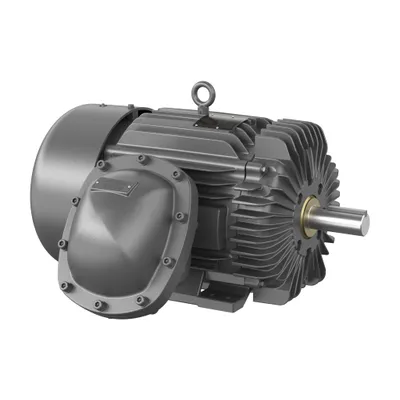

ABB DRX28344T – 30HP,1770//1470RPM,3PH,60HZ,286T,XP
