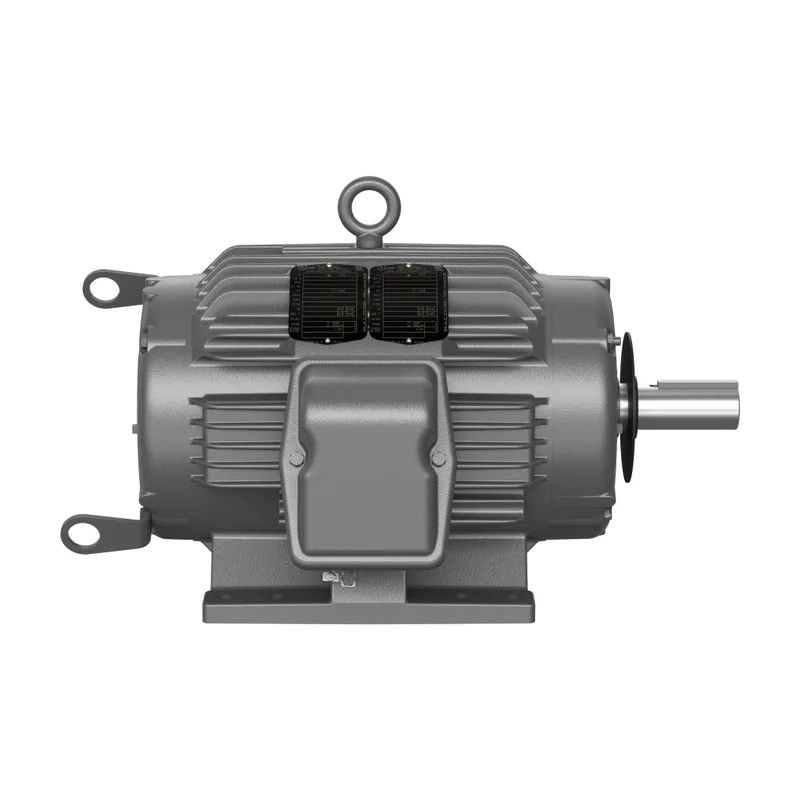

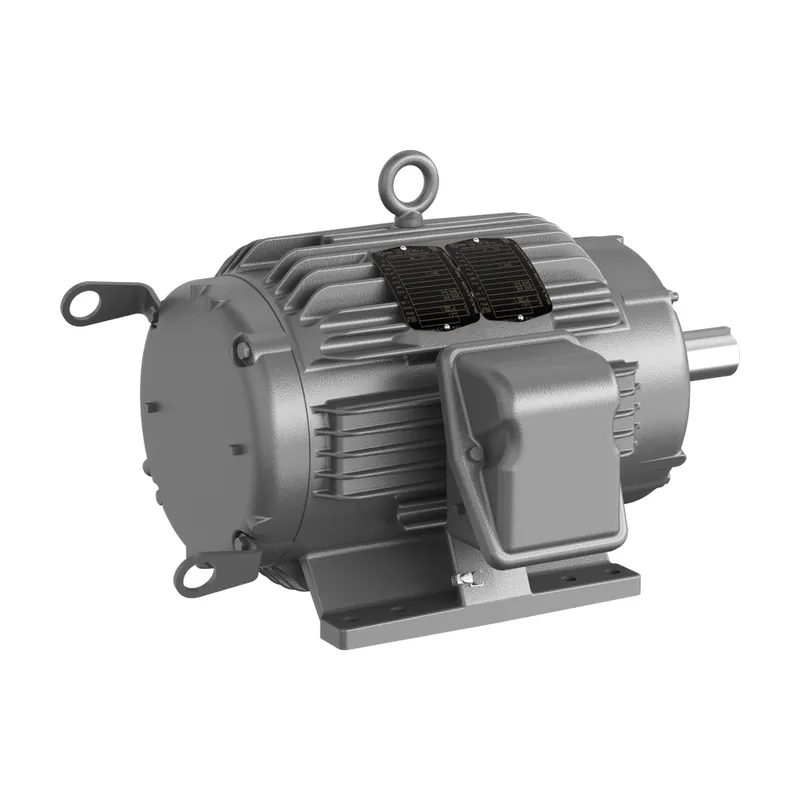

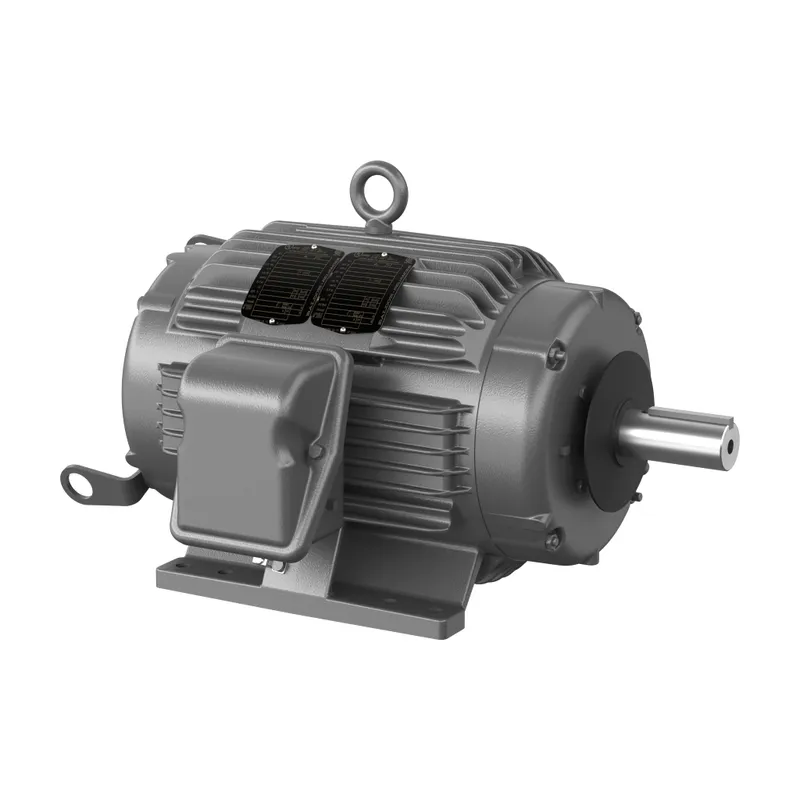

ABB CTM2334T

20HP,1760RPM,3PH,60HZ,256T,0760M,TE

MPN: CTM2334T
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CTM2334T?

Chiller/Cooling Tower 20 Hp 230 V (CTM2334T)

Specifications

Ordering

Catalog Number	CTM2334T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Energy Efficiency (NEMA 12-11), IE2, Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	83 %
Rated Efficiency	91 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Iron
Motor Frame Size	256T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.625 in
Product Net Weight	245 lb
Product Net Width	18.125 in
Dimension Diagram	07LYN395

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
