ABB

ABB CTM3665T

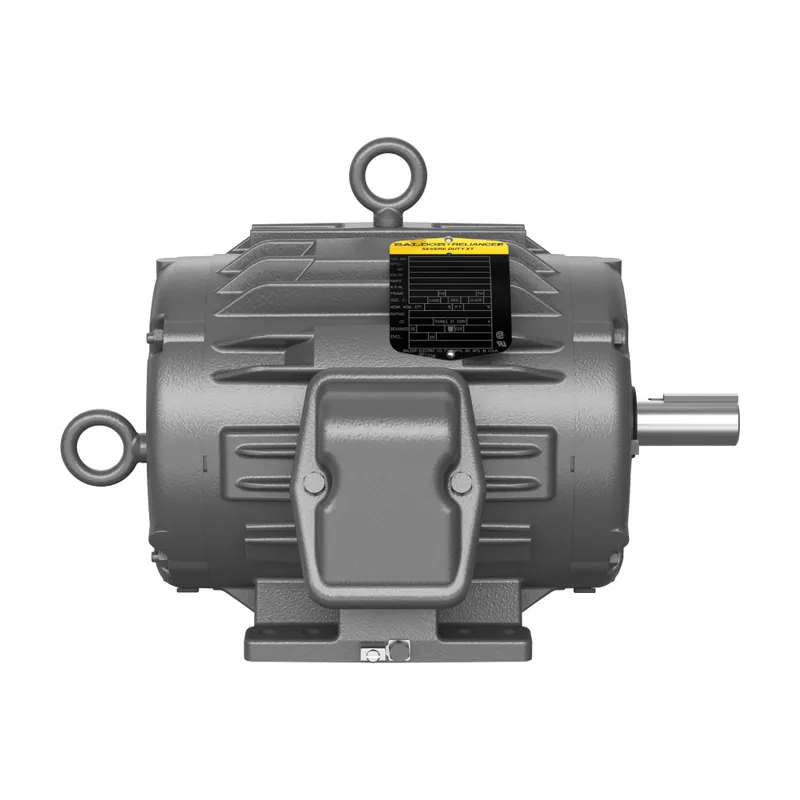

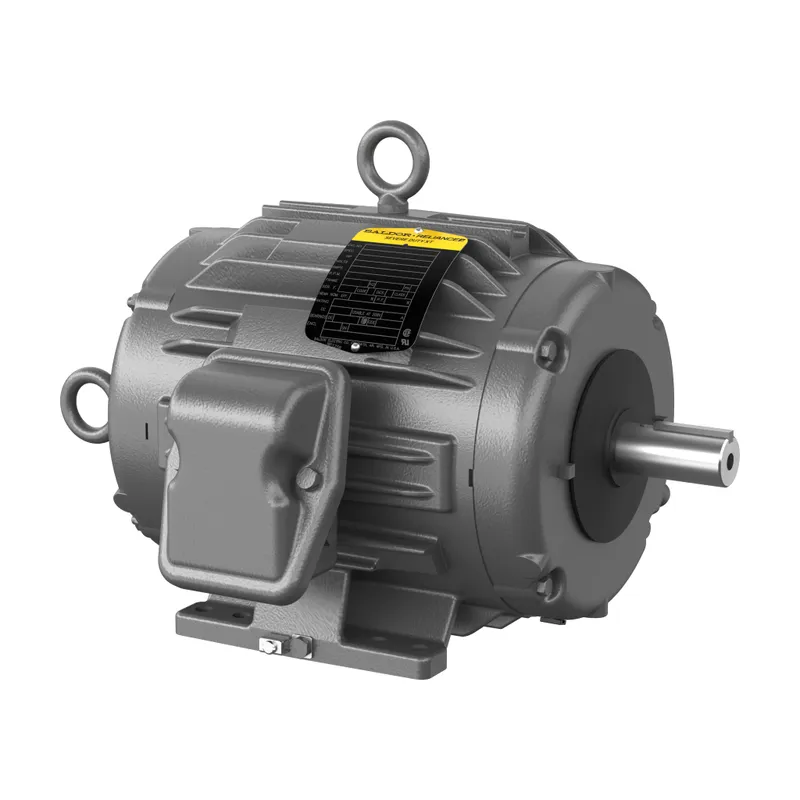

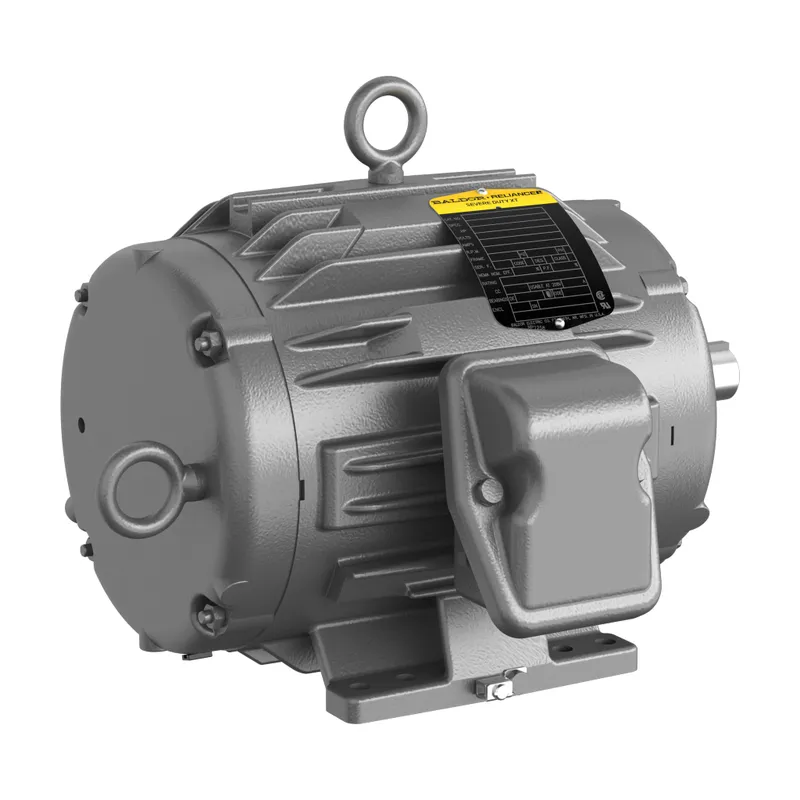

5HP,1750RPM,3PH,60HZ,184T,0634M,TEA

MPN: CTM3665T
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CTM3665T?

Chiller/Cooling Tower 5 Hp 208 V (CTM3665T)

Specifications

Ordering

Catalog Number	CTM3665T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Energy Efficiency (NEMA 12-11), IE2
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	77 %
Rated Efficiency	87.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Iron
Motor Frame Size	184T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	100 lb
Product Net Width	16.125 in
Dimension Diagram	06LYK700

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
