Home / ABB / Chiller/Cooling Tower / ABB CTM1767T

ABB

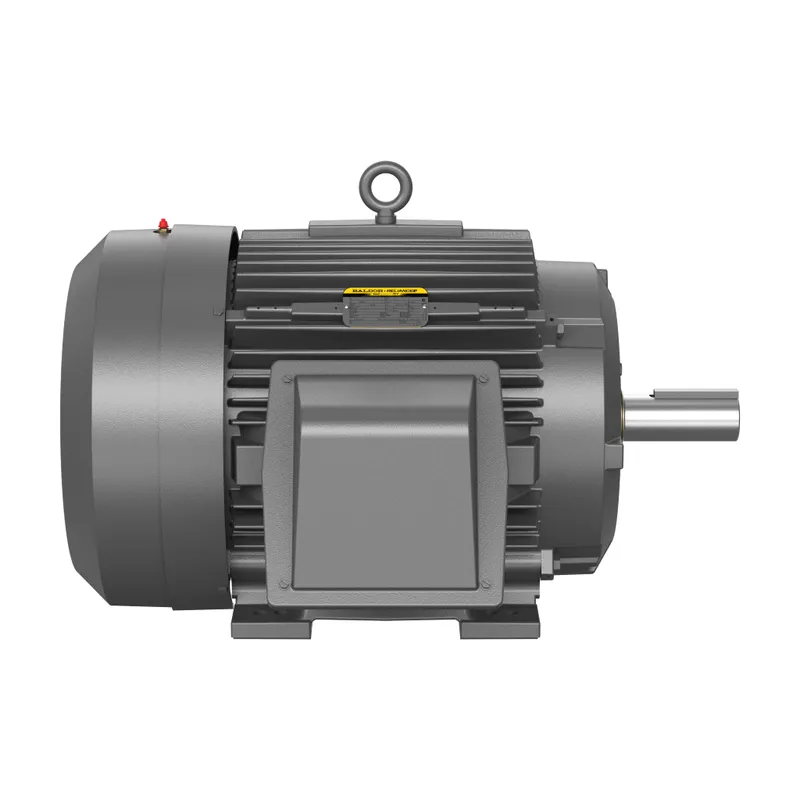

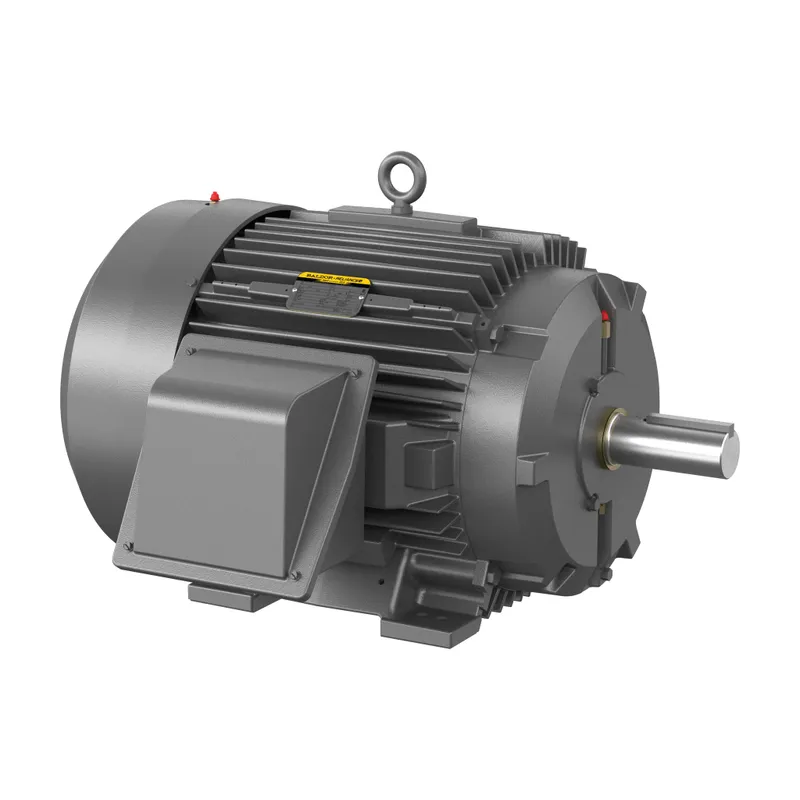

ABB CTM1767T

60HP,1775RPM,3PH,60HZ,364T,TEFC,FOO

MPN: CTM1767T
Category: Chiller/Cooling Tower

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CTM1767T?

Chiller/Cooling Tower 15 Hp 460 V (CTM1767T)

Specifications

Ordering

Catalog Number	CTM1767T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P, 8P
Number of Speeds	Two Speed
Rated Efficiency	93 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min, 900 r/min
Output Power	15 Hp, 60 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	364T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	836 lb
Product Net Width	32.5 in
Dimension Diagram	611740-501-SH1

Certificates and Declarations

Certification Agency	CCSA US
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor

CTM1767T: frequently asked questions

When can CTM1767T be shipped?

CTM1767T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CTM1767T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CTM1767T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CTM1767T, subject to availability and destination.
