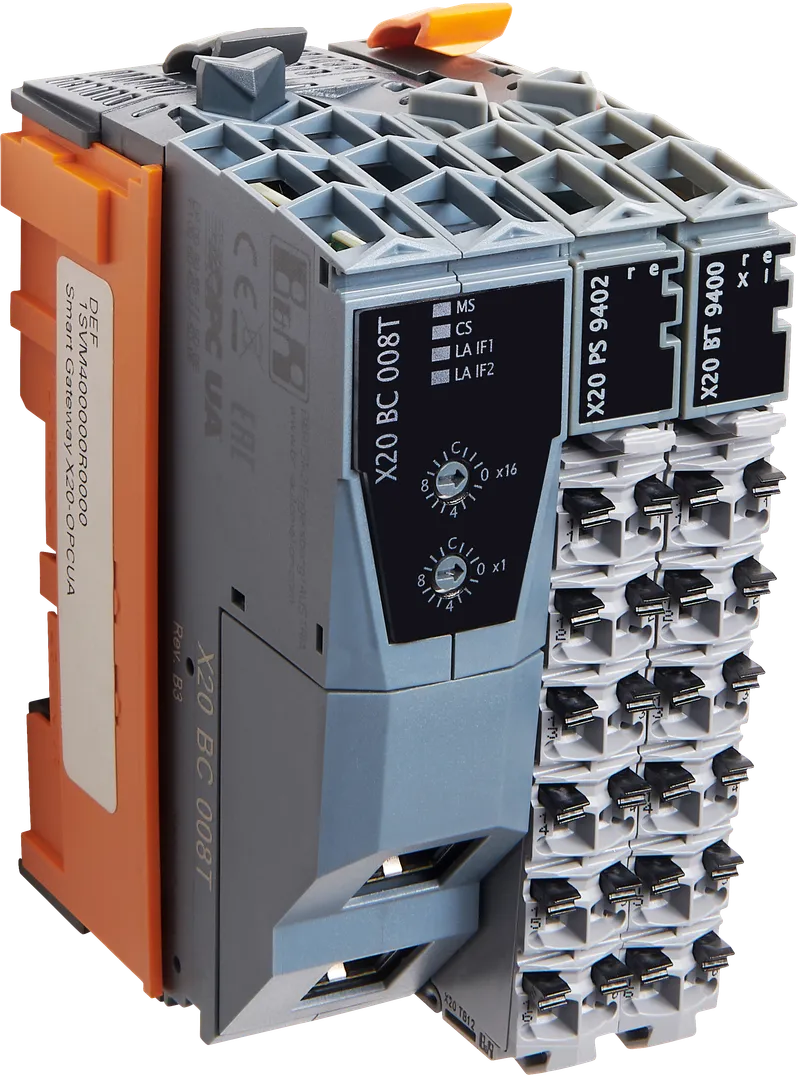

ABB 1SVM400000R0000 – SGWX20-OUA.1 Smart Gateway X20-OPCUA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.22 kg |
| UPC / EAN | 4053546053517 |
Shipping & availability
When can 1SVM400000R0000 be shipped?
1SVM400000R0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SVM400000R0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SVM400000R0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SVM400000R0000, subject to availability and destination.
The SGWX20-OUA is an OPC-UA FX gateway for Novolink devices. It allows remote control of connected motors or other loads and provides access to a selected number of measured process values (e.g. current or energy). Any OPC UA client can read or write data from Novolink modules connected to the bus controller. There is an integrated switch for daisy-chaining and 2x 1 Gbit/s full-duplex Ethernet ports. Security is built-in supporting user roles and encrypted communication.
Specifications
General
| Order code (ABB product ID) | 1SVM400000R0000 |
| Type | SGWX20-OUA.1 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85176200 |
Dimensions
| Product Net Width | 55.8 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Height | 103 mm |
| Product Net Weight | 0.22 kg |
Technical
| Standards | IEC 61131-2 |
| Power Loss | Approximately 4.8 W |
| Connecting Capacity Control Circuit | Flexible with Ferrule 0.25 ... 1.50 mm², Flexible 0.25 ... 2.50 mm², Rigid 0.08 ... 2.50 mm² |
| Wire Stripping Length | 9 mm |
| Degree of Protection | IP20 |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | SFM.1 |
| Suitable for Product Class | Novolink Devices SFM.1 |
| Product Name | AF Contactors Modules |
Technical UL/CSA
| Connecting Capacity Control Circuit UL/CSA | Flexible with Ferrule 24 ... 16 AWG, Flexible 24 ... 14 AWG, Rigid Solid 28 ... 14 AWG |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 6. Small IT and Telecommunication Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | W |
| ETIM 7 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8 | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 9 | EC001604 - Fieldbus, decentr. periphery - communication module |
| eClass | V11.0 : 27242608 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SAC200230M0001) |
