ABB 1SVM120012R0000 – SFM1 Advanced Function Module with X2X
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
| UPC / EAN | 4053546041811 |
Shipping & availability
When can 1SVM120012R0000 be shipped?
1SVM120012R0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SVM120012R0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SVM120012R0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SVM120012R0000, subject to availability and destination.

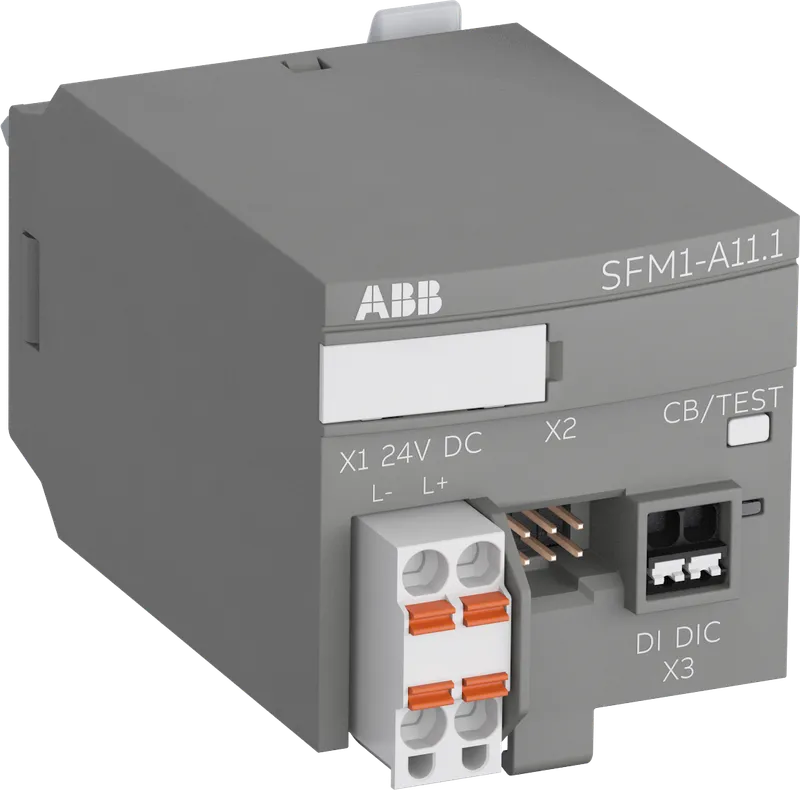

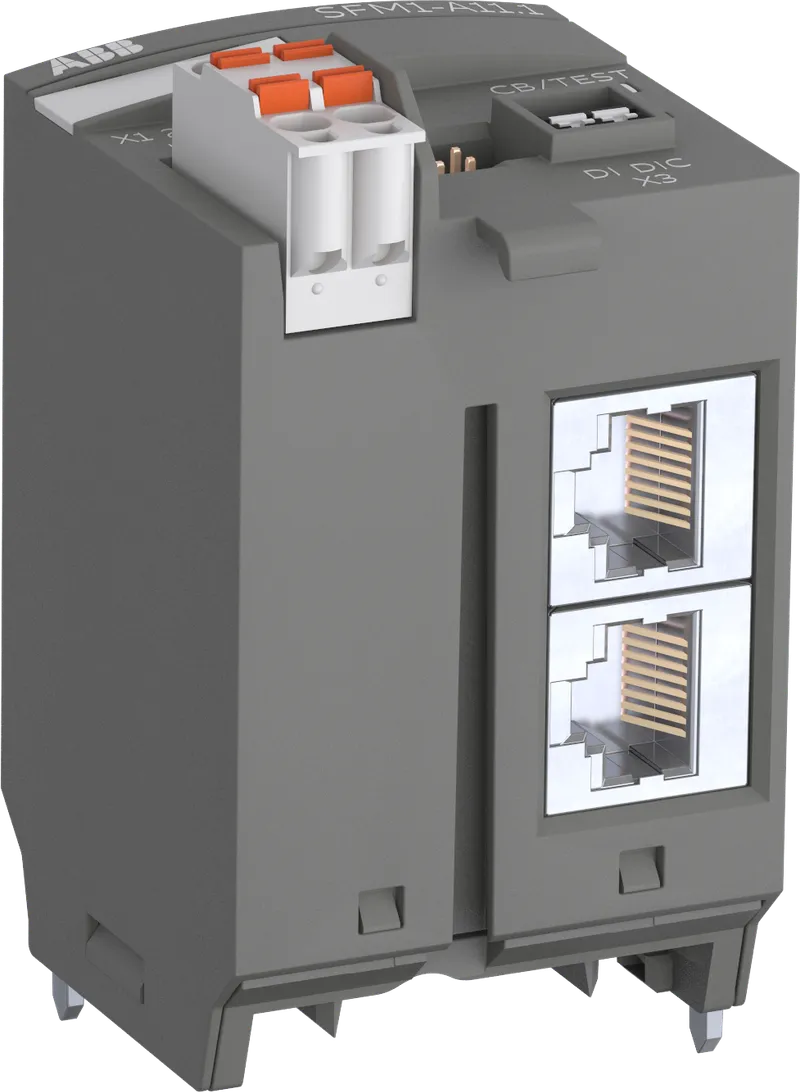

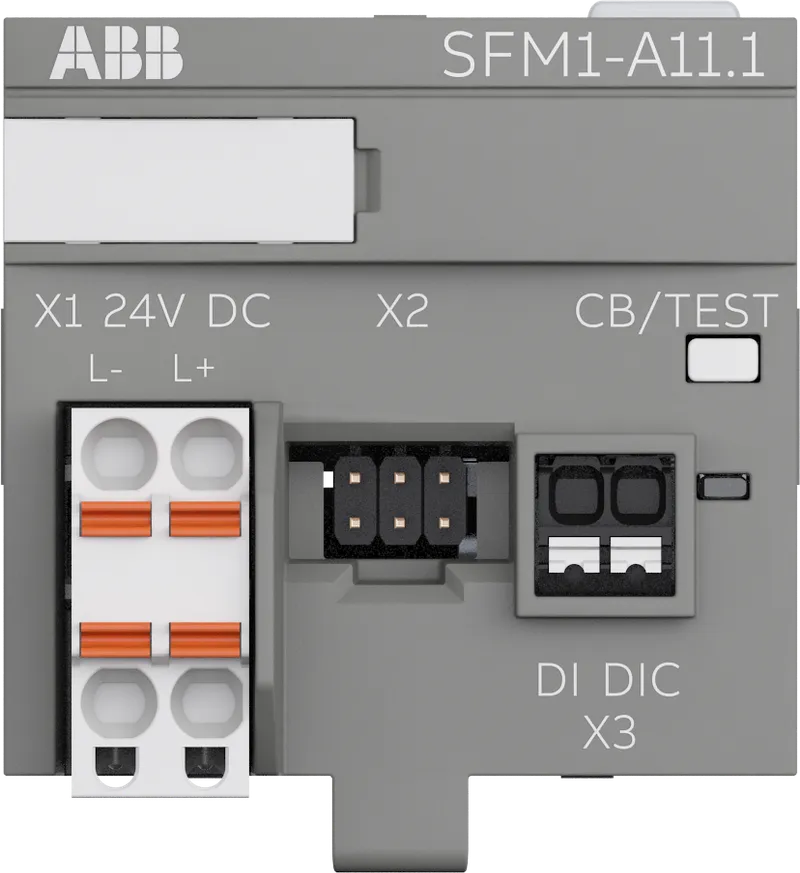

The Smart Function Module SFM1-A11.1 allows to integrate AF contactors into a digital communication network. The module can be snapped onto AF09 – AF96 contactors with 24V coil voltage. The module is equipped with two X2X interfaces for excellent integration into B&R PLCs and allows monitoring and control of a contactor via bus. One digital input makes it possible to pick up an auxiliary signal, e.g. from a short circuit protection device. The AF contactor is mechanically linked which in turn provides visual feedback of the contactor position on the front of the SFM.
Specifications
General
| Order code (ABB product ID) | 1SVM120012R0000 |
| Type | SFM1-A11.1 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 43 mm |
| Product Net Height | 71 mm |
| Product Net Weight | 0.11 kg |
Technical
| Standards | UL 60947-4-1, UL 60947-1 |
| Power Loss | Approximately 1.08 W |
| Degree of Protection | IP20 |
| Suitable For | AF09 - AF96 Contactors (24 V DC coil) |
| Product Name | Advanced Function Module |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | B |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121552 |
| IDEA Granular Category Code (IGCC) | 4775 >> Electrical control modules |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (2CDC100017M0201) | |
| Instructions and Manuals (1SVC120010M0000) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
