ABB 1SVM823000R0500 – Connection cable SFM RJ45-X20TB 5m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.192 kg |
| UPC / EAN | 4053546047714 |
Shipping & availability
When can 1SVM823000R0500 be shipped?
1SVM823000R0500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SVM823000R0500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SVM823000R0500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SVM823000R0500, subject to availability and destination.

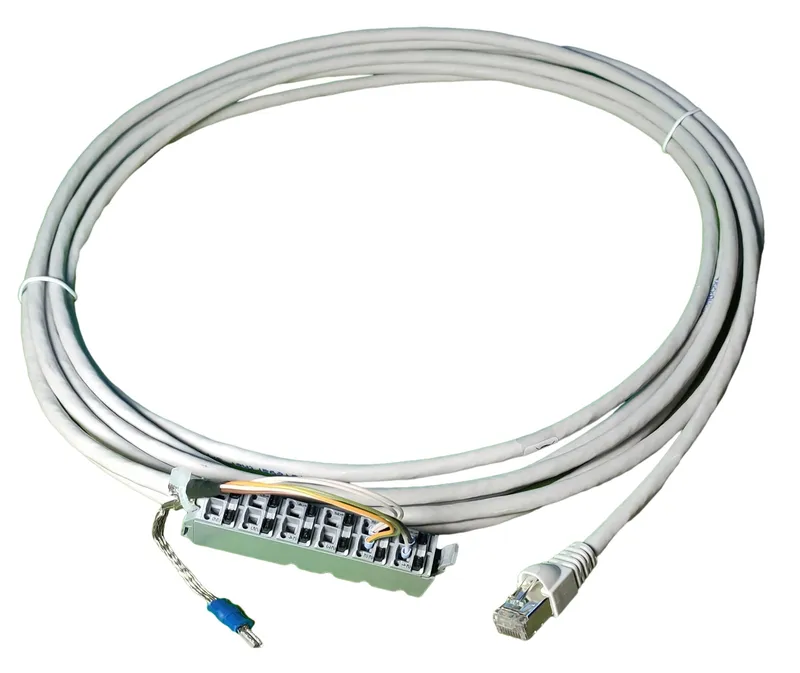

The SFM-CAB-RJTB.1-500 is a ready made cable to connect the SFM.1 module with the X20BT9400 module. On one side, the SFM-CAB-RJTB has a cable shield clamp which is latched to the terminal block. All the required wires are already connected to the X20 terminal block. Cable ties are used to press the shield against the grounding plate. The other side of the cable has a RJ45 plug which can be directly connected to the SFM1 module.
Specifications
General
| Order code (ABB product ID) | 1SVM823000R0500 |
| Type | SFM-CAB-RJTB.1-500 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85444290 |
Dimensions
| Product Net Width | 20 cm |
| Product Net Depth / Length | 3 cm |
| Product Net Height | 23 cm |
| Product Net Weight | 192 g |
Technical
| Suitable For | 1SVM120012R0000 |
| Product Name | Connecting Cable |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC001855 - Sensor-actuator patch cord |
| ETIM 8 | EC001855 - Sensor-actuator patch cord |
| ETIM 9 | EC001855 - Sensor-actuator patch cord |
| eClass | V11.0 : 27060313 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (2CDC100017M0201) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

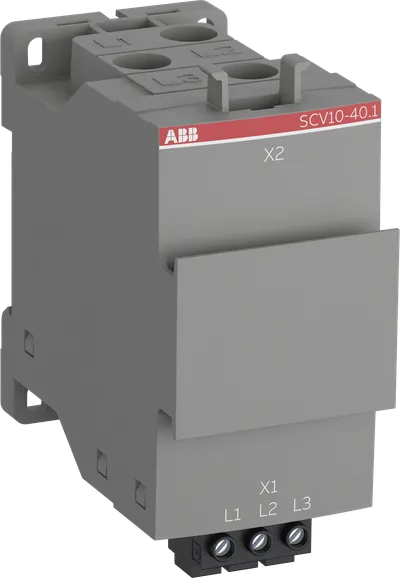

Available on requestSCV10-40 Current - Voltagesensor 40 A, 690 V AC

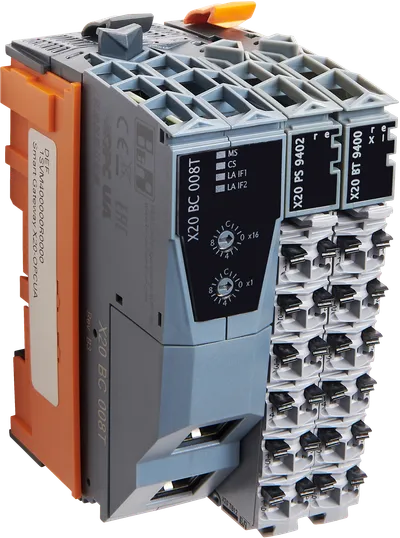

Available on requestSGWX20-OUA.1 Smart Gateway X20-OPCUA

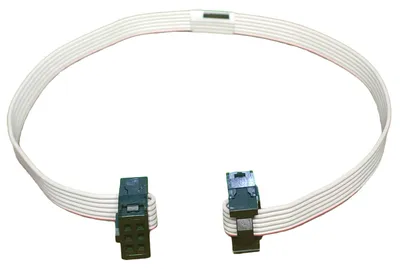

Available on requestConnection cable SFM to Sensor 0,25m

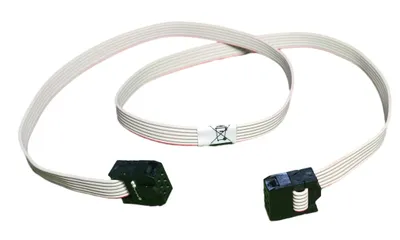

Available on requestConnection cable SFM to Sensor 0,5m
