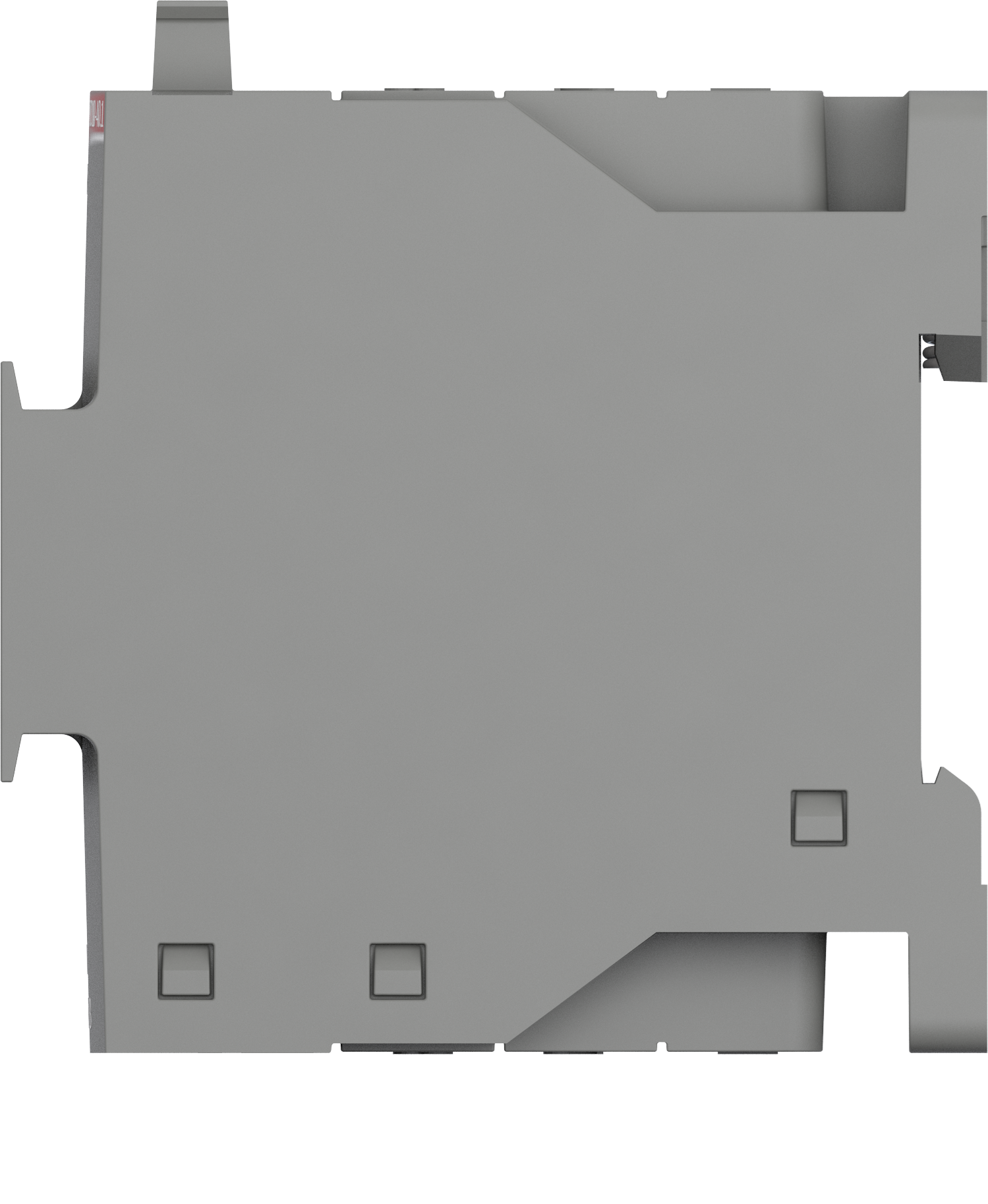

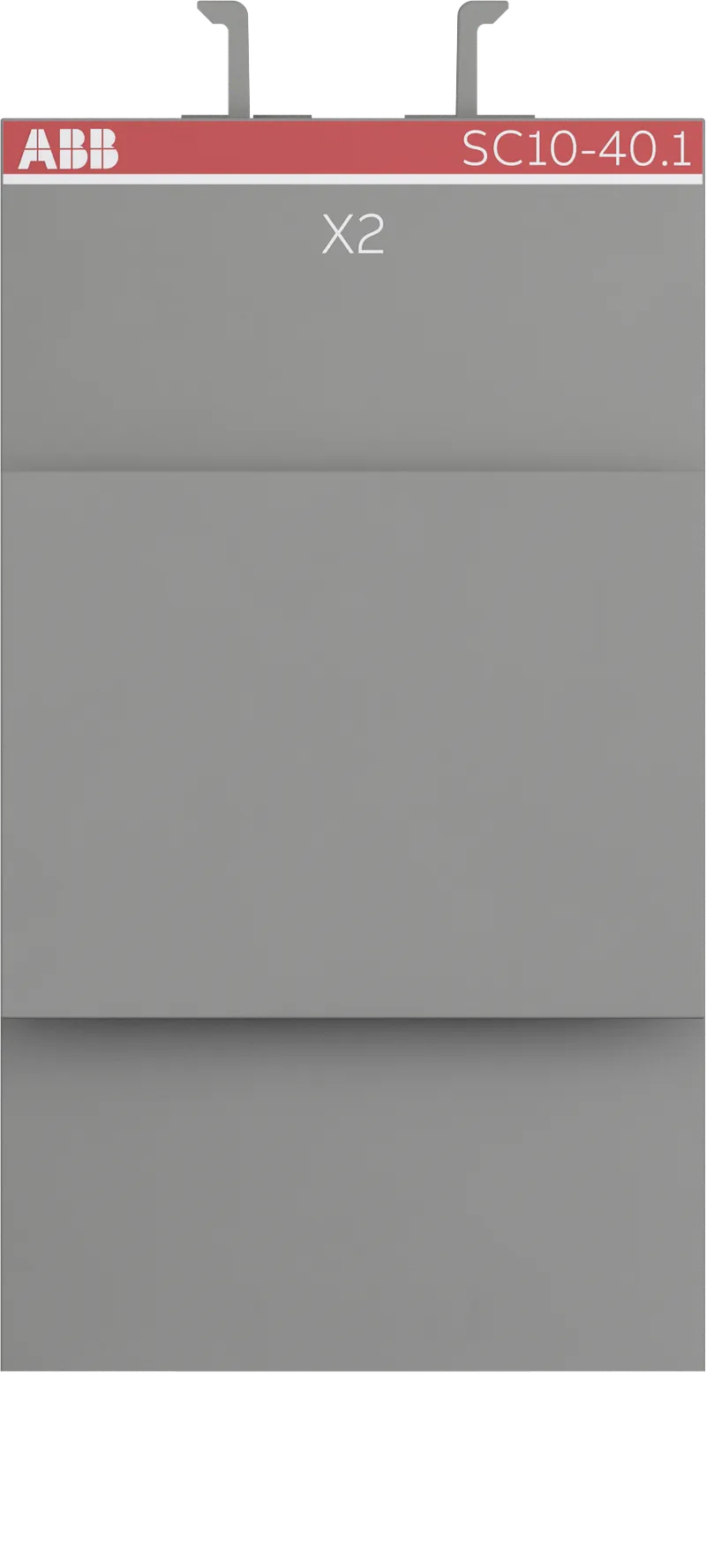

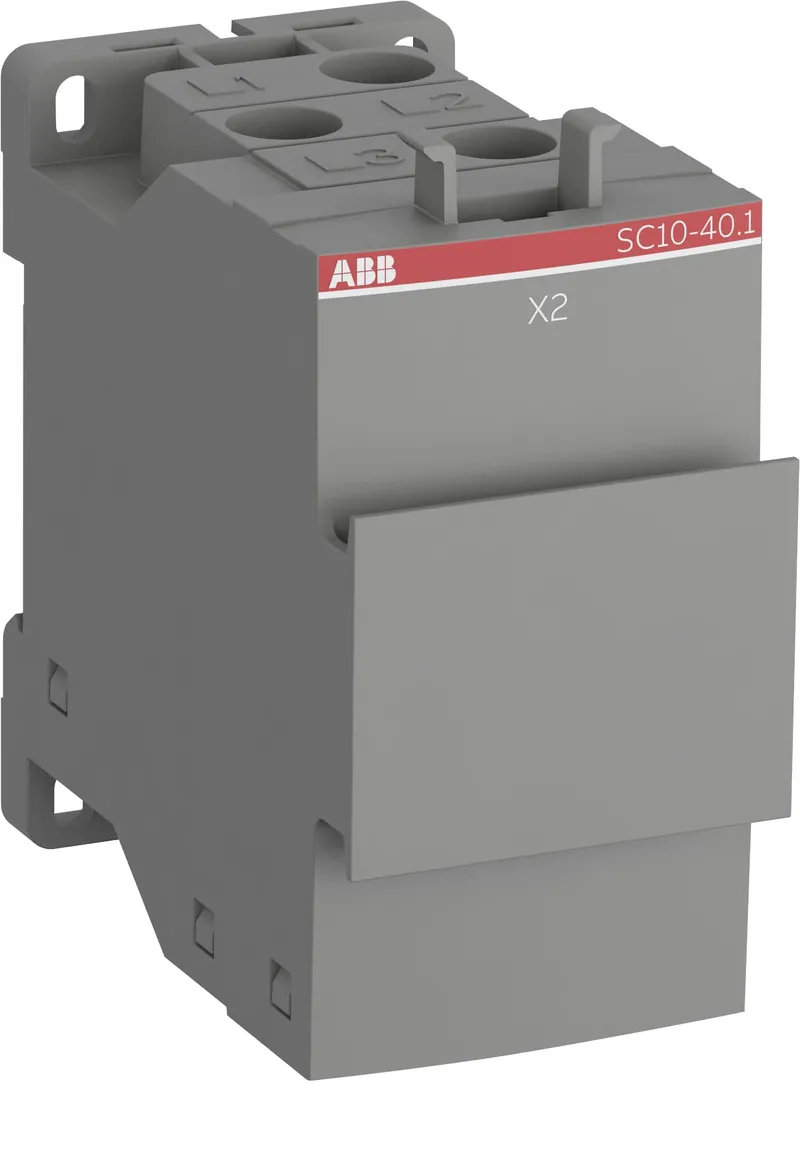

ABB 1SVM310010R0000 – SC10-40 Currentsensor 40 A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.195 kg |
| UPC / EAN | 4053546050011 |
Shipping & availability
When can 1SVM310010R0000 be shipped?
1SVM310010R0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SVM310010R0000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SVM310010R0000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SVM310010R0000, subject to availability and destination.
The SC10-40 is an intelligent sensor unit for measuring current, frequency and further valuesIt is equipped with feed through current sensors to measure the current in all three phases of the connected load. A ribbon cable connects the SC10 with the SFM1 module and is also supplied from there. The SC10-40 offers thermal overload protection according to IEC/EN 60947 for 1/3 phase induction motors. Relevant parameters like the trip class and nominal current can be configured from within the PLC.
Specifications
General
| Order code (ABB product ID) | 1SVM310010R0000 |
| Type | SC10-40.1 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 80 mm |
| Product Net Height | 82 mm |
| Product Net Weight | 0.195 kg |
Technical
| Number of Poles | 3P |
| Standards | IEC/EN 60947-4-1, IEC/EN 60947-1 |
| Rated Operational Voltage | 277 V AC, 480 V AC, 400 V AC, 690 V AC |
| Rated Frequency (f) | Main Circuit 60 Hz, Main Circuit 50 Hz |
| Rated Operational Current (I<sub>e</sub>) | 40 A |
| Power Loss | Approximately 0.48 W |
| Degree of Protection | IP20 |
| Suitable For | 1SVM120012R0000 |
| Product Name | Currentsensor |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
| Pollution Degree | 3 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | B |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121552 |
| IDEA Granular Category Code (IGCC) | 4776 >> Electronic motor control and protection device |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SVC320010M0000) | |
| Data Sheet, Technical Information (2CDC100017M0201) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

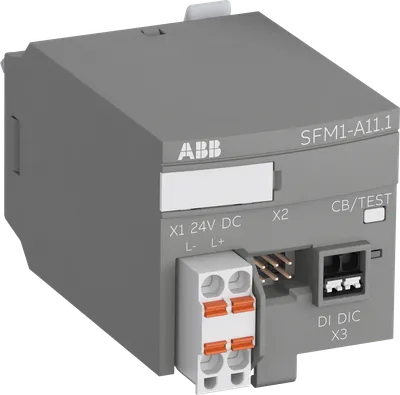

Available on requestSFM1 Advanced Function Module with X2X
