ABB 1SFN019820R1011 – CAL18X-11 Auxiliary Contact Block

MPN: 1SFN019820R1011 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
Country of origin	India
UPC / EAN	7320500500361

Shipping & availability

When can 1SFN019820R1011 be shipped?

1SFN019820R1011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFN019820R1011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFN019820R1011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN019820R1011, subject to availability and destination.

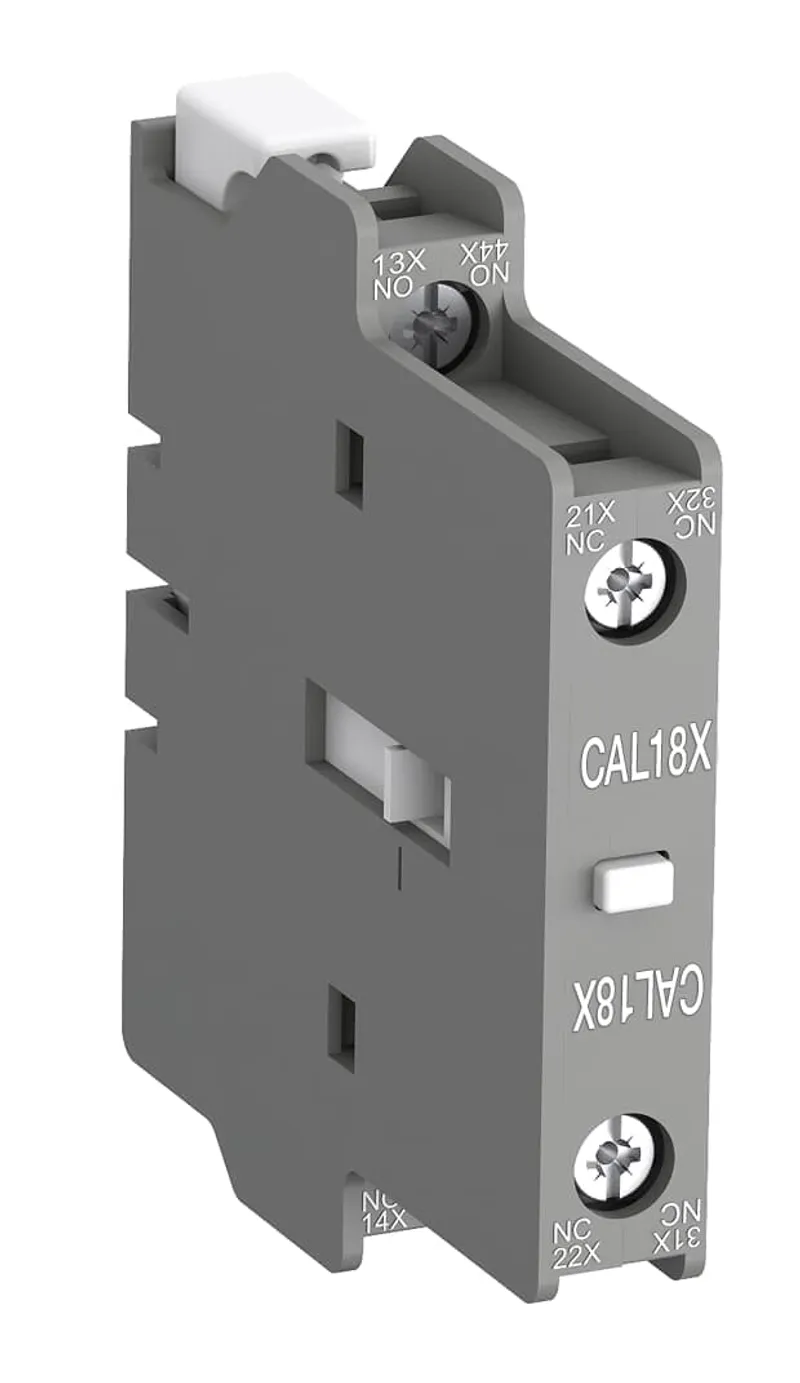

CAL18X-11 Auxiliary Contact Block

Specifications

General

Order code (ABB product ID)	1SFN019820R1011
Type	CAL18X-11
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	2 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	64.5 mm
Product Net Depth / Length	17.1 mm
Product Net Height	74 mm
Product Net Weight	0.04 kg

Technical

Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Mechanical Durability	10 million
Maximum Mechanical Switching Frequency	3600 cycles per hour
Degree of Protection	IP20
Terminal Type	Screw Terminals
Suitable For	AX95, AX115, AX150, AX185, AX205
Product Name	Auxiliary Contact Block

Environmental

Maximum Operating Altitude Permissible

Without Derating 3000 m

Material Compliance

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121529

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (7)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
CQC Certificate (CQC2013010305658795)
Declaration of Conformity - CCC (2020980305001093)
Declaration of Conformity - CE (2CMT2015-005449)
Declaration of Conformity - UKCA (2CMT2020-006119)
UL Certificate (20160916-E76003)
