ABB 1SFN010920R3011 – CAL20-11B Auxiliary Contact Block
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.045 kg |
| UPC / EAN | 7320500515372 |
Shipping & availability
When can 1SFN010920R3011 be shipped?
1SFN010920R3011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN010920R3011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN010920R3011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN010920R3011, subject to availability and destination.
2 pole screw type side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments. Mounted outside of CAL20-11 block.
Specifications
General
| Order code (ABB product ID) | 1SFN010920R3011 |
| Type | CAL20-11B |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85361090 |
Dimensions
| Product Net Width | 64.5 mm |
| Product Net Depth / Length | 17.1 mm |
| Product Net Height | 74 mm |
| Product Net Weight | 0.045 kg |
Technical
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Solid 1x 1 ... 4 mm², Solid 2x 1 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit 1 x 5.5, Auxiliary Circuit Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | GF875, GF1050, CAL20-11 |
| Suitable for Product Class | Block Contactors |
| Product Name | Auxiliary Contact Block |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121529 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SFC100003M0001) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (9)
More ABB parts
Available on requestCEL19-10 Auxiliary Contact Block
Available on requestCEL19-01-RT Auxiliary Contact BlockAvailable on requestCEL19-10-RT Auxiliary Contact Block
Available on requestCAL20-11 Auxiliary Contact Block
Available on requestCCL18-01 Auxiliary Contact BlockAvailable on requestCCL18-01 Auxiliary Contact Block

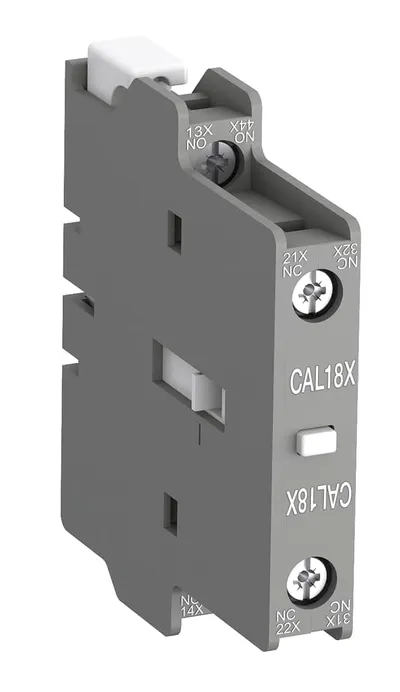

Available on requestCAL18X-11 Auxiliary Contact Block
