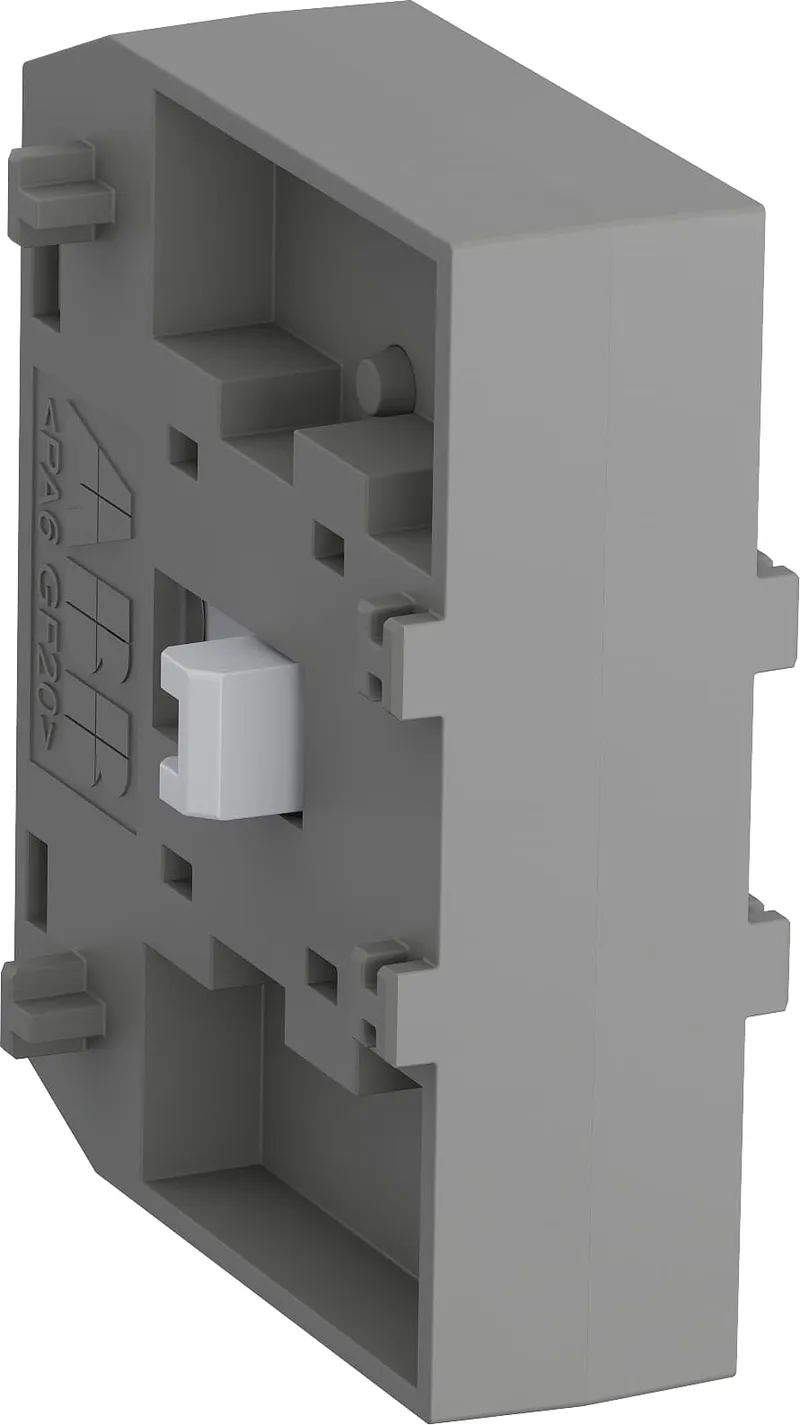

ABB 1SFN030300R1000 – VM19 Mechanical Interlock Unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
| Country of origin | India |
| UPC / EAN | 7320500492574 |
Shipping & availability
When can 1SFN030300R1000 be shipped?
1SFN030300R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN030300R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN030300R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN030300R1000, subject to availability and destination.
Mechanical interlock for use with contactors AF116…AF370. For interlocking two contactors of equal frame size
Specifications
General
| Order code (ABB product ID) | 1SFN030300R1000 |
| Type | VM19 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 70 mm |
| Product Net Depth / Length | 31.9 mm |
| Product Net Height | 58.7 mm |
| Product Net Weight | 0.05 kg |
Technical
| Terminal Type | Screw Terminals |
| Suitable For | AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370, AF116B, AF140B, AF146B, AF190B, AF205B, AF265B, AF305B, AF370B, AX260, AX300, AX370 |
| Suitable for Product Class | Block Contactors |
| Product Name | Mechanical Interlock Unit |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | R |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707469 |
| E-Number (Norway) | 4117833 |
| E-Number (Sweden) | 3210176 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SFC100012M0201) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on requestCCL18-01 Auxiliary Contact BlockAvailable on requestCCL18-01 Auxiliary Contact Block
Available on requestCAL18X-11 Auxiliary Contact Block

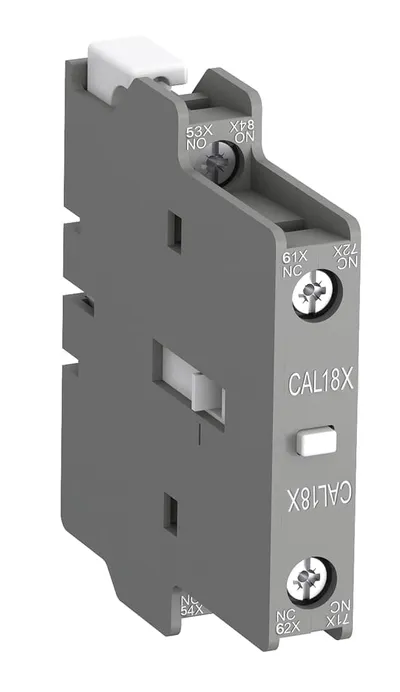

Available on requestCAL18X-11B Auxiliary Contact Block
