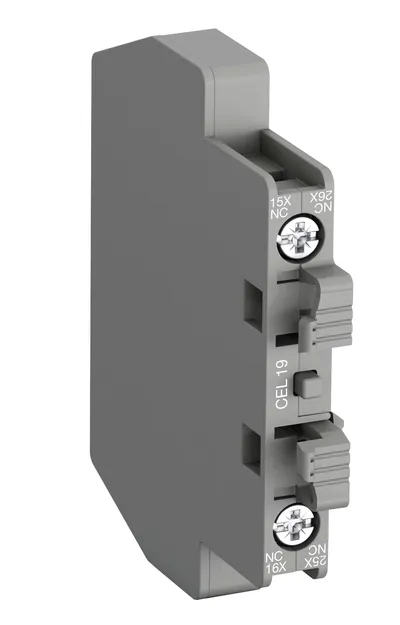

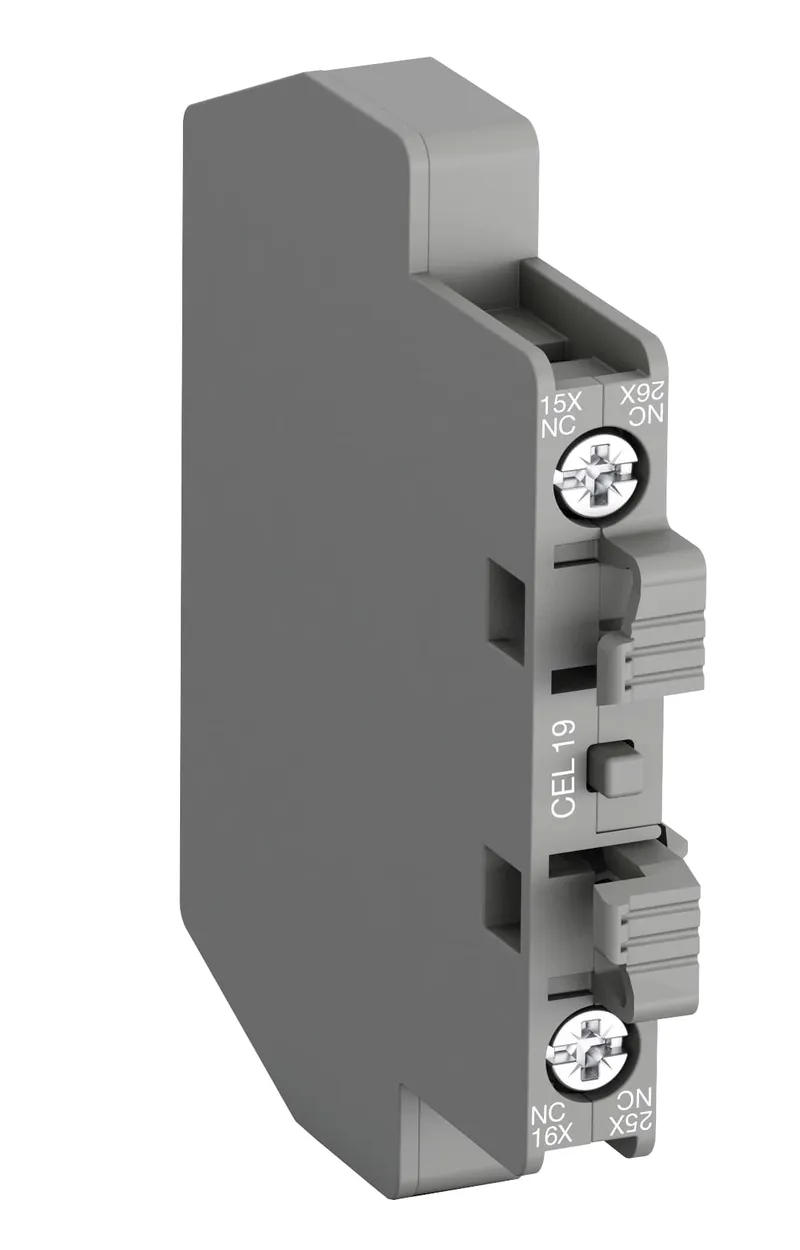

ABB 1SFN010833R1001 – CEL19-01-RT Auxiliary Contact Block

MPN: 1SFN010833R1001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.03 kg
UPC / EAN	7320500510773

Shipping & availability

When can 1SFN010833R1001 be shipped?

1SFN010833R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFN010833R1001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFN010833R1001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN010833R1001, subject to availability and destination.

Auxiliary contact block, equipped with 1 N.C. Ring Tounge terminals.

Specifications

General

Order code (ABB product ID)	1SFN010833R1001
Type	CEL19-01-RT
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	14.9 mm
Product Net Depth / Length	79 mm
Product Net Height	67.3 mm
Product Net Weight	0.03 kg

Technical

Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	1
Rated Operational Voltage	Auxiliary Circuit 125 V
Power Loss	at Rated Operating Conditions per Pole 0.15 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Ferrule 2x 0.75 ... 2.5 mm², Rigid 1 x 1 ... 4 mm², Rigid 2 x 1 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
Degree of Protection	IP20
Recommended Screw Driver	Auxiliary Circuit 1 x 5.5, Auxiliary Circuit Pozidriv 2
Tightening Torque	Auxiliary Circuit 1 N·m
Terminal Type	Ring-Tongue Terminals
Suitable For	AF116B, AF140B, AF146B, AF190B, AF205B, AF265B, AF305B, AF370B
Product Name	Auxiliary Contact Block

Material Compliance

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SFC100008M0201)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (4)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (2CMT2015-005448)
Declaration of Conformity - UKCA (2CMT2020-006119)
