ABB 1SBN060300T1000 – RA5-1 (EMB x 10) Interface Relay
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
| UPC / EAN | 3471522364869 |
Shipping & availability
When can 1SBN060300T1000 be shipped?
1SBN060300T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN060300T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN060300T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN060300T1000, subject to availability and destination.

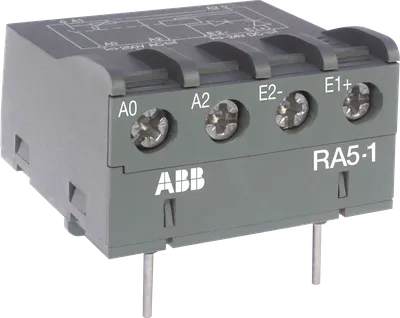

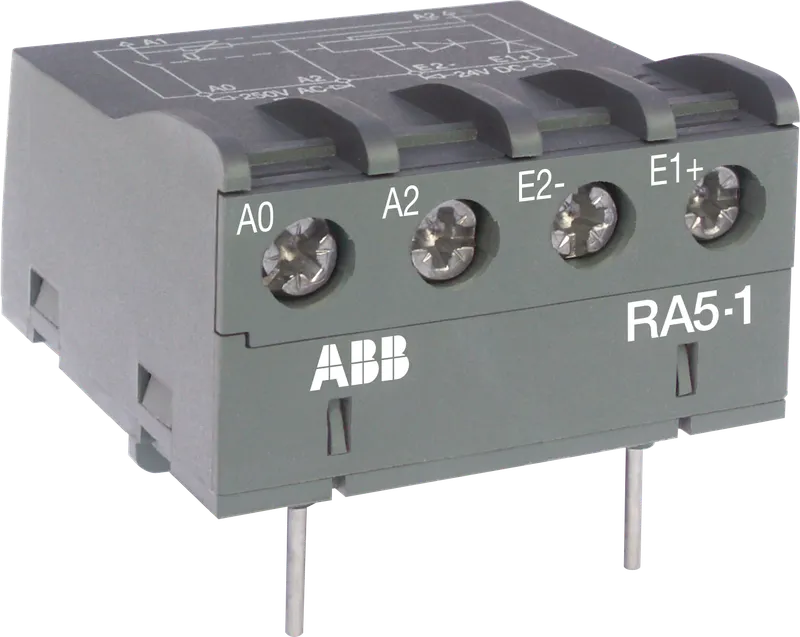

RA5-1 is an interface relay designed to receive 24 V DC signals delivered by PLC’s or other sources with a low output power and to restore them with sufficient power to operate the coils of the relevant contactors.
RA5-1 interface relay is made up of a miniature electromechanical relay equipped with a N.O. contact and with a low consumption 24 V DC coil.
The interface relay coil is controlled by the PLC while the N.O. contact ensures switching of the power contactor.
Coil switching gives rise to overvoltages which have adverse effects on the electronic devices, insulators and, more generally, on component lifetime. The RA5-1 is equipped with surge suppressors:
• on the 24 V DC relay coil via a diode,
• on the power contactor coil via a varistor.
Furthermore, the RA5-1 is protected against relay pole reversal by a diode inserted between the E1 and E2 input terminals.
RA5-1 (EMB x 10) is a multiple pack of 10 pieces.
Specifications
General
| Order code (ABB product ID) | 1SBN060300T1000 |
| Type | RA5-1 (EMB x 10) |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 44 mm |
| Product Net Depth / Length | 48 mm |
| Product Net Height | 30 mm |
| Product Net Weight | 0.05 kg |
Technical
| Standards | IEC 60255-5 |
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 250 V |
| Rated Control Circuit Voltage (U<sub>c</sub>) | DC Operation 24 V |
| Terminal Type | Screw Terminals |
| Suitable For | A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, GA75, UA16, UA26, UA30, UA50, UA63, UA75, UA95, UA110, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UA95RA, UA110RA, AX50, AX65, AX80 |
| Product Name | Interface Relay |
Environmental
| Ambient Air Temperature | Close to Contactor for Storage -40 ... 70 °C |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121500 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101019M5501) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

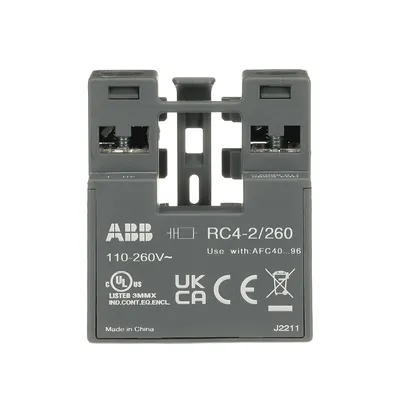

Available on requestRC4-2/260 Surge Suppressor
