ABB

ABB DRX251524T

15HP,3530//2940RPM,3PH,60HZ,254T,XP

MPN
DRX251524T
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB DRX251524T?

Explosion Proof Drill Rig Duty 10 Hp 190 V (DRX251524T)

Specifications

Ordering

Catalog NumberDRX251524T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency91 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp, 15.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size254T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight349 lb
Product Net Width23.75 in
Dimension Diagram09LYJ480

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

DRX251524T: frequently asked questions

When can DRX251524T be shipped?

DRX251524T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DRX251524T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DRX251524T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DRX251524T, subject to availability and destination.

More ABB parts

ABB DRX21724T-5 – 7.5HP,3510RPM,3PH,60HZ,213T,XPFC,F1
ABB
DRX21724T-5

7.5HP,3510RPM,3PH,60HZ,213T,XPFC,F1

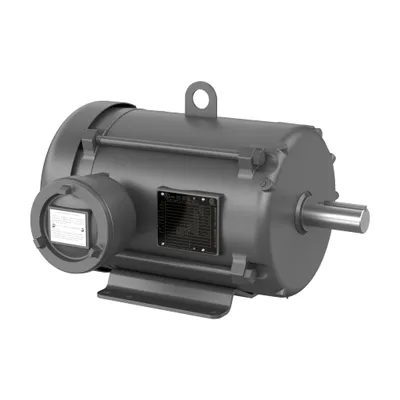

ABB DRX21725T – 7.5//5HP,3520//2935RPM,3PH,60//50HZ
ABB
DRX21725T

7.5//5HP,3520//2935RPM,3PH,60//50HZ

ABB DRX21744T – 7.5HP,1770//1470RPM,3PH,60HZ,213T,X
ABB
DRX21744T

7.5HP,1770//1470RPM,3PH,60HZ,213T,X

ABB DRX21744T-5 – 7.5HP,1770RPM,3PH,60HZ,213T,XPFC,F1
ABB
DRX21744T-5

7.5HP,1770RPM,3PH,60HZ,213T,XPFC,F1

ABB DRX251524T-5 – 15HP,3530RPM,3PH,60HZ,254T,XPFC,F1
ABB
DRX251524T-5

15HP,3530RPM,3PH,60HZ,254T,XPFC,F1

ABB DRX251544T – 15HP,1765//1470RPM,3PH,60HZ,254T,XP
ABB
DRX251544T

15HP,1765//1470RPM,3PH,60HZ,254T,XP

ABB DRX251544T-5 – 15HP,1765RPM,3PH,60HZ,254T,XPFC,F1
ABB
DRX251544T-5

15HP,1765RPM,3PH,60HZ,254T,XPFC,F1

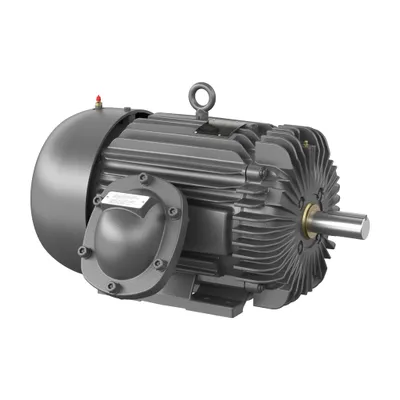

ABB DRX25164T – 10HP,1180//980RPM,3PH,60HZ,256T,XPF
