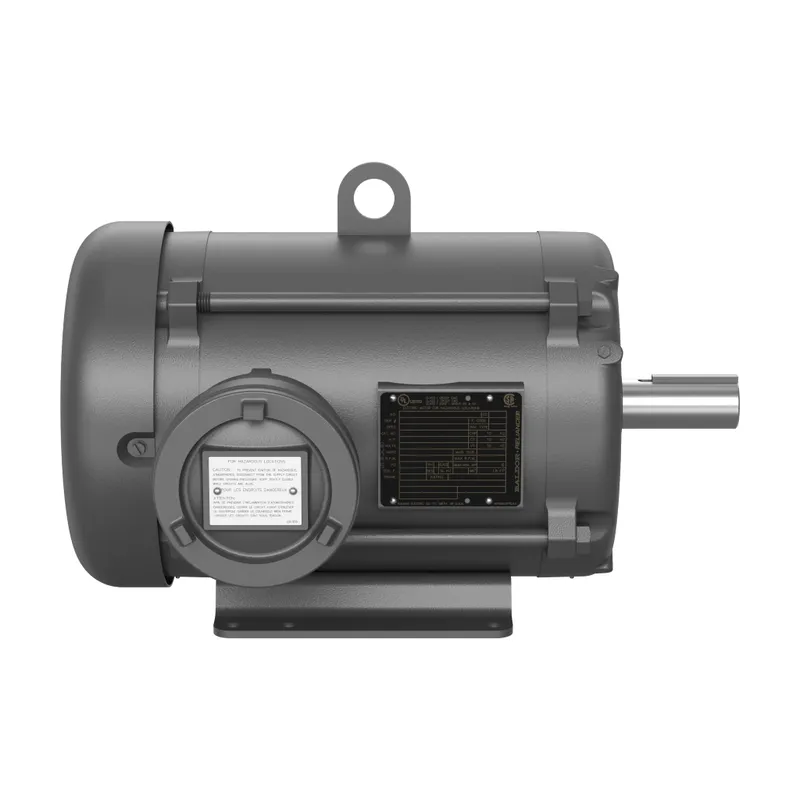

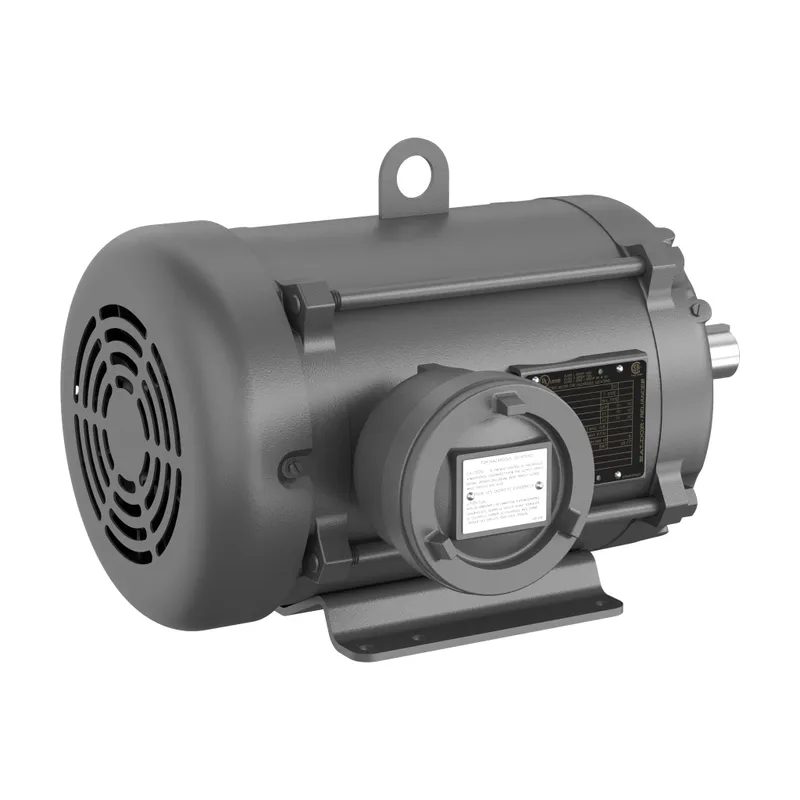

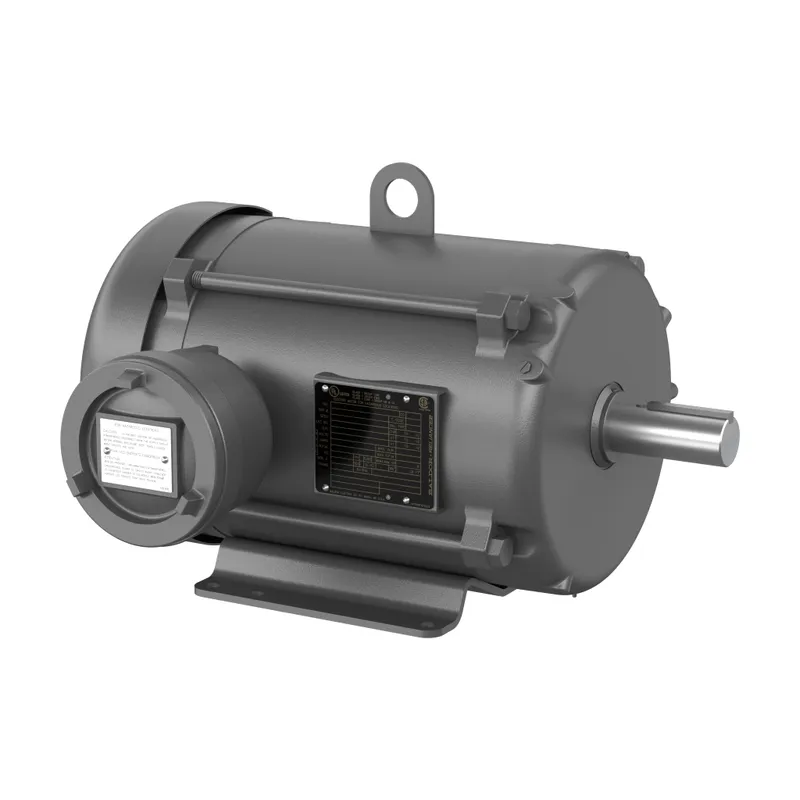

ABB DRX21725T
7.5//5HP,3520//2935RPM,3PH,60//50HZ
- MPN
- DRX21725T
- Category
- XP Drill Rig Duty
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB DRX21725T?
Explosion Proof General Purpos 5 Hp 190 V (DRX21725T)
Specifications
Ordering
| Catalog Number | DRX21725T |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE2, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | single_speed |
| Power Factor | 84 % |
| Rated Efficiency | 89.50 % |
| Service Factor | 1.00 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 3000 r/min, 3600 r/min |
| Output Power | 5 Hp, 7.5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | XPFC |
| Explosion Proof Group Class | Class I, Group C & D, Class II, Group F & G G |
| Frame Material | Steel |
| Motor Frame Size | 213T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.375 in |
| Product Net Weight | 149 lb |
| Product Net Width | 16.5 in |
Certificates and Declarations
| Certification Agency | CSA EEV, UL |
