Home / ABB / XP Drill Rig Duty / ABB DRX251544T-5
ABB

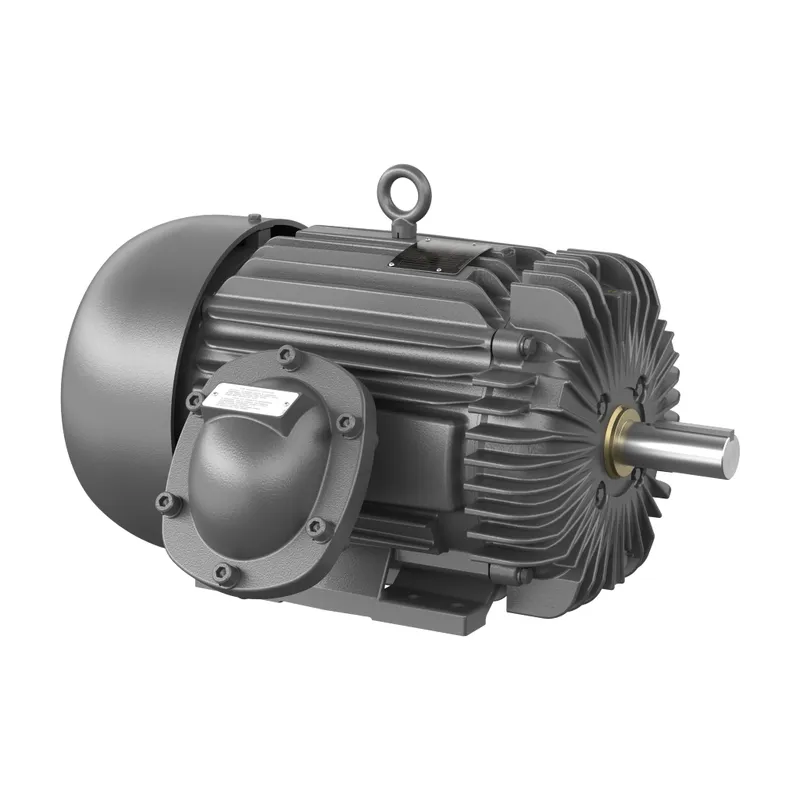

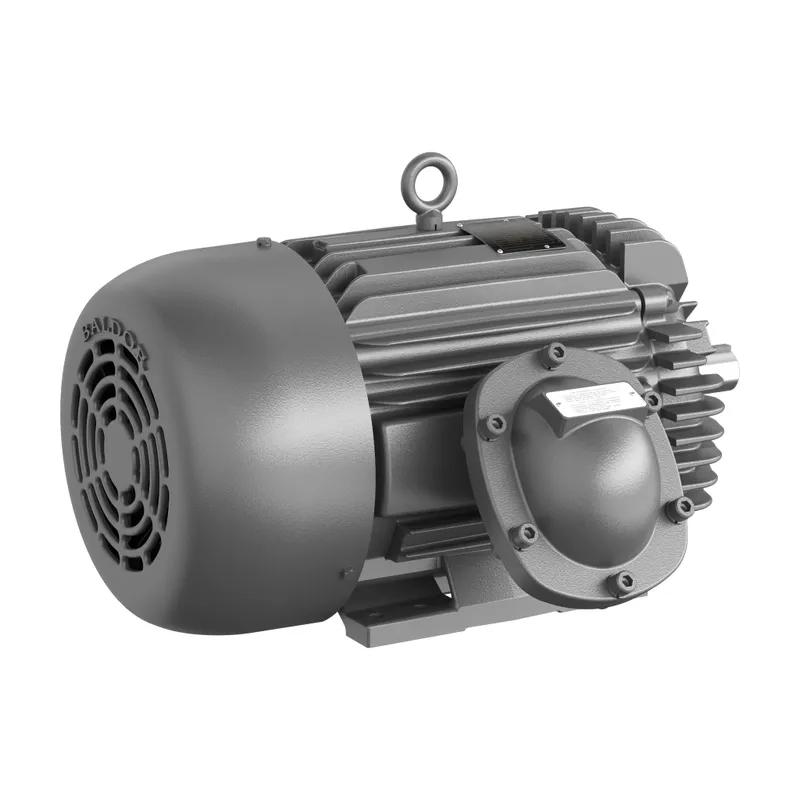

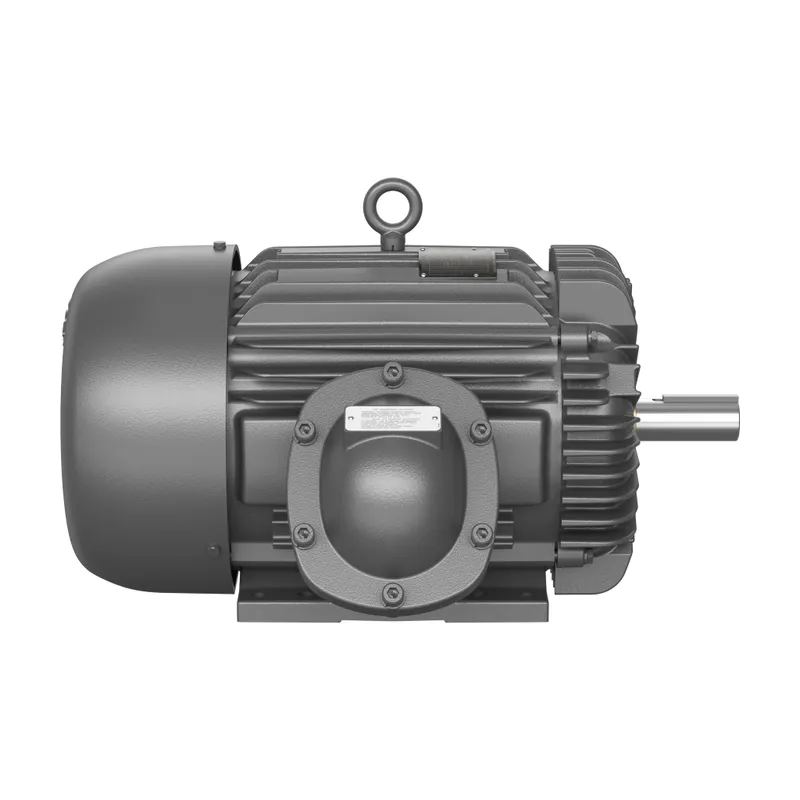

ABB DRX251544T-5

15HP,1765RPM,3PH,60HZ,254T,XPFC,F1

MPN
DRX251544T-5
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX251544T-5?

Explosion Proof Drill Rig Duty 15 Hp 575 V (DRX251544T-5)

Specifications

Ordering

Catalog NumberDRX251544T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency92.40 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power15 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialCast Iron
Motor Frame Size254T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight303 lb
Product Net Width23.75 in
Dimension Diagram09LYF369

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor
